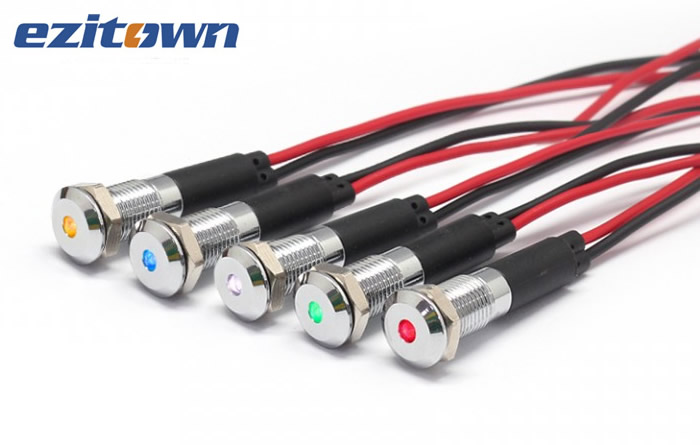

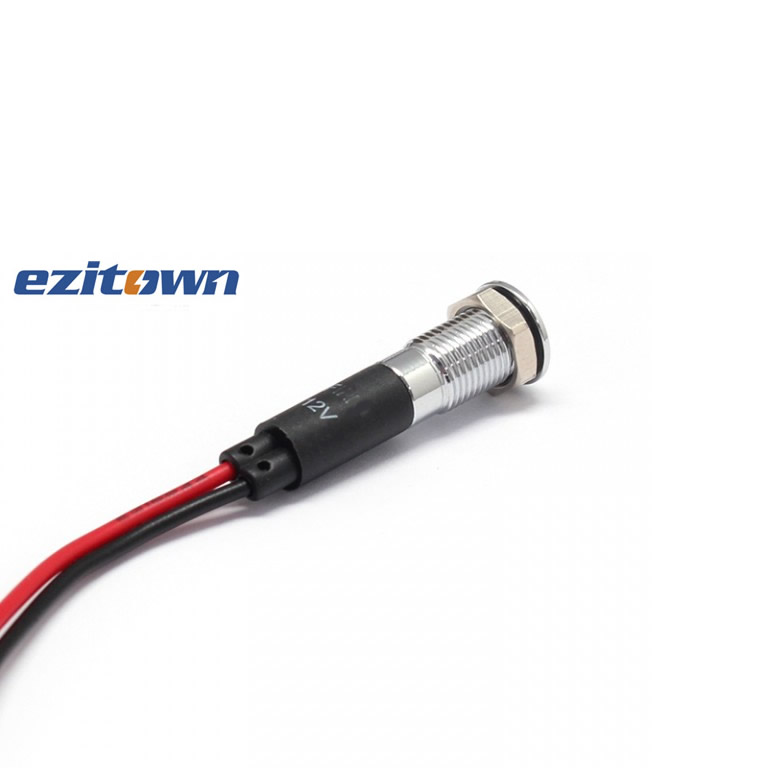

8mm 110v metal blue Meat grinder indicator light

  • Mode:8FW-5
  • Voltage:3V 6V 12V 24V 110V 220V 380V
  • Color:red,blue,green,yellow,white
  • Material:metal
  • Certification:CE CCC ROSH IP66 UL VDE
  • Waterproof grade:IP67
Product Item8FW-5

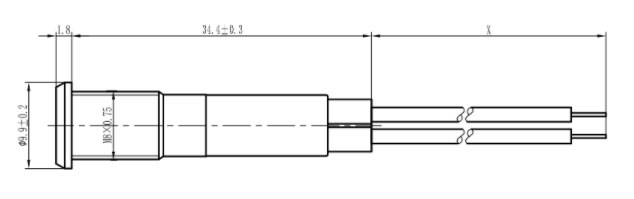

Panel Mount Diameter8mm
Contact WayWith wire
Install Wayscrew terminal
Lamp TypeLED
Rated voltageAC/DC,3V、6V、12V、24V、220V、380V
Lamp Colorred yellow blue green white
Product Designconvex head
Shell Materialbrass plated nickel/stainless steel
Base MaterialPA66 nylon
Terminal Materialbrass
ApplicationsCoffee machine, kitchen equipment, household appliances,    automobiles, medical equipment, industrial equipment etc
Componentnamematerial
lensPC plastic
Metal bodyH59 brass or 204 stainless steel
wahserT10 Cold Rolled Steel
rubber ringSIL silica gel
nutH59 nickel plated brass
housingPA66 nylon
Light sourceLED
ResistorMetal film
CablePTFE AWG22 0.3mm²
plug-inC2680 RoHS brass
itemsparameter
Rated voltage3V-780V DC or AC
rated current20mA
rated power0.2W
Insulation and voltage resistance1800V
working life100000h
electrical life100000
cold-resistant-40℃
heat-resisting80℃
