Ezitown has 6 moulds of magnetic free brass cable gland

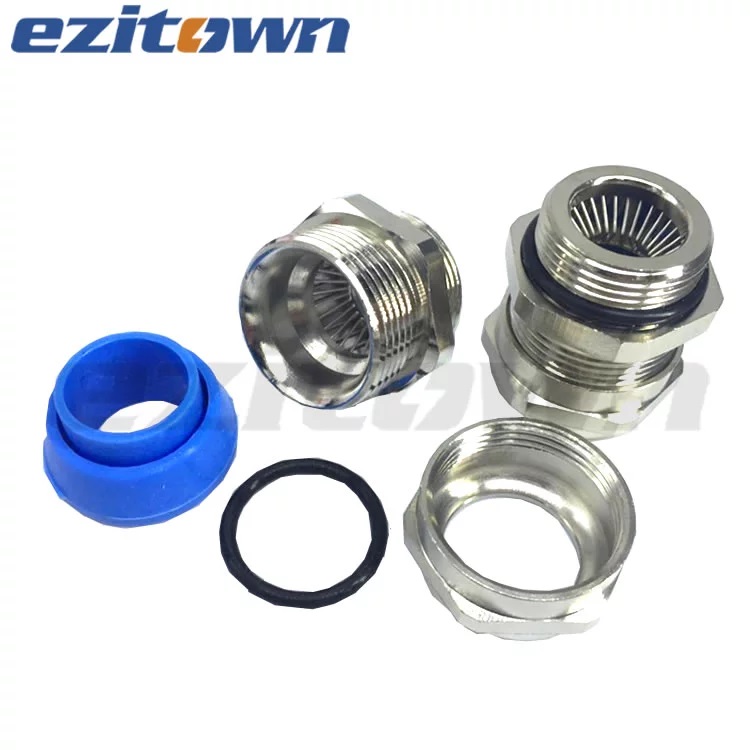

Anti-electromagnetic Metal Cable Gland Metric Thread M Type

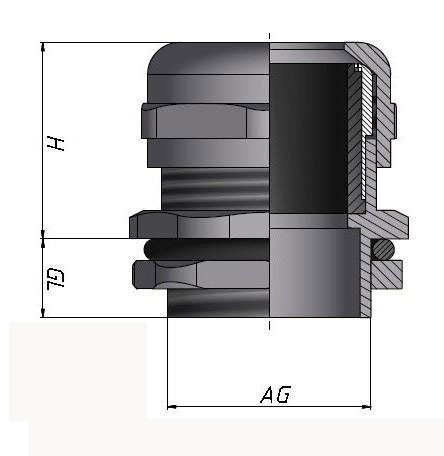

Product no. Thread size

AG

Applicable

cable (mm)

Thread outer

diameter (mm)

Board diameter

(mm)

Thread length

GL (mm)

Joint length

H(mm)

Wrench diameter

(mm)

Packaging

(pieces / bag)

EZ-EMC01 M8*1 4-2 8 8-8.2 5 16 11 200
EZ-EMC02 M10*1 6-3 10 10-10.2 5 16 12 100
EZ-EMC03 M12*1.5 6.5-3 12 12-12.2 7 19 14 100
EZ-EMC04 M14*1.5 8-4 14 14-14.2 7 19 17 100
EZ-EMC05 M16*1.5 8-4 16 16-16.2 8 20 18 100
EZ-EMC06 M18*1.5 10-5 18 18-18.2 8 21 20 100
EZ-EMC07 M20*1.5 12-6 20 20-20.2 8 22 22 100
EZ-EMC08 M22*1.5 14-10 22 22-22.2 8 23 24 100
EZ-EMC09 M24*1.5 14-10 24 24-24.2 9 25 24/27 50
EZ-EMC10 M25*1.5 14-10 25 25-25.2 9 25 24/27 50
EZ-EMC11 M25*1.5 18-13 25 25-25.2 9 27 30 50
EZ-EMC12 M27*1.5 (2) 18-13 27 27-27.2 9 27 30 50
EZ-EMC13 M28*1.5 (2) 18-13 28 28-28.2 9 27 30 50
EZ-EMC14 M30*1.5 (2) 18-13 30 30-30.2 9 29 30/32 50
EZ-EMC15 M32*1.5 (2) 22-15 32 32-32.2 10 29 35 25
EZ-EMC16 M33*1.5 (2) 22-15 33 33-33.2 10 29 35 30
EZ-EMC17 M36*1.5 (2) 25-18 36 36-36.2 10 31 40 20
EZ-EMC18 M37*1.5 (2) 25-18 37 37-37.2 10 31 40 20
EZ-EMC19 M40*1.5 (2) 25-18 40 40-40.2 11 31 40/45 16
EZ-EMC20 M40*1.5 (2) 30-22 40 40-40.2 11 35 45 16
EZ-EMC21 M42*1.5 (2) 30-22 42 42-42.2 11 35 45 16
EZ-EMC22 M47*1.5 (2) 33-25 47 47-47.2 11 37 50 12
EZ-EMC23 M48*1.5 (2) 33-25 48 48-48.2 11 37 50 12
EZ-EMC24 M50*1.5 (2) 38-32 50 50-50.2 12 37 55/57 9
EZ-EMC25 M54*1.5 (2) 38-32 54 54-54.2 12 38 57 9
EZ-EMC26 M56*1.5 (2) 38-32 56 56-56.2 12 38 57/59 9
EZ-EMC27 M60*1.5 (2) 44-37 60 60-60.2 13 38 65 6
EZ-EMC28 M63*1.5 (2) 44-37 63 63-63.2 13 38 65 6
EZ-EMC29 M64*1.5 (2) 44-37 64 64-64.2 13 38 65/68 6
EZ-EMC30 M72*1.5 (2) 52-42 72 72-72.2 15 42 77 4
EZ-EMC31 M75*1.5 (2) 52-42 75 75-75.2 15 42 77 4
EZ-EMC32 M80*1.5 (2) 62-55 80 80-80.2 15 45 90 4
EZ-EMC33 M88*1.5 (2) 70-65 88 88-88.2 15 45 94 2
EZ-EMC34 M100*1.5 (2) 84-78 100 100-100.2 15 45 110 1





Anti-electromagnetic Metal Cable Gland German Thread PG Type

Product no. Thread size

AG

Applicable cable

(mm)

Thread outer

diameter (mm)

Board diameter

(mm)

Thread length

GL(mm)

Joint length

H(mm)

Wrench diameter

(mm)

Packaging

(pieces / bag)

EZ-EMC35 PG7 6.5-3 12.5 12.5-12.7 7 19 14 100
EZ-EMC36 PG9 8-4 15.2 15.2-15.4 8 20 17 100
EZ-EMC37 PG11 10-5 18.6 18.6-18.8 8 21 20 100
EZ-EMC38 PG13.5 12-6 20.4 20.4-20.6 8 22 22 100
EZ-EMC39 PG16 14-10 22.5 22.5-22.7 9 23 24 100
EZ-EMC40 PG19 14-10 25 25-25.2 9 25 24/27 50
EZ-EMC41 PG21 18-13 28.3 28.3-28.5 9 27 30 50
EZ-EMC42 PG25 22-15 32 32-32.2 10 29 35 25
EZ-EMC43 PG29 25-18 37 37-37.2 11 31 40 20
EZ-EMC44 PG36 33-25 47 47-47.2 12 37 50 12
EZ-EMC45 PG42 38-32 54 54-54.2 13 38 57 9
EZ-EMC46 PG48 44-37 59.3 59.3-59.5 14 38 65 6
EZ-EMC47 PG63 52-42 72 72-72.2 15 42 77 4





Anti-electromagnetic Metal Cable Gland Control thread G Type

Product no. Thread size

AG

Applicable cable

(mm)

Thread outer

diameter (mm)

Board diameter

(mm)

Thread length

GL(mm)

Joint length

H(mm)

Wrench diameter

(mm)

Packaging

(pieces / bag)

EZ-EMC48 G1/4 6.5-3 13.1 19 7 19 14 100
EZ-EMC49 G3/8 8-4 16.6 19 8 19 18 100
EZ-EMC50 G1/2 12-6 20.9 14 8 22 22 100
EZ-EMC51 G3/4 18-13 26.4 14 9 25 30 50
EZ-EMC52 G1 25-18 33.2 11 11 29 40 20
EZ-EMC53 G1-1/4 33-25 41.9 11 13 35 50 12
EZ-EMC54 G1-1/2 38-32 47.8 11 14 37 57 9
EZ-EMC55 G2 44-37 59.6 11 14 38 65 6
EZ-EMC56 G2-1/2 52-42 75.1 11 15 38 77 4
EZ-EMC57 G3 70-65 87.8 11 15 48 94 2





Anti-electromagnetic Metal Cable Gland American Thread NPT Series

Product no. Thread size

AG

Applicable cable

(mm)

Thread outer

diameter (mm)

Board diameter

(mm)

Thread length

GL(mm)

Joint length

H(mm)

Wrench diameter

(mm)

Packaging

(pieces / bag)

EZ-EMC58 NPT1/4 6.5-3 13.6 18 7 19 14 100
EZ-EMC59 NPT3/8 8-4 17 18 8 19 18 100
EZ-EMC60 NPT1/2 12-6 21.2 14 8 22 22 100
EZ-EMC61 NPT3/4 18-13 26.5 14 9 25 30 50
EZ-EMC62 NPT1 25-18 33.2 11.5 11 29 40 20
EZ-EMC63 NPT1-1/4 33-25 41.9 11.5 13 35 50 12
EZ-EMC64 NPT1-1/2 38-32 48 11.5 14 37 57 9
EZ-EMC65 NPT2 44-37 60 11.5 14 38 65 6
EZ-EMC66 NPT2-1/2 52-42 72.6 8 15 38 77 4
EZ-EMC67 NPT3 70-65 88.6 8 15 45 94 2

Use the similar function as pflitsch cable gland,earth wire connectable cable gland.
