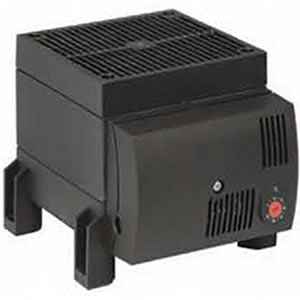

Fan Heater Of Compact High-performance Semiconductor CS 030

Item : CS 030

▋ Compact design
▋ High heating performance
▋ Double insulated
▋ Integrated thermostat (optional)

Fan Heater

The compact high performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric / electronic components.

The plastic enclosure provides double insulation and acts as protection against contact.

The fan heater is available with optional integrated thermostat for temperature control.

The CS 030 was designed as a stationary unit for the bottom of the enclosure.

For wall fixing the fan heater CS 130 is recommended.

Technical Data
Heating element PTC resistor – temperature limiting
Temperature safety cut-out to protect against overheating in case of fan failure
Axial fan, ball bearing airflow 160m3/h, free flow
service life 50,000h at 25℃ (77°F)

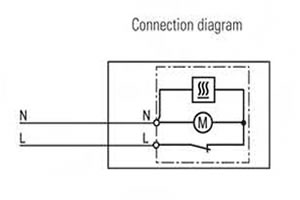

Connection 2-pole max, 2.5mm2, clamping screw with strain relief,
torque 0.8Nm max.
Casing plastic according to UL94 V-0, black
Mounting screw fixing (M5)
Fitting position horizontal

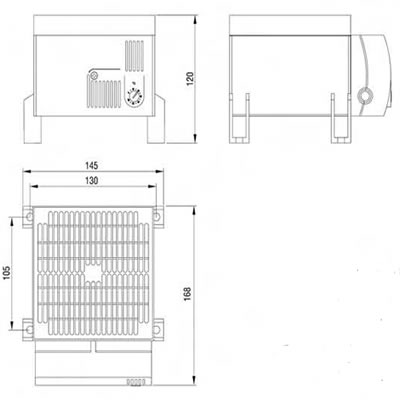

Dimensions 168×145×120mm
Weight approx. 1.20kg
Operating / Storage temperature -45 to +70℃ (-49 to +158°F)
Protection type / Protection class IP20 / Ⅱ(double insulated)

Art. No. Model Operating voltage Heating capacity* Inrush current max. Setting range
03060.0-00 Fan Heater with thermostat 230VAC, 50/60Hz 1,200W 13A 0 to 60℃
03060.0-01 Fan Heater without thermostat 230VAC, 50/60Hz 1,200W 13A –
03060.9-00 Fan Heater with thermostat 120VAC, 50/60Hz 1,200W 16A +32 to +140°F
03060.9-01 Fan Heater without thermostat 120VAC, 50/60Hz 1,200W 16A –

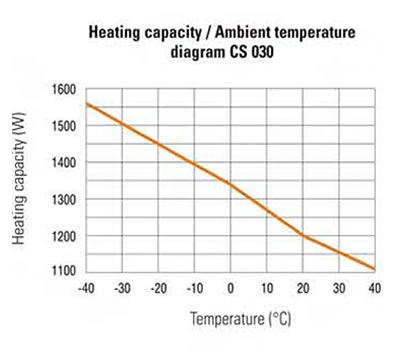

* at 20℃ (68°F) ambient temperature

fan-heater-of-compact-high-performance-semiconductor-cs-030-specification-3 fan-heater-of-compact-high-performance-semiconductor-cs-030-specification-2
