Ezitown Din Rail Mounting On Off Delay Timer Relay JSZ8
JSZ8 AC220V mini time off delay relay
| Relay type | JSZ8 | ||
| Voltage | DC12~48V, AC12V~380V | ||
| Delay range | 01, 02, 03, 04, 05 | ||
| Operating type | A: On delay 2C C: Instant F: Off delay
K: Off delay R: Circle delay G: DelayV: Wide range |
||
| Relay type | Y: Star delta delay X: Thyristor output | ||
| Specification | |||
| Voltage | AC/DC12~48V, AC24V~380V 50Hz/60Hz | ||
| Power Expend | DC1.0W, AC1.0VA | ||
| Control Output | 5A 220VAC | ||
| Insulation Resistance | DC500V,100mΩ | ||
| Dielectric Strength | BCC1500VAC, BOC1000VAC | ||
| Operating Temperature | -10°C~50°C | ||
| Humidity | 35%~85% | ||
| Life | Mech:106,Elec:105 | ||
| Weight | ≈100g | ||
| Time Range | |||
| ASZ8-01 | 0.1-1S/1M | ||
| ASZ8-02 | 0.5-5S/5M | ||
| ASZ8-03 | 1.0-10S/10M | ||
| ASZ8-04 | 3.0-30S/30M | ||
| ASZ8-05 | 6.0-60S/60M | ||

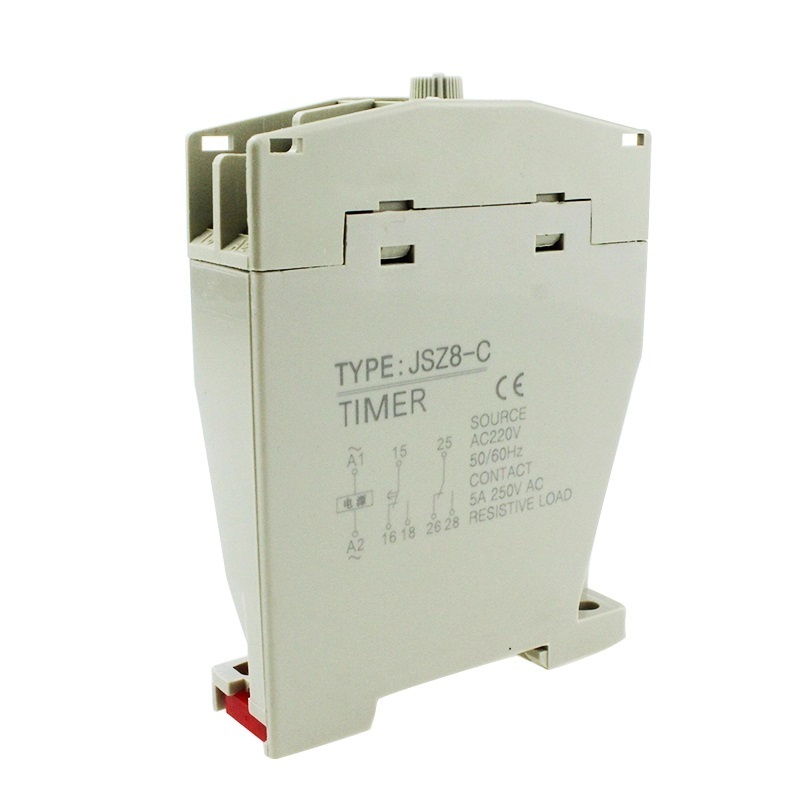

Ezitown Din Rail Mounting On Off Delay Timer Relay JSZ8

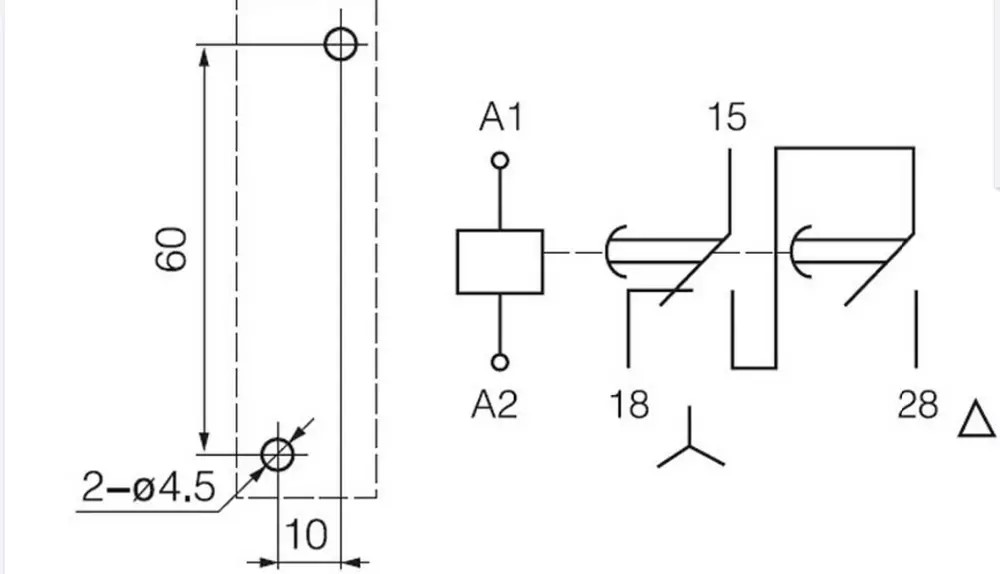

din rail mounting timer jsz8 relay fix drawing

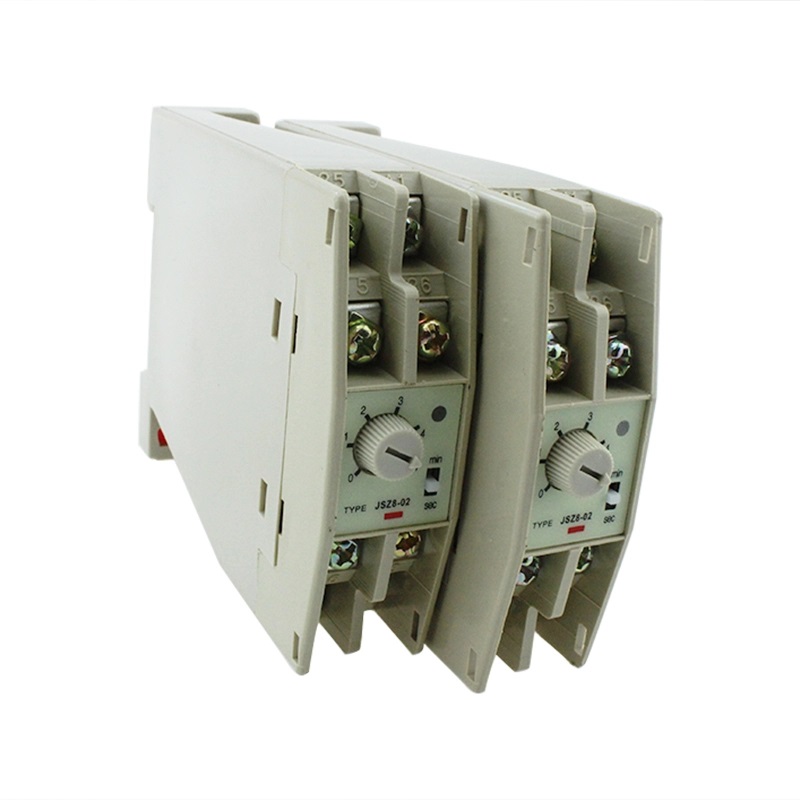

jsz8 timer relay din rail mounting timer
