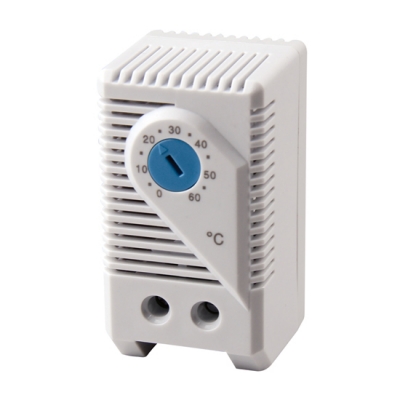

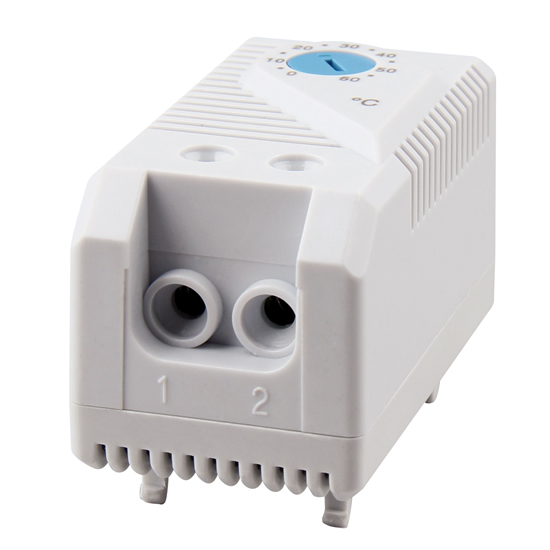

Small Compact Thermostat Din Rail mount KTS 011

Small Compact Thermostat

Item : KTS 011

Small Compact Thermostat Simple to mount KTS 011

▋ Large setting range

▋ Small size

▋ Simple to mount

▋ High switching performance

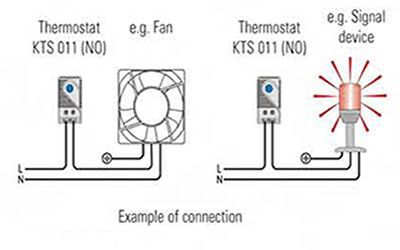

KTS 011: Small Compact Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers or for switching signal devised when Small Compact Thermostat limit has been exceeded.

Application

Small Compact Thermostat

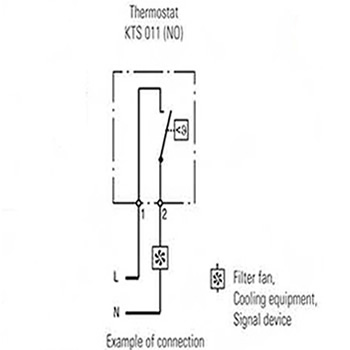

KTS 011: Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded.

Specification

Small Compact Thermostat Technical Data

Switch temperature difference	7K (± 4K tolerance)
Sensor element	thermostatic bimetal
Contact type	snap-action contact
Contact resistance	< 10m
Service life	> 100,000 cycles
Max. Switching capacity	250VAC, 10 (2) A
	120VAC, 15 (2) A
	DC 30W
EMC	acc. To EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection	2-pole terminal, clamping torque 0.5Nm max.:
	rigid wire 2.5mm²
	stranded wire (with wire end ferrule) 1.5mm²

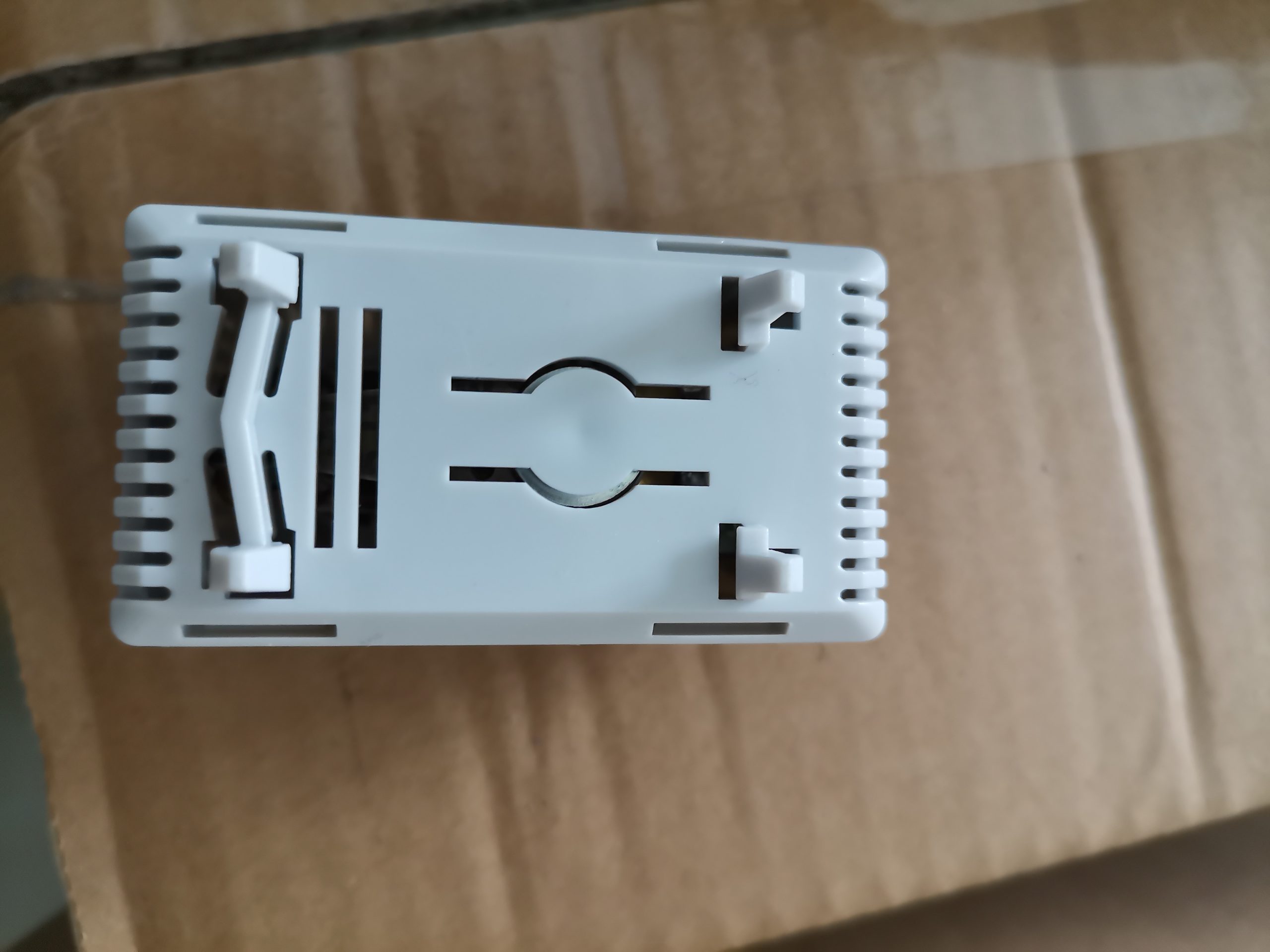

Mounting	clip for 35mm DIN rail, EN50022
	(or for exit filter EF 118 Series)
Casing	plastic according to UL94 V-0, light grey

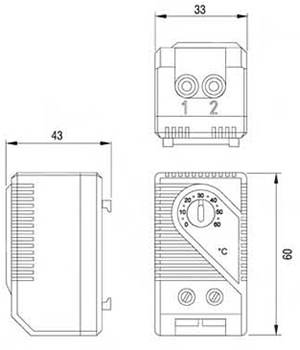

Dimensions	60 x 33 x 43mm
Weight	approx. 40g
Fitting position	variable
Operating / Storage temperature	-45 to +80°C (-49 to +176°F)
Protection type	IP20

Setting range	Art. No.Contact Breaker (NC)	Art. No. Contact Maker (NO)	Approvals
0 to +60°C	01140.0-00	01141.0-00	VDE
-10 to +50°C	01142.0-00	01143.0-00	VDE
+20 to +80°C	01159.0-00	01158.0-00	VDE
+32 to +140°F	01140.9-00	01141.9-00	UL File No. E164102
+14 to +122°F	01142.9-00	01143.9-00	UL File No. E164102
0 to +60°C	01146.9-00	01147.9-00	UL File No. E164102
