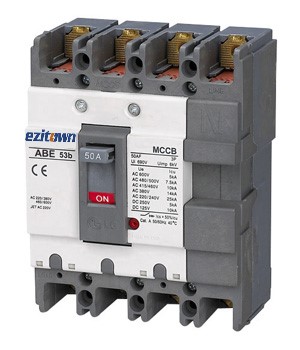

Thermal magnetic circuit breaker ABS ABE LS Series 103b 100A mccb

Ezitown ABS ABE 103b 100A mccb electric Moulded-case of Intelligent Electronic Adiustable Circuit Breaker types

Ezitown AB Series 103b 100A mccb electric Moulded-case of Intelligent Electronic Adiustable Circuit Breaker types

Rated insulation voltage 1000v for the allocation of electrical energy and protection lines to avoid overload circuit undervoltage of the small size of the small section of the short arc of the new molded case circuit breaker

Features：Avoid circuit power overload, open circuit, undervoltage
Working environment:Leakage current protection, overcurrent protection, open circuit short delay, open circuit transient, overvoltage protection, undervoltage protection

Mccb circuit breakers, molded case circuit breakers, new circuit breakers

MCCB circuit breaker LG LS model mccb ABE 103b/3P 100A molded case circuit breaker (LG MCCB circuit breaker) is suitable for industrial or commercial power and lighting with AC50/ 60Hz, rated working voltage up to AC600V/DC250V, rated current up to 630A. It features normal structure reliable performance, high breaking capacity and is used for power distribution and protecting the circuit and electrical equipment against overload and short circuits. It complies with the standard of IEC 60947-2. mccb smart breaker mccb mcb elcb price list mccb schneider mccb 300 amp circuit breaker mcb and mccb

1. Application

MCCB circuit breaker schneider mccb ABE 103b/3P 100A moulded case circuit breaker is suitable for industrial or commercial power and lighting with AC50/ 60Hz, rated working voltage up to AC600V/DC250V, rated current up to 630A. It’s a kind of economical breaker with the characteristics of stable and reliable function, beautiful appearance, small size and long life. It can be used for conversion of lines and infrequent starting motors. It can also be attached to install the accessories which have protection function for avoiding loss-voltage, under-voltage. The product can install a connection line with front board and back board, it also can equip hand-operating apparatus or motor-operating apparatus to control in a remote distance. The types are ABE 52b, 53b, 54b, 102b, 103b, 104b, 203b, 403b etc.

2. Features:

A. We use molded material with excellent flame-retardant, good insulation performance and high-temperature resistance characters.

B. We adopt thick galvanized sheet copper, it avoids the defects of conductive thread and easily slip teeth.

C. The new design structure is aesthetic and compact size, good appearance and is effective.

D. Advanced processing technology.

3. Technical Data:

A. Product name: MCCB (Molded Case Circuit Breaker)

B. Type: ABE 103b

C. Rated current: 6-100A

D. Number of poles: 3P

tomzn,schneider electric,circuit breaker,ls mccb,schneider electric in china,terasaki circuit breaker,mccb,schneider electrical mccb circuit breaker,electric breaker usa schneider,mccb hyundai hgm,1000a 4p circuit breaker,chint breaker 3p,schneider nsx400n motorized breaker 3p 400a,mccb hgm,dc circuit breaker,disjoncteur schneider 16a dc,schneider electric price list,shunt trip circuit breaker,mec circuit breaker,mccb dc,schneider elcb,mitsubishi breaker,chint mccb,250amp mccb,mcb schneider,schneider,schneider electric,price list mccb schneider,tomzn,schneider,schneider circuit breaker,schneider electric in china,schneider mcb,schneider mccb,schneider electrical mccb circuit breaker,mcb schneider,schneider electrical mccb,mec mccb,schneider breaker,merlin gerin,circuit breakers siemens,ls mccb,belkin,mccb with shunt trip coil,schneider 125a 4p mccb,terasaki circuit breaker,schneider mcb circuit breaker,250amp mccb,mccb,standard mccb ratings,schneider mccb 400a,breaker schneider,siemens circuit breakers,mccb schneider,circuit breaker schneider,metasol circuit breaker,schneider mccb 250a,schneider mccb 250a,merlin gerin circuit breaker,chint circuit breaker,chint mccb,lock mccb,mccb symbol electrical,circuit breaker,schneider motor protective circuit breaker,mitsubishi breaker,schneider elcb,mcb and mccb image,chint breaker,schneider breakers prices,breaker trip coil,ls circuit breaker,tpn mccb,mccb symbol,mccb dc,schneider breaker dc,1000 amp circuit breaker mccb,smart breaker mccb mcb elcb,schneider electric mcb circuit breaker c16,elcb schneider,100a tpn mccb,schneider electric elcb,schneider c32 mcb breaker,m611 motor protection circuit breaker,andeli circuit breaker,siemens mccb,schneider elcb circuit breaker,disjoncteur schneider 125a,dc 2p 600v circuit breaker,schneider electric circuit breaker,terasaki mccb,63 amp mccb,metasol mccb,molded case circuit breaker,60amp circuit breaker mccb,schneider 250a mccb,terasaki breaker,mccb 150 amp circuit breaker,breaker 2p schneider,mitsubishi mccb,disjoncteur schneider,schneider mccb 4p 100a,schneider interrupteur electric,mccb price list,integrated circuit breaker,schneider mechanical interlock mccb,schneider c20 mcb breaker,schneider electric miniature circuit breaker,mccb 300 amp circuit breaker,schneider electric xld breaker circuit

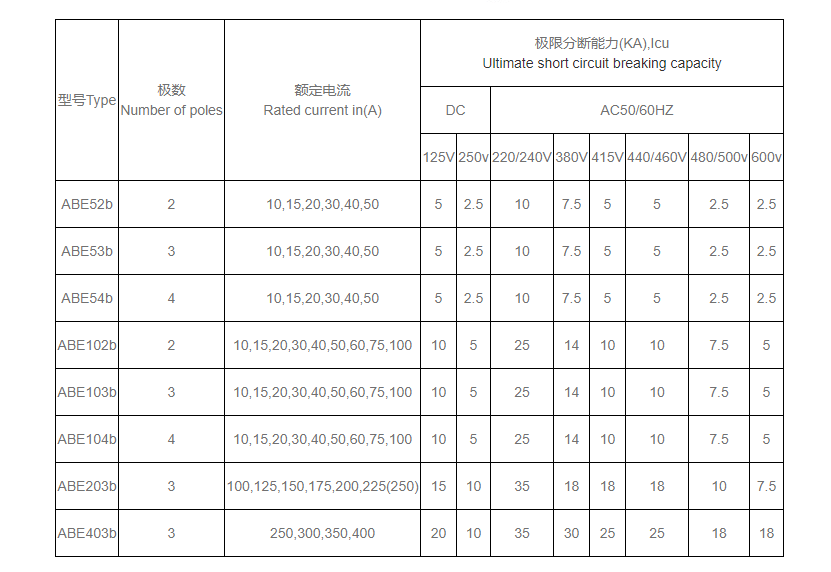

Type	Poles	Rated Current In (A)	Ultimate Short Circuit Breaking Capacity(kA), Icu								Uimp(kV) Rated Impulse Withstand Voltage
			Ue(DC)		Ue(AC 50/60Hz)					Ui(V)
			125V	250V	220/240V	380V	415/460V	480/500V	600V

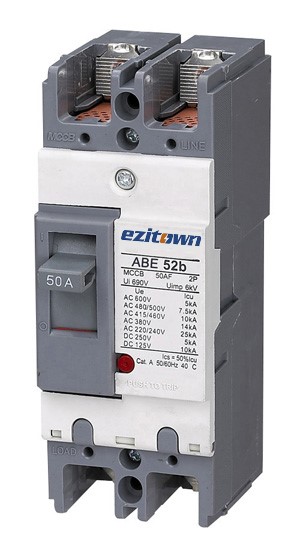

ABE 52b	2P	10,15,20,30,40,50	5	2.5	10	7.5	5	2.5	2.5	690	6

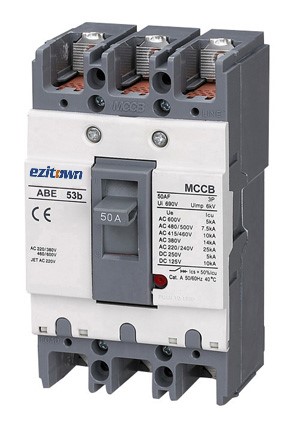

ABE 53b	3P	10,15,20,30,40,50	5	2.5	10	7.5	5	2.5	2.5	690	6
ABE 54b	4P	10,15,20,30,40,50	5	2.5	10	7.5	5	2.5	2.5	690	6

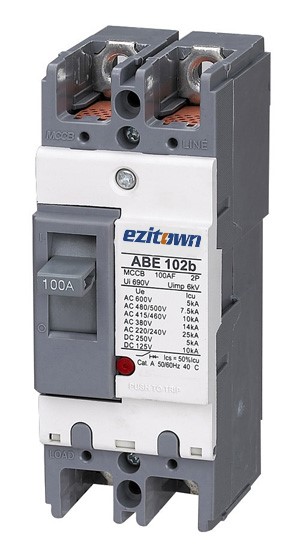

ABE 102b	2P	10,15,20,30,40,50, 60,75,100	10	5	25	14	10	7.5	5	690	6

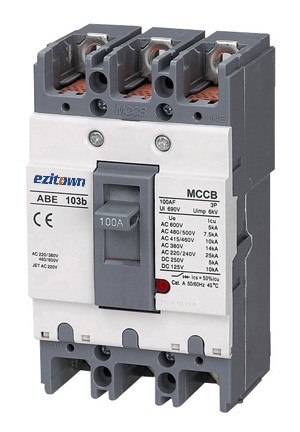

ABE 103b	3P	10,15,20,30,40,50, 60,75,100	10	5	25	14	10	7.5	5	690	6
ABE 104b	4P	10,15,20,30,40,50, 60,75,100	10	5	25	14	10	7.5	5	690	6

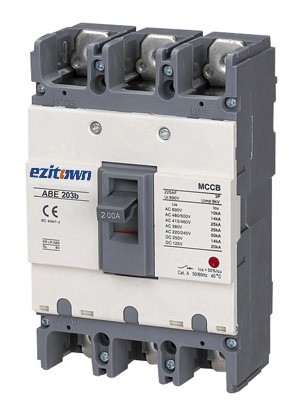

ABE 203b	3P	100,125,150,175,200,225,250	15	10	35	18	18	10	7.5	690	6

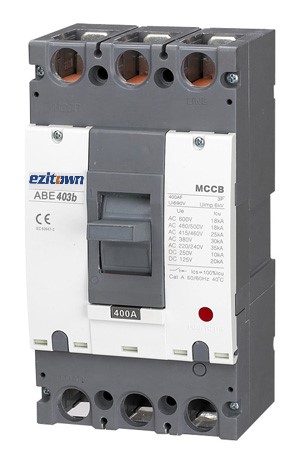

ABE 403b	3P	250,300,350,400	20	10	35	30	25	18	18	690	6
