FEK-120Y PNEUMATIC TYPE TERMINAL CRIMPING MACHINE  for 0.08-120mm²

Item : FEK-120Y

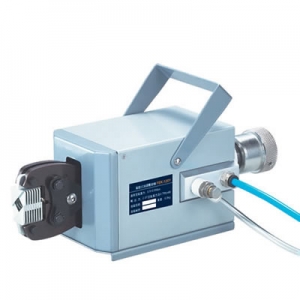

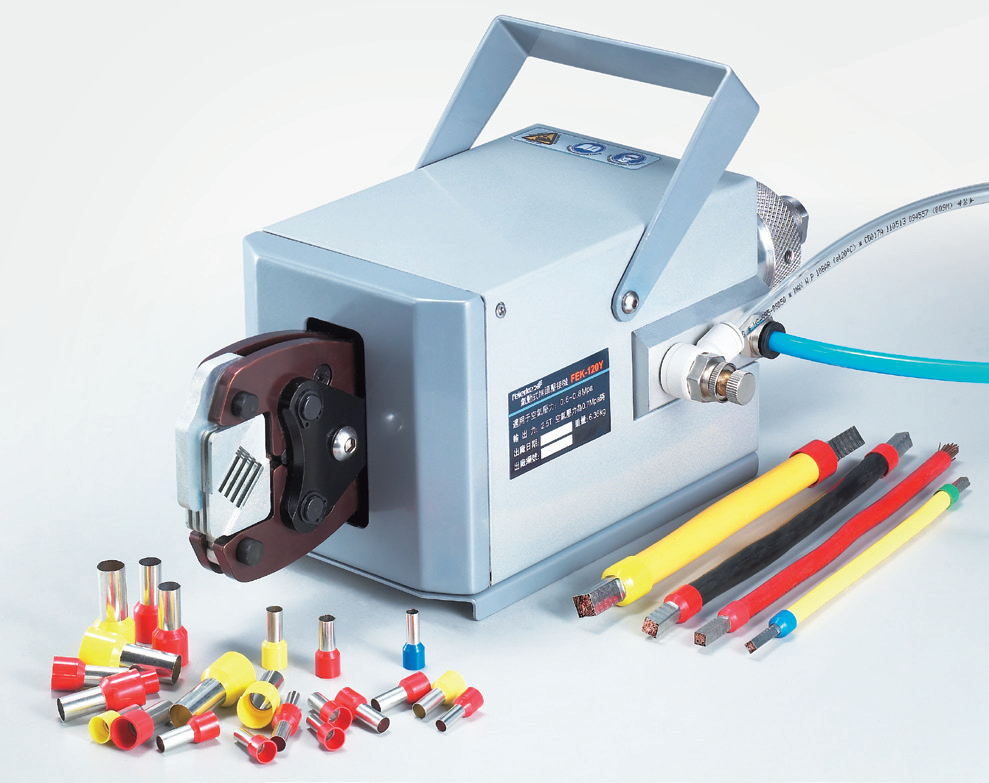

FEK-120Y Pneumatic Crimping Machine

■ The crimping dies of front feed or side feed can be selected
■ Operated by the foot switch
■ Much more reliable, stable and high efficiency
■ Compact, light

              CRIMPING TOOL PARAMETERS

Crimping range                                               0.08-120mm²

Air pressure range                                             0.5-0.7MPa

Output                                                                                2.0T

Overall dimension                                   286×125×165mm

Weight                                                                             4.8Kg

crimping dies for crimper 60EM

crimping dies for a crimper, pneumatic crimping machine

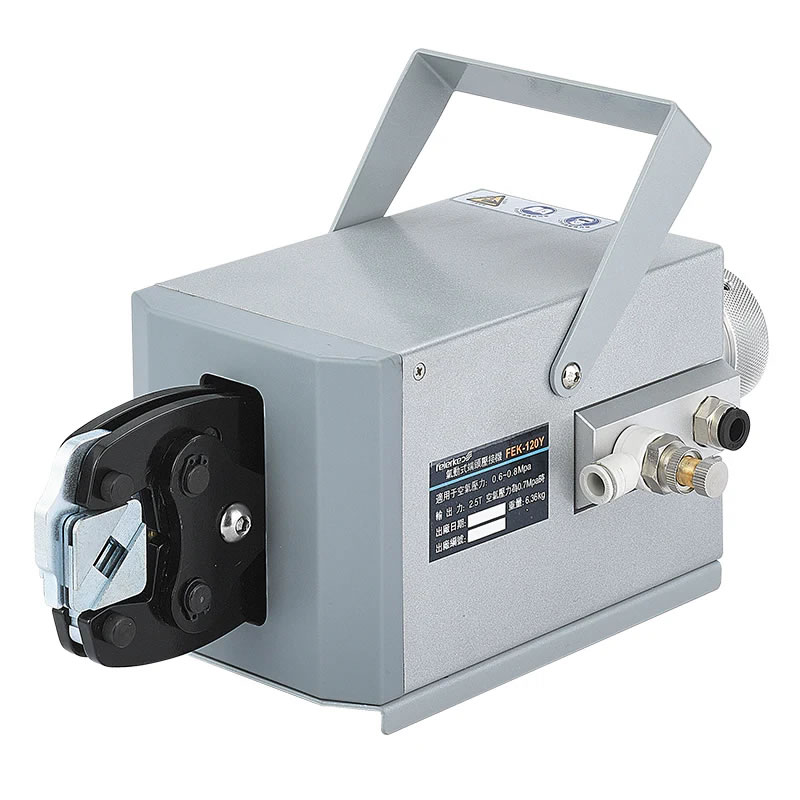

FEK-120Y_1 crimping machines

FEK-120Y_1 pneumatic crimping machines

A **pneumatic crimping machine** is a tool that uses **compressed air** as its power source to crimp (press and deform) materials together, usually for making strong, reliable connections in wires, cables, or metal fittings.

### 🔧 Key Features:

* **Power source:** Operates on compressed air, eliminating the need for manual force.
* **Consistent crimping force:** Ensures uniform and reliable crimps compared to manual tools.
* **High efficiency:** Faster operation, suitable for high-volume production.
* **Interchangeable dies:** Different die sets can be installed to crimp various terminals, connectors, or fittings.
* **Safety features:** Often equipped with two-hand start or protective covers to prevent accidental injury.

### 📍 Common Applications:

1. **Electrical industry** – crimping wire terminals, connectors, and cable lugs.
2. **Automotive & aerospace** – harness assembly and connector crimping.
3. **Hydraulics & pneumatics** – hose fittings and coupling crimps.
4. **Electronics** – small precision crimps for PCB connectors.

### ✅ Advantages:

* Reduces operator fatigue compared to manual crimpers.
* High precision and repeatability.
* Handles larger wires or connectors that would be too difficult to crimp manually.

### ⚠️ Considerations:

* Requires an air compressor to operate.
* Needs regular maintenance (lubrication, air filter cleaning).
* Higher upfront cost than manual crimping tools.
