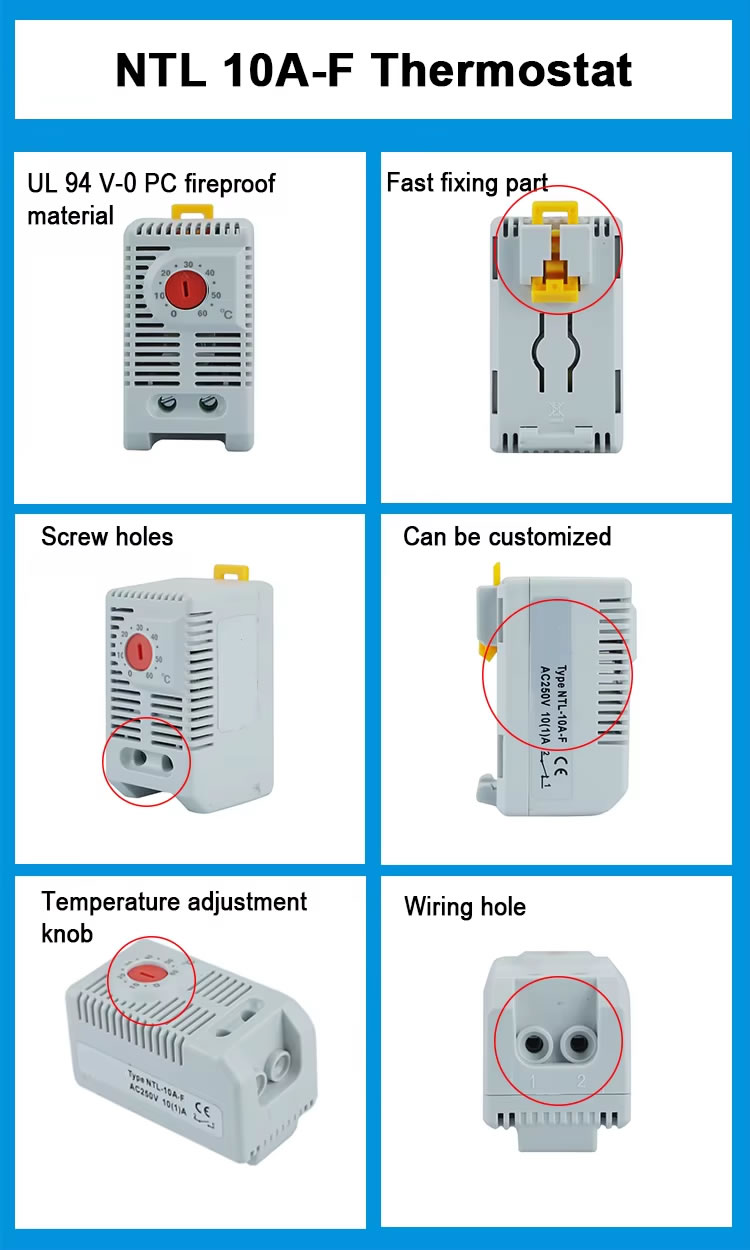

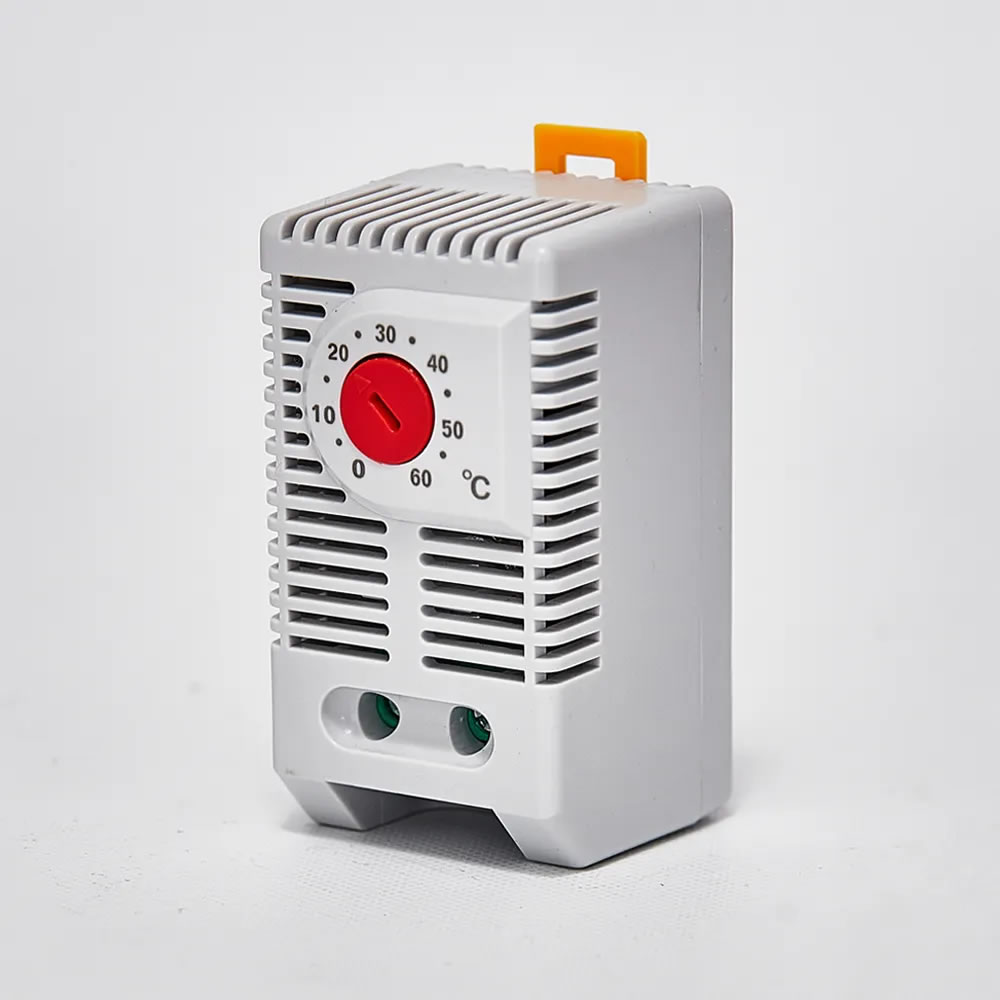

Small Size Compact Thermostat NTL-10A

Item : NTL-10A

▋  Large setting range

▋  Small size

▋  Simple to mount

▋  High switching performance

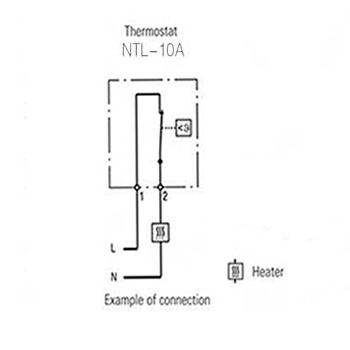

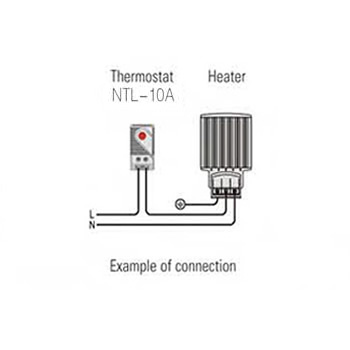

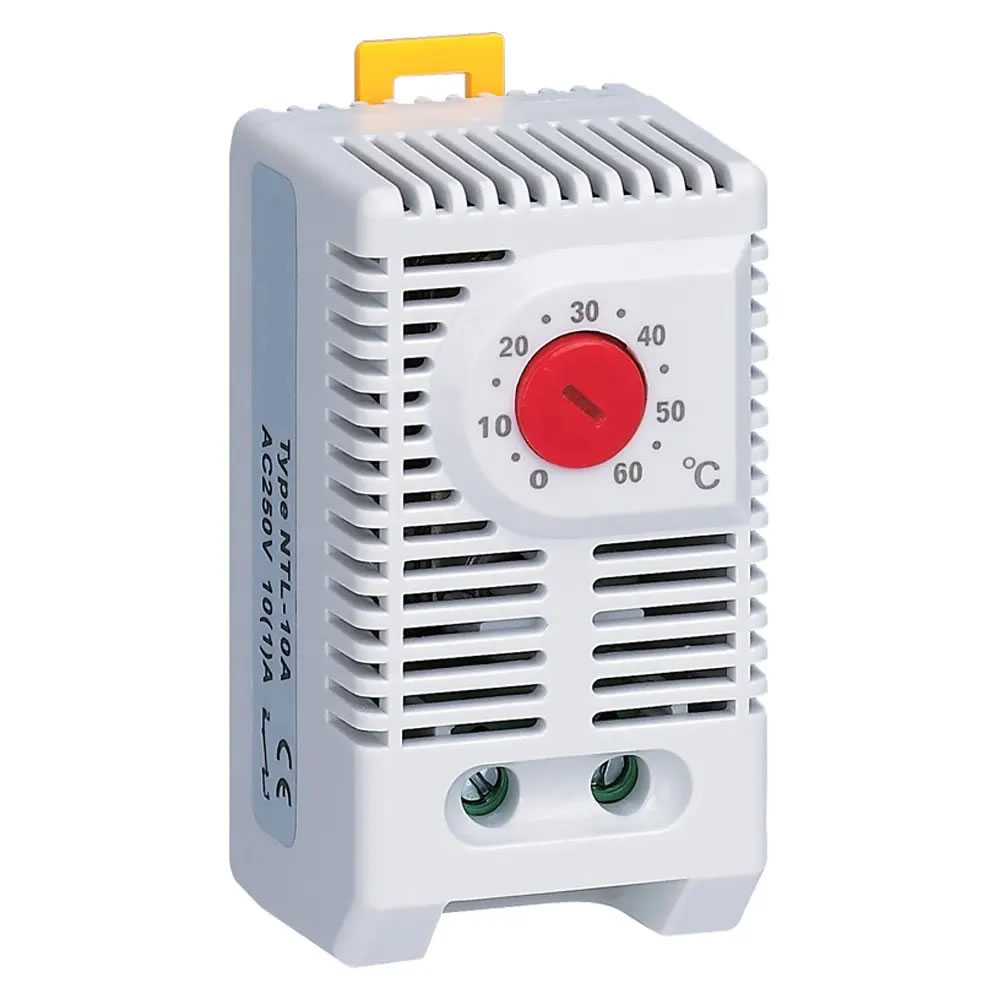

NTL-10A: Compact Thermostat (normally closed); contact breaker for regulating heaters.

Small Size Compact Thermostat

NTL-10A: Compact Thermostat (normally closed); contact breaker for regulating heaters.

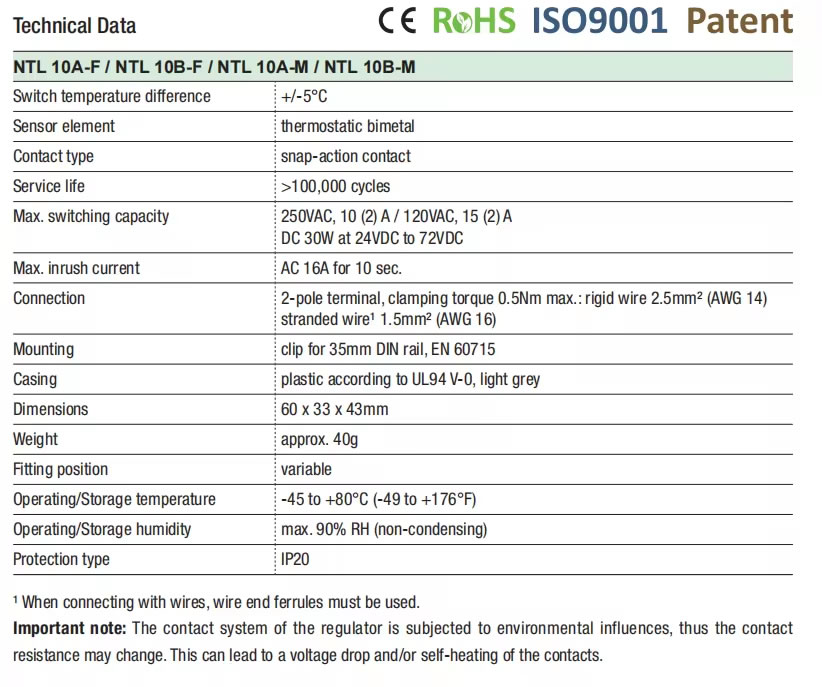

Technical Data

Switch temperature difference 7K (± 4K tolerance)
Sensor element thermostatic bimetal
Contact type snap-action contact
Contact resistance < 10m
Service life > 100,000 cycles
Max. Switching capacity 250VAC, 10 (2) A
　 120VAC, 15 (2) A
DC 30W
EMC acc. To EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection 2-pole terminal, clamping torque 0.5Nm max.:
　 rigid wire 2.5mm²
stranded wire (with wire end ferrule) 1.5mm²

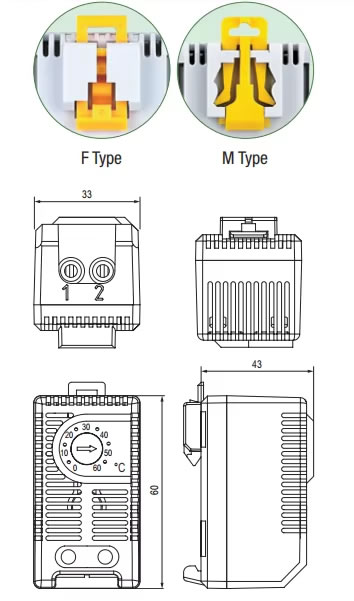

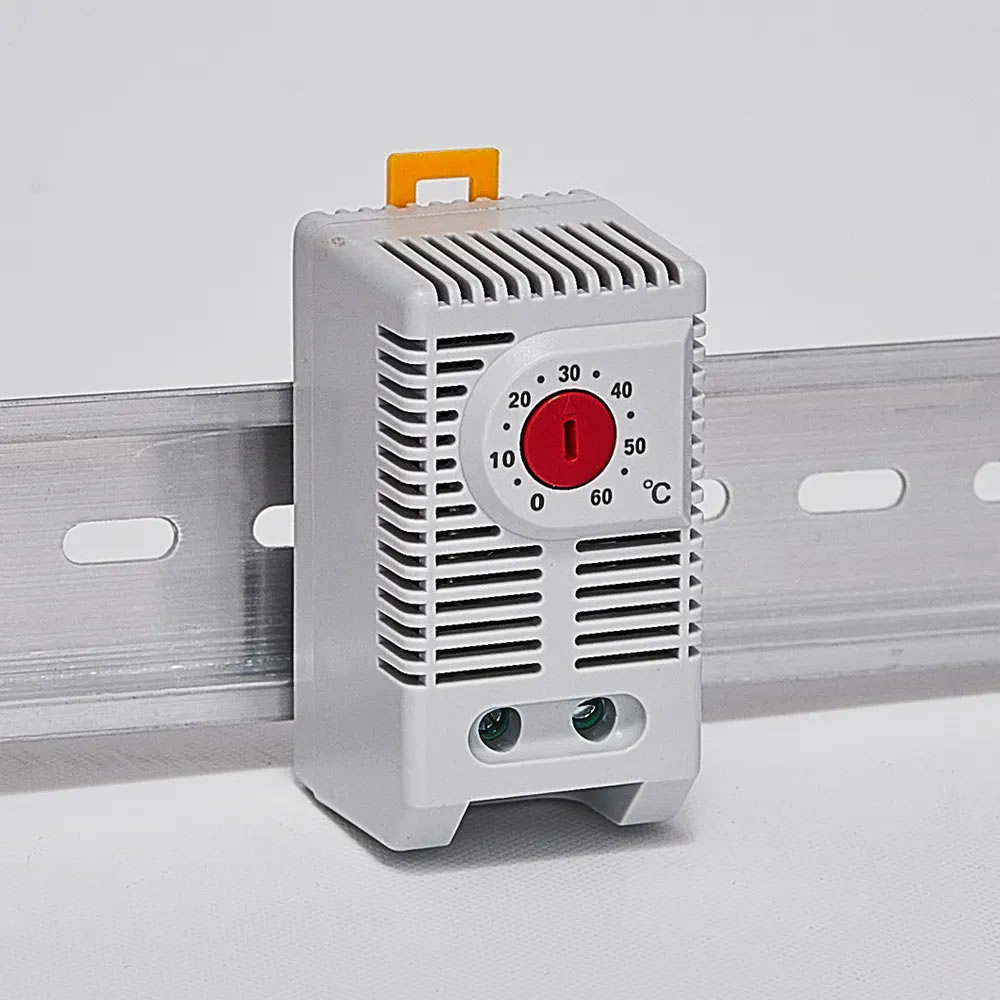

Mounting clip for 35mm DIN rail, EN50022
(or for exit filter EF 118 Series)
Casing plastic according to UL94 V-0, light grey

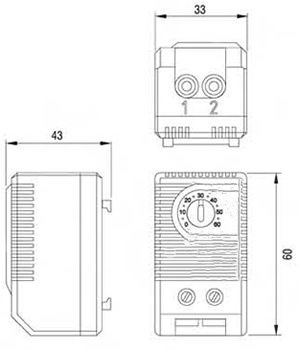

Dimensions 60 x 33 x 43mm
Weight approx. 40g
Fitting position variable
Operating / Storage temperature -45 to +80°C (-49 to +176°F)
Protection type IP20

　
  Setting range Art. No.Contact Breaker (NC) Art. No. Contact Maker (NO) Approvals
  0 to +60°C 01140.0-00 01141.0-00 VDE
  -10 to +50°C 01142.0-00 01143.0-00 VDE
  +20 to +80°C 01159.0-00 01158.0-00 VDE
  +32 to +140°F  01140.9-00 01141.9-00 UL File No. E164102
  +14 to +122°F 01142.9-00  01143.9-00 UL File No. E164102
  0 to +60°C 01146.9-00 01147.9-00 UL File No. E164102



* Large setting range
* Small size
* Simple to mount
* High switching performance

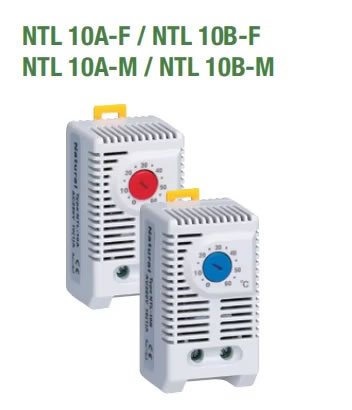

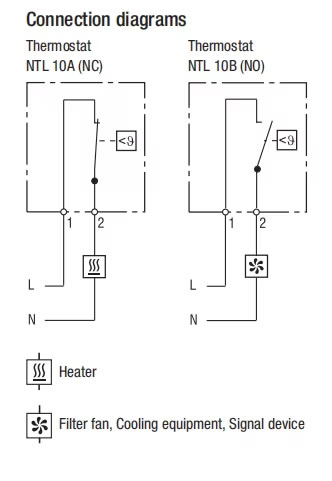

NTL 10A-F / NTL 10A-M: Thermostat (normally closed); contact breaker for regulating heaters. The contact opens when temperature is rising.

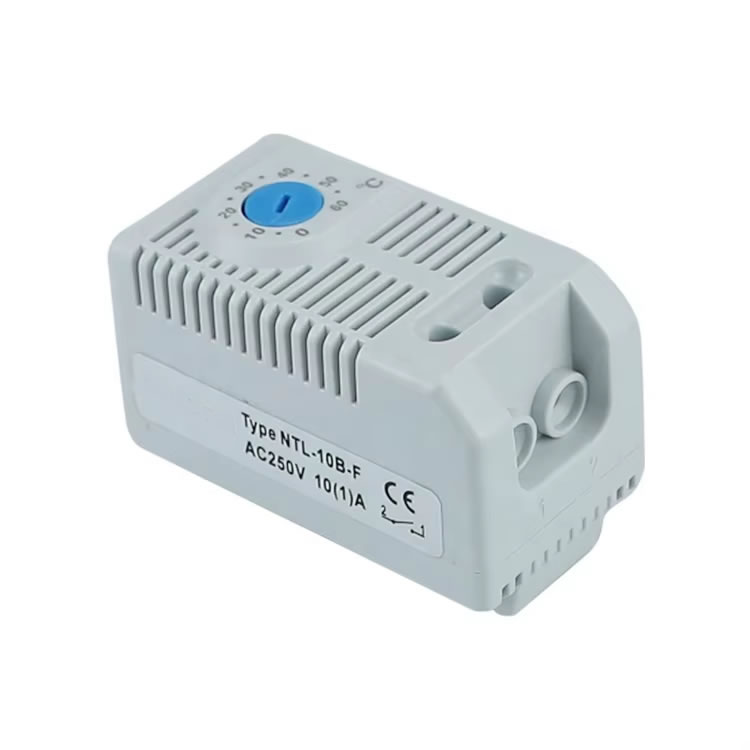

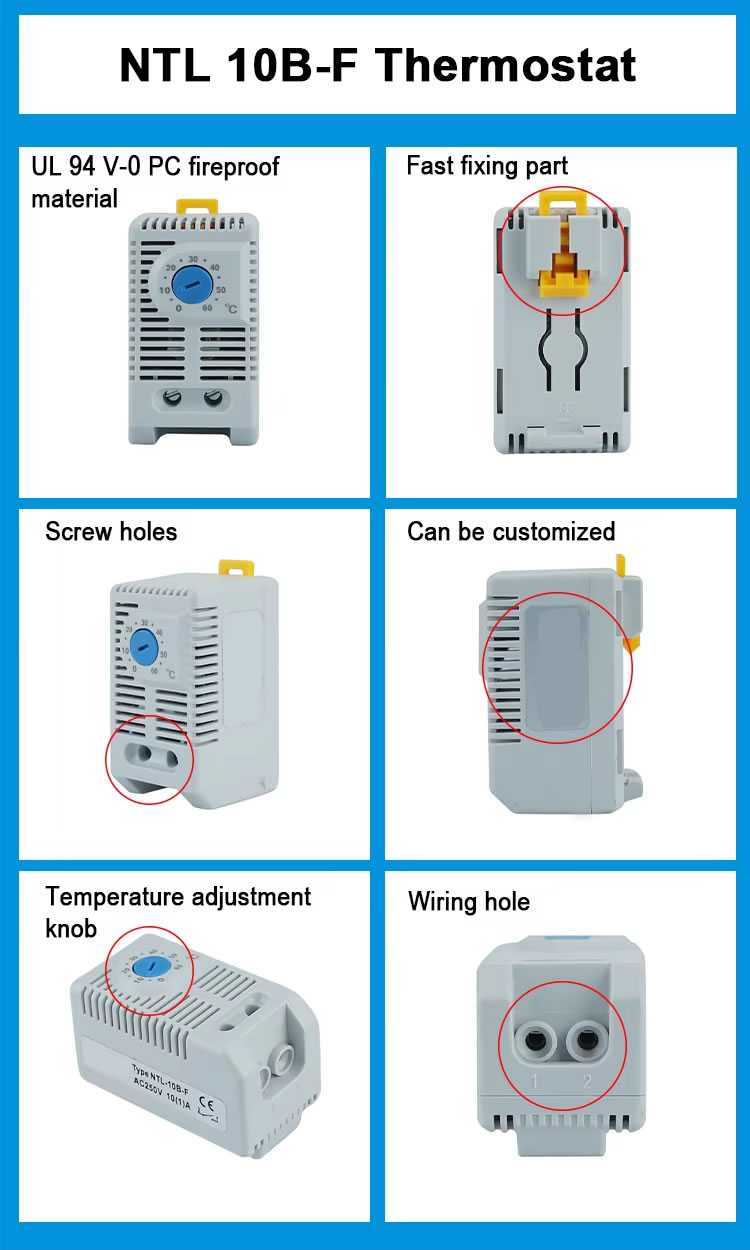

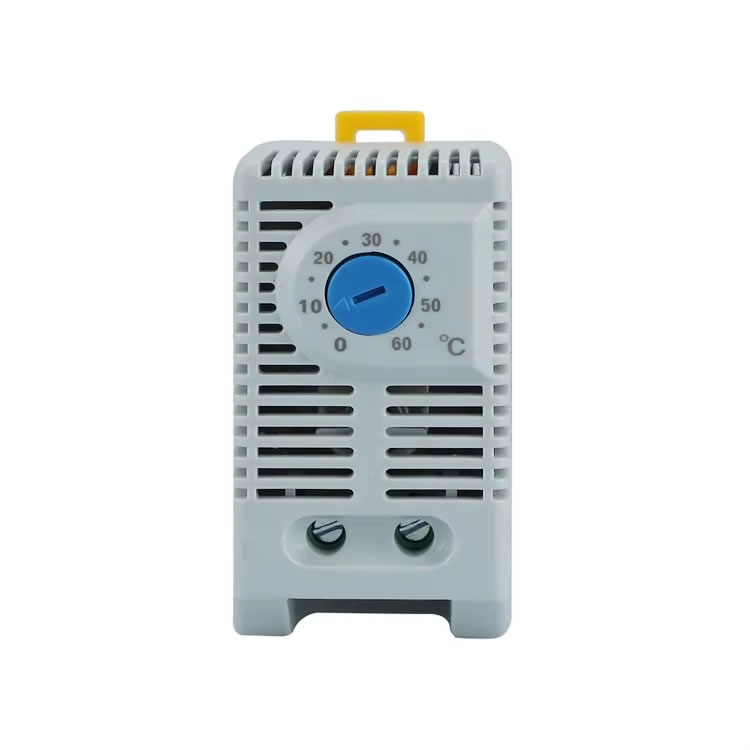

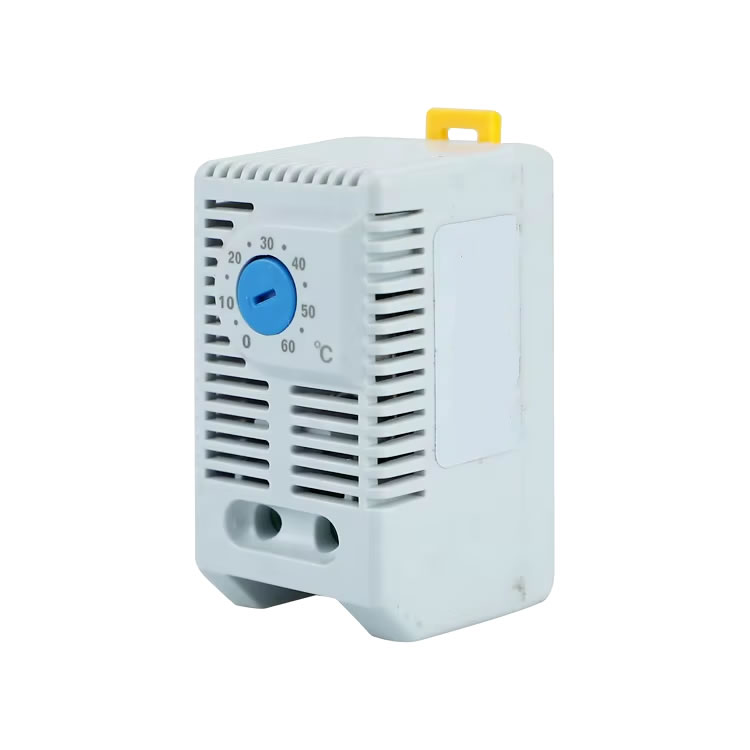

NTL 10B-F / NTL 10B-M: Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers
or for switching signal devises when temperature limit has been exceeded. The contact closes when temperature is
rising
