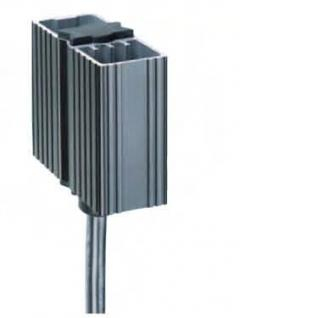

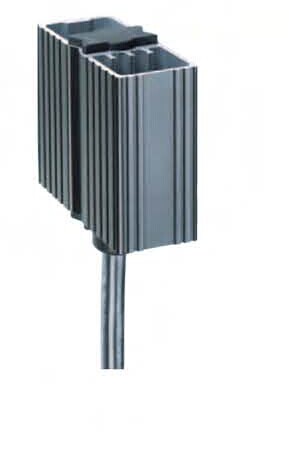

Small Semiconductor Heater

Item : HGK 047

▋ Dynamic heating up

▋ Energy saving

▋ Wide voltage range

▋ Temperature limiting

▋ Clip filing

Small Semiconductor Heater

The semiconductor Heater are used in enclosures where condensation is to be prevented or the temperature may not fall below a minimum value. In this way corrosion is avoided and an even temperature is ensured

The specification of semiconductor Heater:

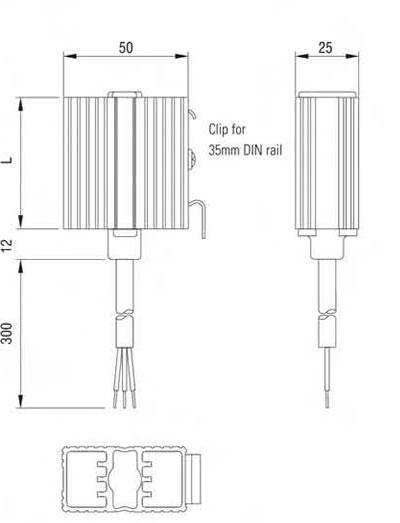

Technical Data
Heating element PTC resistor, self regulating and temperature limiting
Heater body extruded lauminium profile, anodised
Mounting clip for 35mm DIN rail, EN 50022
Fitting position vertical
Operating / Storage temperature -45 to +70-49 to +158°F
Protection type / Protection class IP54 / I(earthed)
Accessories screw fixing, Art.No.09024.0-00(1 packing unit=2 pieces)
Art.No. Operating voltage Heating capacity1) Inrush current max. Lengty(L) Weight (approx.) Connection
04700.0-00 120-240V AC/DC2) 10W 1.0A 50mm 0.10kg 3×0.5mm2×300mm sheathed cable (silicone)
04701.0-00 120-240V AC/DC2) 20W 2.5A 60mm 0.20kg 3×0.5mm2×300mm sheathed cable (silicone)
04702.0-00 120-240V AC/DC2) 30W 3.0A 70mm 0.20kg 3×0.5mm2×300mm sheathed cable (silicone)
04700.9-00 110-120V AC/DC 10W 1.0A 50mm 0.10kg 3×AWG 20×300mm sheathed cable
04701.9-00 110-120V AC/DC 20W 1.5A 70mm 0.20kg 3×AWG 20×300mm sheathed cable
04702.9-00 110-120V AC/DC 30W 1.5A 100mm 0.20kg 3×AWG 20×300mm sheathed cable
1) at 20 (68°F) ambient temperature
2) (min. 110V, max 265V) Operating with voltages below 140V AC/DC reduces heating performance by approx, 10%.

The semiconductor Heater:
