Electric Timer Time Switches
Item : TB-35 TB-35B
Timer switch,time relay,timer relay,timing switch,weekly timer,electric timer,
din rail mounting timer,timer relay switch,automatically off switch.
Ezitown ,manufacturer of electric and electrical products. such as distributin box, circuit breaker ,wiring accessories, etc .
europe and america are our mainly market. Almost of our worker with more than 10 years experience in electric manufacturing.All of these will take care of your order.
Any question,please feel free to tell me.
Your earliest reply will be highly appreciated.
Item : TB-35 TB-35B
Timer switch,time relay,timer relay,timing switch,weekly timer,electric timer,
din rail mounting timer,timer relay switch,automatically off switch.
TB-35:
| CLASSIFICATION | TIMER | |
| MODEL | TB-35 | |
| CONTACT CAPACITY | AC220V 10A | |
| FULL TIMING RANGE | 24h | |
| CONTACT RESISTANCE | ≤50mΩ | |
| INSULATION RESISTANCE | ≥100MΩ | |
| COIL VOLTAGE | 100～240V AC | |
| LIFE | ELECTRICAL | 105 times |
| MECHANICAL | 107 times | |
| OPERATING TEMPERATURE | ﹣40℃～﹢55℃ | |
| STO NAGE BATTERY (WORKING RESERVE) | Without battery | |
| MINIMUM SETTING UNIT | 15 Minutes | |
| SET UP TIMES | 15m/per times 96 times | |
| REMARKS | …… | |
TB-35B:
| CLASSIFICATION | TIMER | |
| MODEL | TB-35B | |
| CONTACT CAPACITY | AC220V 10A | |
| FULL TIMING RANGE | 24h | |
| CONTACT RESISTANCE | ≤50mΩ | |
| INSULATION RESISTANCE | ≥100MΩ | |
| COIL VOLTAGE | 100～240V AC | |
| LIFE | ELECTRICAL | 105 times |
| MECHANICAL | 107 times | |
| OPERATING TEMPERATURE | ﹣40℃～﹢55℃ | |
| STO NAGE BATTERY (WORKING RESERVE) | Time 150h | |
| MINIMUM SETTING UNIT | 15 Minutes | |
| SET UP TIMES | 15m/per times 96 times | |
| REMARKS | …… | |
TB-38B T2

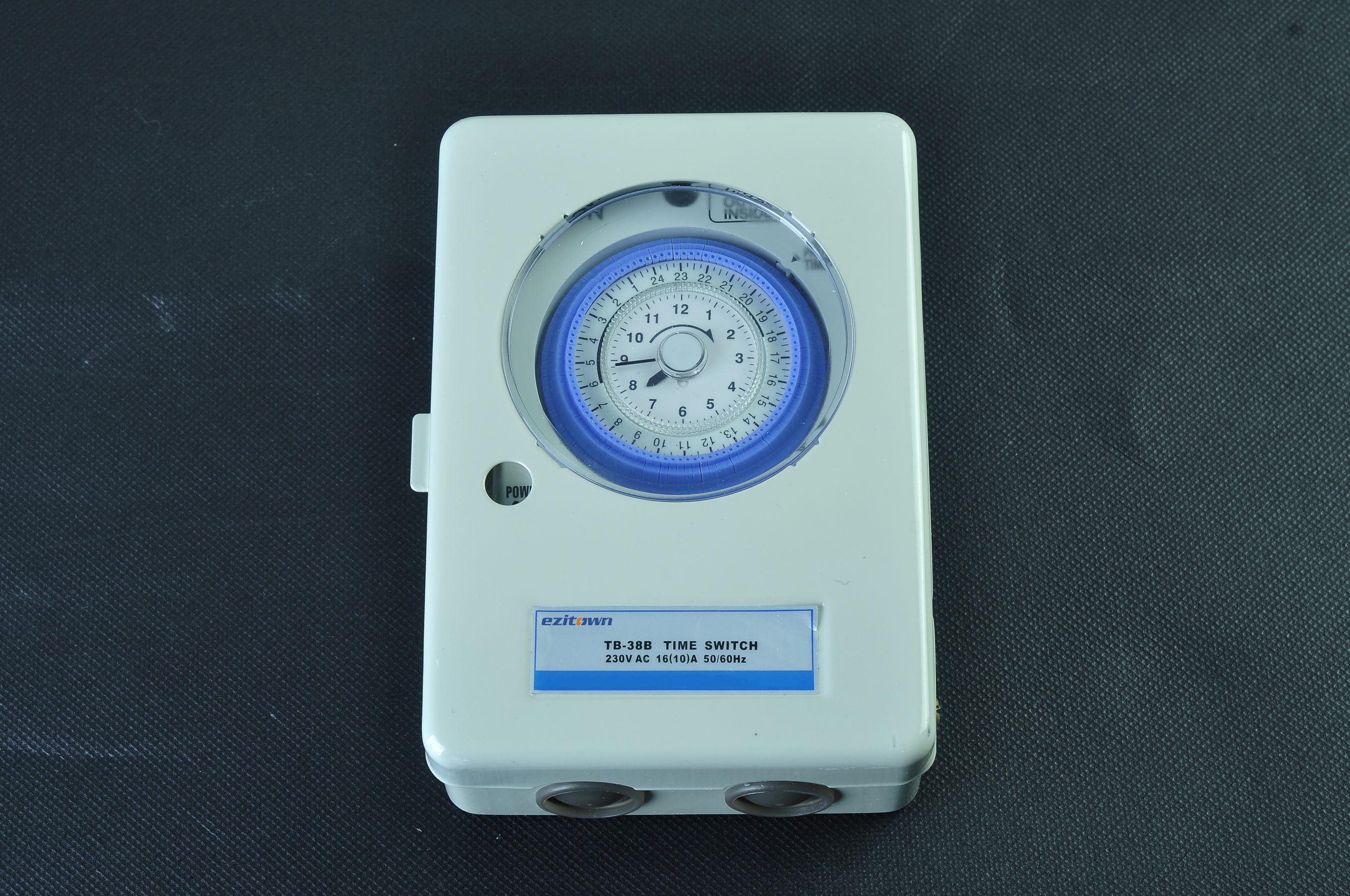

TB-38B T1

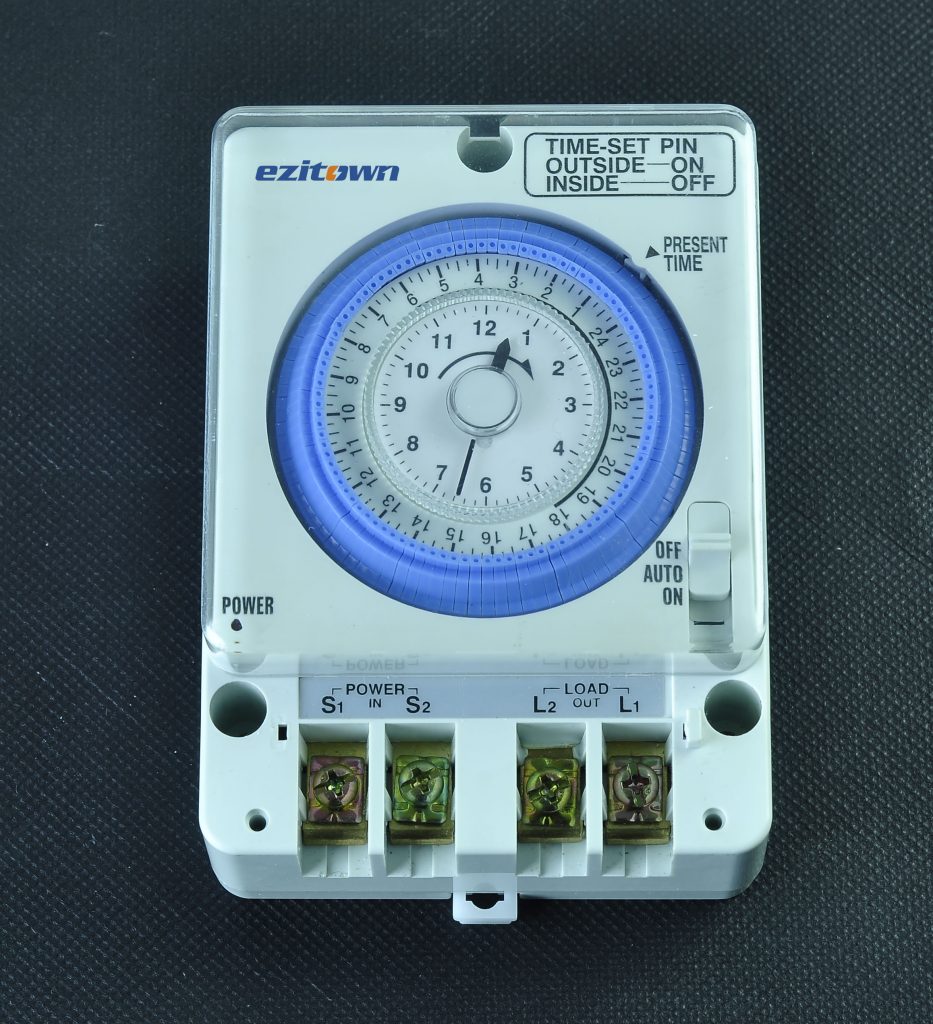

TB-35 timer switch
TB-38B TIMER SWITCH
