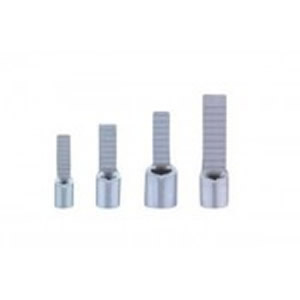

DBN cable shoes Chip-shaped naked terminal



Item : DBN cable shoes

Item : DBN cable shoes

0.5-1.5mm2(22-16) 1max=19A

ITEM.NO. DIMENSION
 B(mm) L(mm) Fφ(mm)  E(mm)  Dφ(mm)  dφ(mm)
   1.25-10 2.3 14.8 10 4.8 3.4 1.7
   1.25-11 3 15.8 11
   1.25-14 3 18.8 14
   1.25-18 2.3 22.8 18



1.5-2.5mm2(16-14) 1max=27A

ITEM.NO. DIMENSION
 B(mm) L(mm) Fφ(mm)  E(mm)  Dφ(mm)  dφ(mm)
   2-9 2.3 13.8 9 4.8 4.1 2.3
   2-18 2.3 22.8 18



4-6mm2(12-10) 1max=48A

ITEM.NO. DIMENSION
 B(mm) L(mm) Fφ(mm)  E(mm)  Dφ(mm)  dφ(mm)
   5.5-10 2.8 14.8 10 6 5.6 3.4
   5.5-14 4.5 21 14
   5.5-18 4.5 23 18
   8-14 5 22.5 14 8.5 7.2 4.5
   14-16 6 30.6 16 14 9 6.5

chip-shaped-naked-terminal-3

Q:How to guarantee my order and payment:
A:Ezitown has Alibaba trade Assurance,100% refundable if any quality or delivery problem.

Q:How to return the goods if meet any problem

A:we have DHL and Fedex account for return goods.buyer no need to pay any shipping cost for returning. Can contact our salesman to operate.

Q:Why Ezitown price is competitive, and quality seems rather good ?

A:because we have been manufacturing more than 20 years, we know what price and Quality buyer can sell well in market.the wholeseller have suitable profits

Q:Can we order many items and make combine shipment.

A:we can combine many items,and deliver by courier/sea/land/air etc. pack well.

Q:Can I order the cabinet/enclosure/box and the wiring material from you or other supplier,you make wiring and assembly for us ?

A:we have egineering, wiring and assembly team for low voltage/medium voltage/high voltage/DC control .can make drawing and diagram to confirmation and proceed the assembly.we have unite nation project in regular assembly.

Q:How can I make our own brand for my order

A:we supply OEM service if order quantity meet the OEM MOQ , contact to know the exactly quantity for your item

Q:What is the delivery if I make payment

A:Almost all items we keep in stock.and we have many order every day , We need 1-3 working days to packing and make delivery.OEM packing will be longer time.

Q:Can we visit your factory or office ?A:we always welcome customer visit us, let me know the schedule, we will arrange.
