ukk junction box 80a 125a 160a 250a 400a
ukk junction box 80a 125a 160a 250a 400a

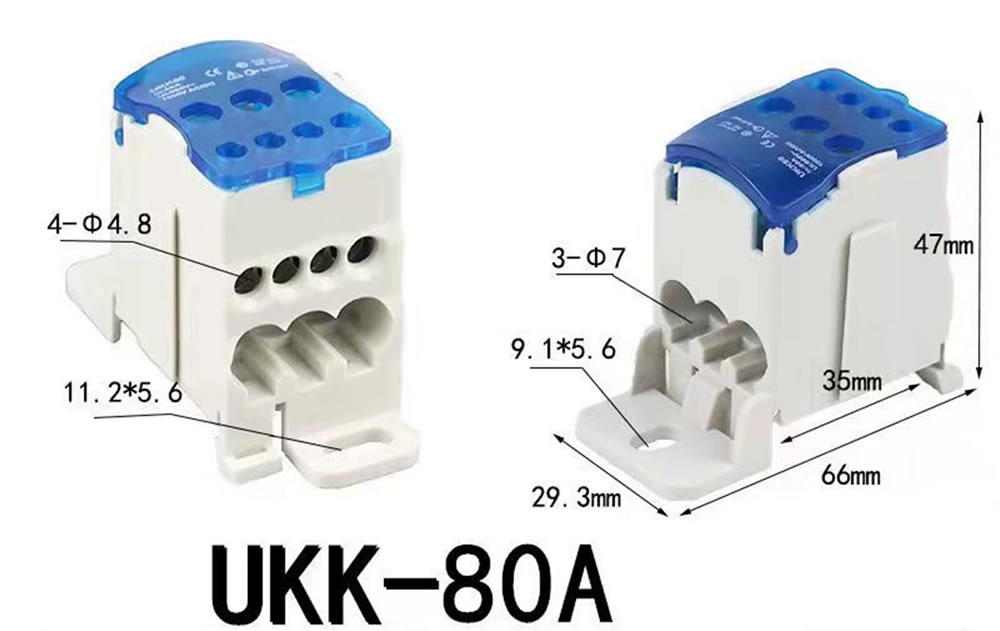

ukk 80a dimension
ukk 80a dimension
UKK SINGLE-STAGE BUS JUNCTION BOX
TypeUKK 80A
ColorBlue and Gray
Length/Wide/Height(mm)66/29.3/47
Rated Voltage/Current690V/80A
Connection MethodScrew Connection
MaterialFlame resistant Nylon PA66,Brass conductor
Entry Specification1*16mm2
Output Specification4*6mm2/2*16mm2
Installation Mode35mm guide rail or Screw fixing
Weigth0.06KG
StandardIEC 60947-7-1

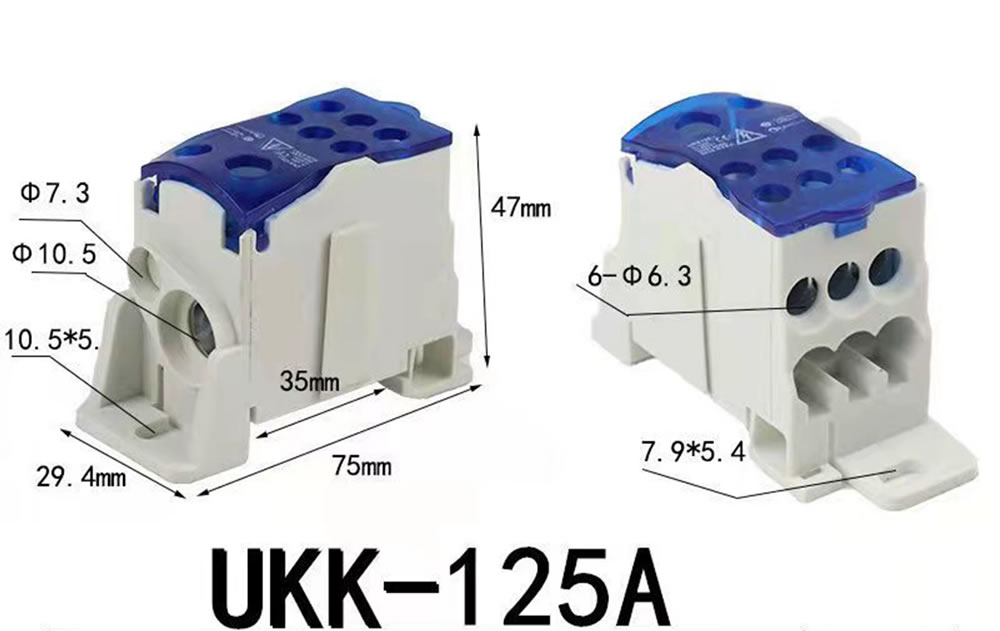

ukk 125a junction dimension
ukk 125a junction dimension
UKK SINGLE-STAGE BUS JUNCTION BOX
TypeUKK 125A
ColorBlue and Gray
Length/Wide/Height(mm)75/29.4/47
Rated Voltage/Current690V/125A
Connection MethodScrew Connection
MaterialFlame resistant Nylon PA66,Brass conductor
Entry Specification1*16mm2 / 1*35mm2
Output Specification6*16mm2
Installation Mode35mm guide rail or Screw fixing
Weigth0.14KG
StandardIEC 60947-7-1

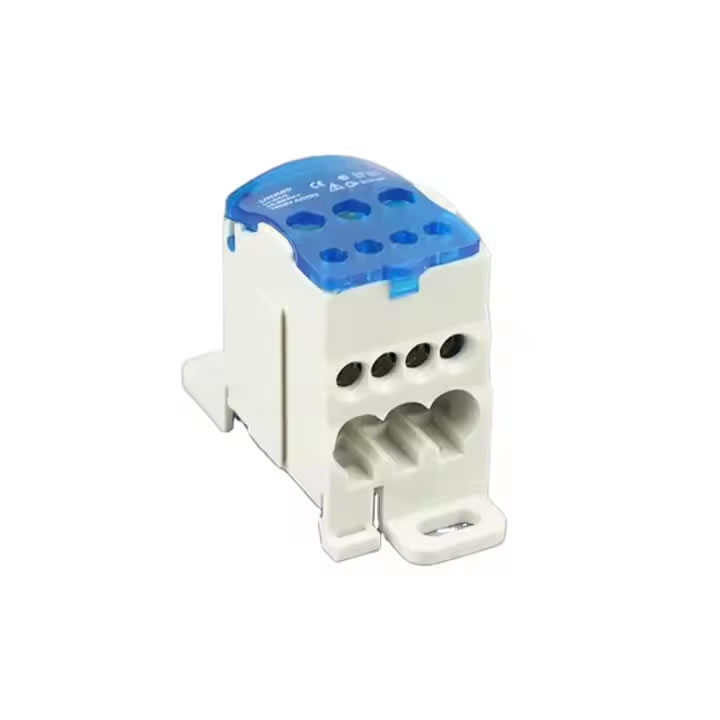

ukk 160A junction box
ukk 160A junction box

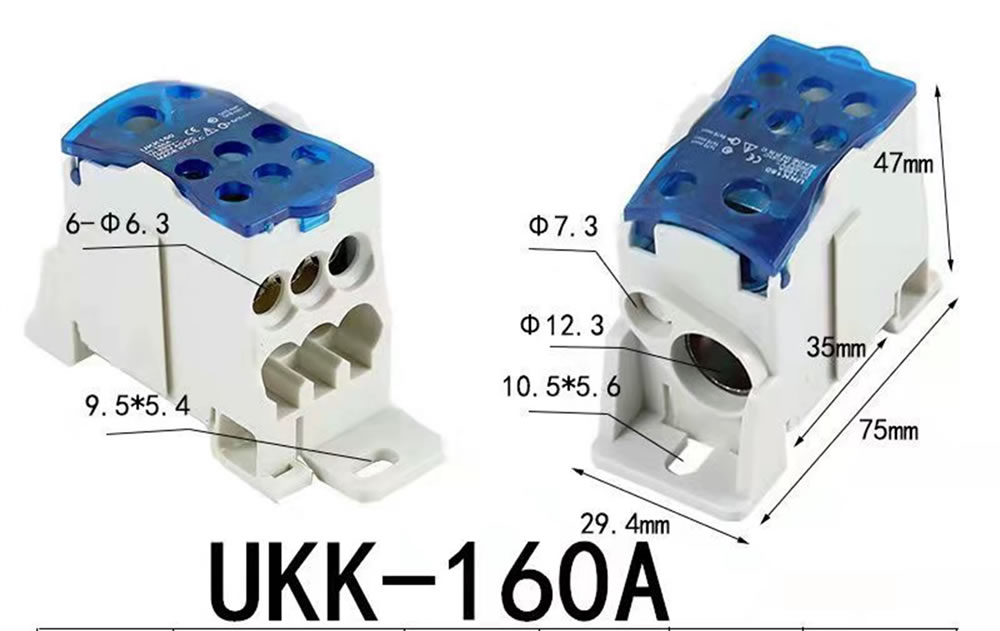

160a junction box dimension
160a junction box dimension
UKK SINGLE-STAGE BUS JUNCTION BOX
TypeUKK 160A
ColorBlue and Gray
Length/Wide/Height(mm)75/29.4/47
Rated Voltage/Current690V/160A
Connection MethodScrew Connection
MaterialFlame resistant Nylon PA66,Brass conductor
Entry Specification1*16mm2 / 1*70mm2
Output Specification6*16mm2
Installation Mode35mm guide rail or Screw fixing
Weigth0.14KG
StandardIEC 60947-7-1
UKK SINGLE-STAGE BUS JUNCTION BOX
TypeUKK 250A
ColorBlue and Gray
Length/Wide/Height(mm)96/47.3/50
Rated Voltage/Current690V/250A
Connection MethodScrew Connection
MaterialFlame resistant Nylon PA66,Brass conductor
Entry Specification1*16mm2 / 1*70mm2
Output Specification6*16mm2
Installation Mode35mm guide rail or Screw fixing
Weigth0.14KG
StandardIEC 60947-7-1

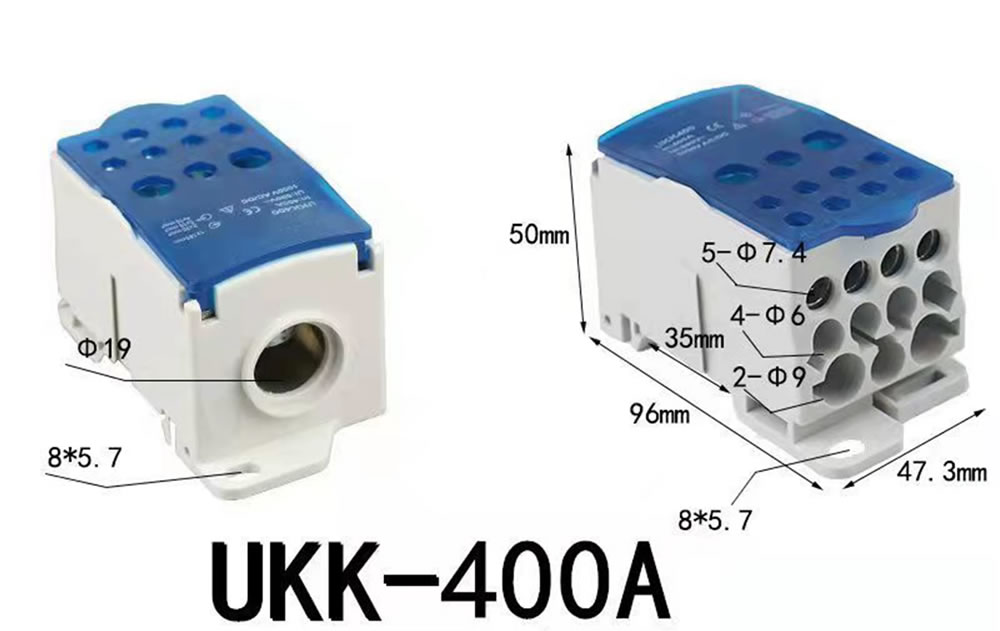

UKK SINGLE-STAGE BUS JUNCTION BOX
TypeUKK 400A
ColorBlue and Gray
Length/Wide/Height(mm)96/47.3/50
Rated Voltage/Current690V/400A
Connection MethodScrew Connection
MaterialFlame resistant Nylon PA66,Brass conductor
Entry Specification1*185mm2
Output Specification2*35mm2/5*16mm2/4*10mm2
Installation Mode35mm guide rail or Screw fixing
Weigth0.4KG
StandardIEC 60947-7-1

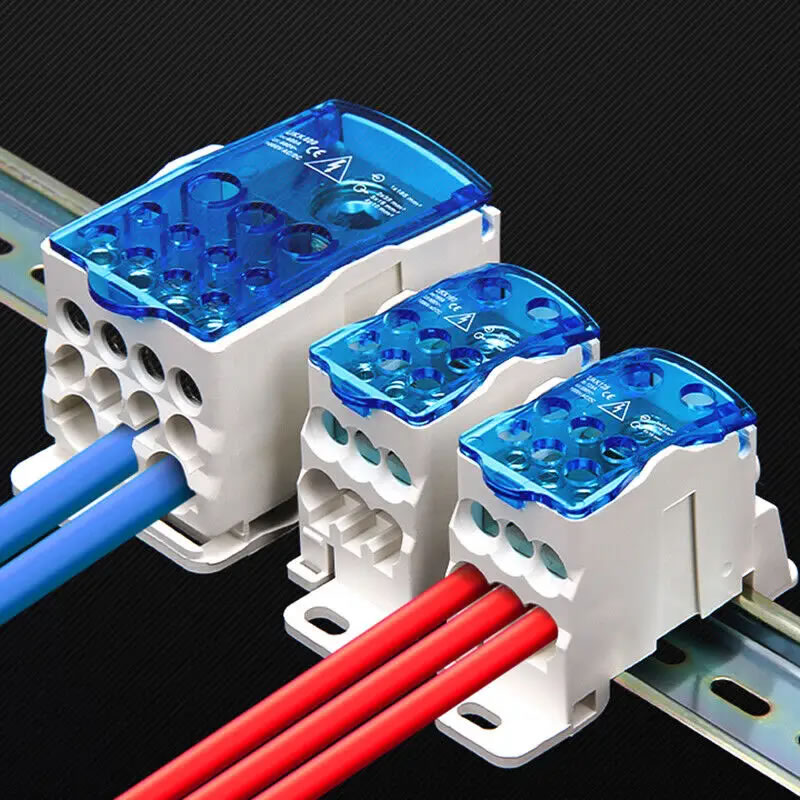

ukk terminal block box
ukk terminal block box

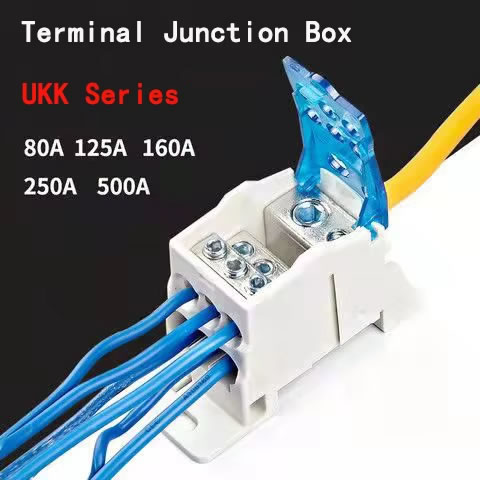

ukk junction box open
ukk junction box open

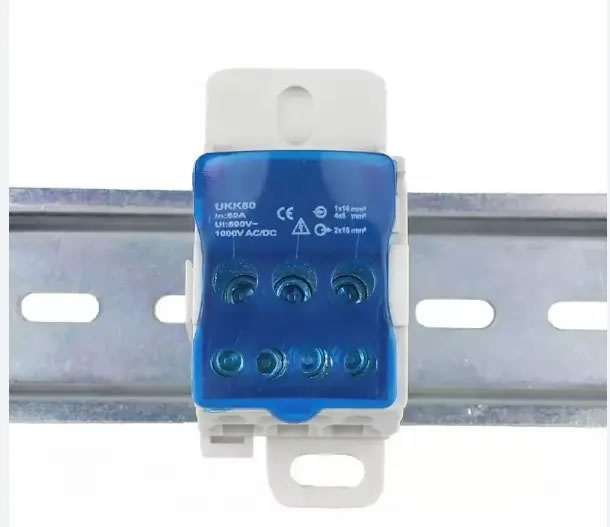

din rail distribution box 80A
din rail distribution box 80A
ezitown timer carton box
ezitown timer carton box
Nylon cable zip tie ezitown carton
Nylon cable zip tie ezitown carton
