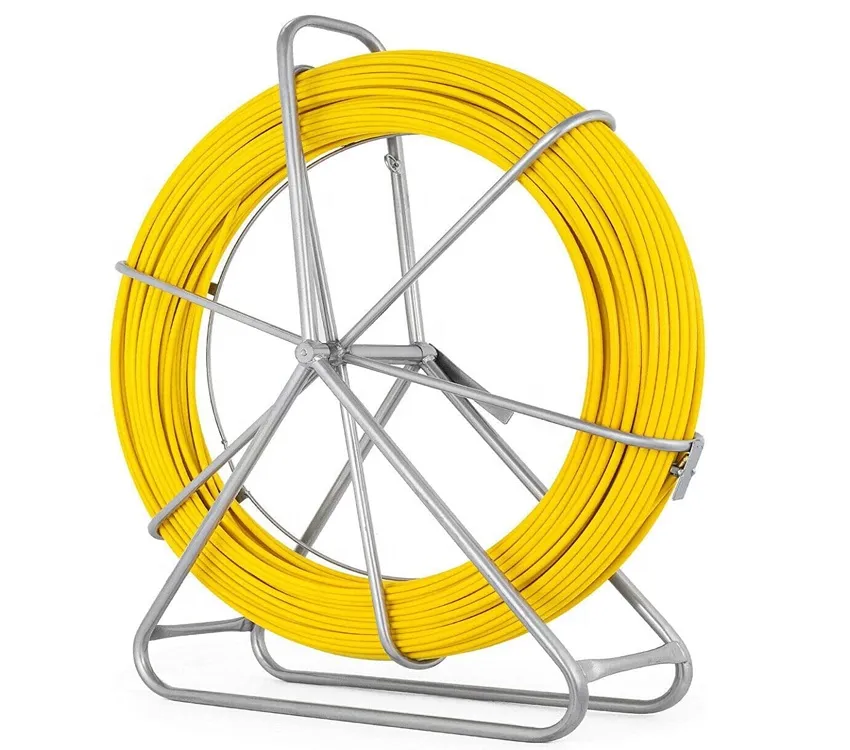

Fiberglass Heavy duty Duct rodder
Item : FCP
Fiberglass cable puller,fiberglass fish tape,cable pulling
A
Model : FCP
Material:Fiberglass Fiberglass covered by ABS material sheet
wire size : 4mm,5mm,6mm,8mm,10mm,12mm,16mm
Thickness of wire:210 g/m Tensile strength of wire: 1200kg
Pulling tension fracture:4.5 Ton
Wire length max: 300M
Minimum bending radius:300mm
Diameter of reel:1200mm
Product Features:
1, the tensile strength, bending properties, and can be in the pipeline in a small free shuttle.

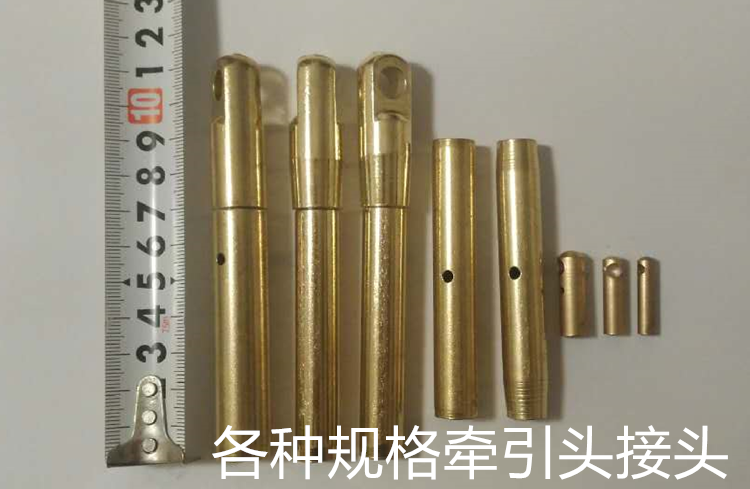

2, with a anti-rust traction head. exchangable screw are optional. screw size:
Dia 4mm~6mm: M6
Dia 6.5mm-8mm: M8
Dia 9mm~14mm: M12
3, strong anti-aging properties
4, UV proof fiberglass rod, but Avoid long time sunshine high-temperature above 35C
5, rod diameter classification
Fiberglass wire size : 4mm,5mm,6mm,8mm,10mm,12mm,16mm
Thickness of wire:210 g/m
Tensile strength of wire: 1200kg
Pulling tension fracture:4.5 Ton
Wire length max: 300M
Minimum bending radius (do not bend less than below redius, otherwise the rod will be broken immediately):
Dia 4mm~6mm: 140mm
Dia 6.5mm-8mm:230mm
Dia 9mm~14mm: 490mm
Diameter of reel: 550mm~1300mm
| rod(mm) | Length（m） | frame size（cm）
Height*Width*Thickness |
Net Weight（kg） |
| 4.5 | 100 | 67*55*20 handing | 8 |
| 6 | 150 | 77*65*20 handing | 14 |
| 8 | 100 | 97*87*45 handing | 24 |
| 9 | 150 | 107*97*45 wheel | 40 |
| 11 | 100 | 107*97*45 wheel | 40 |
| 11 | 150 | 117*107*45 wheel | 45 |
| 11 | 200 | 117*107*45 wheel | 50 |
| 14 | 300 | 147*137*45 wheel | 110 |
| 16 | 200 | 147*137*45 wheel | 110 |

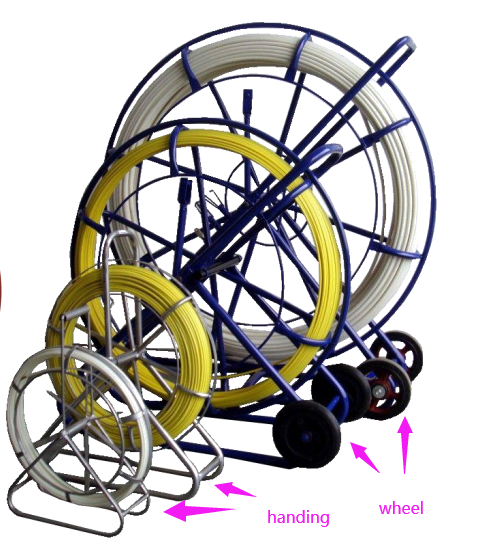

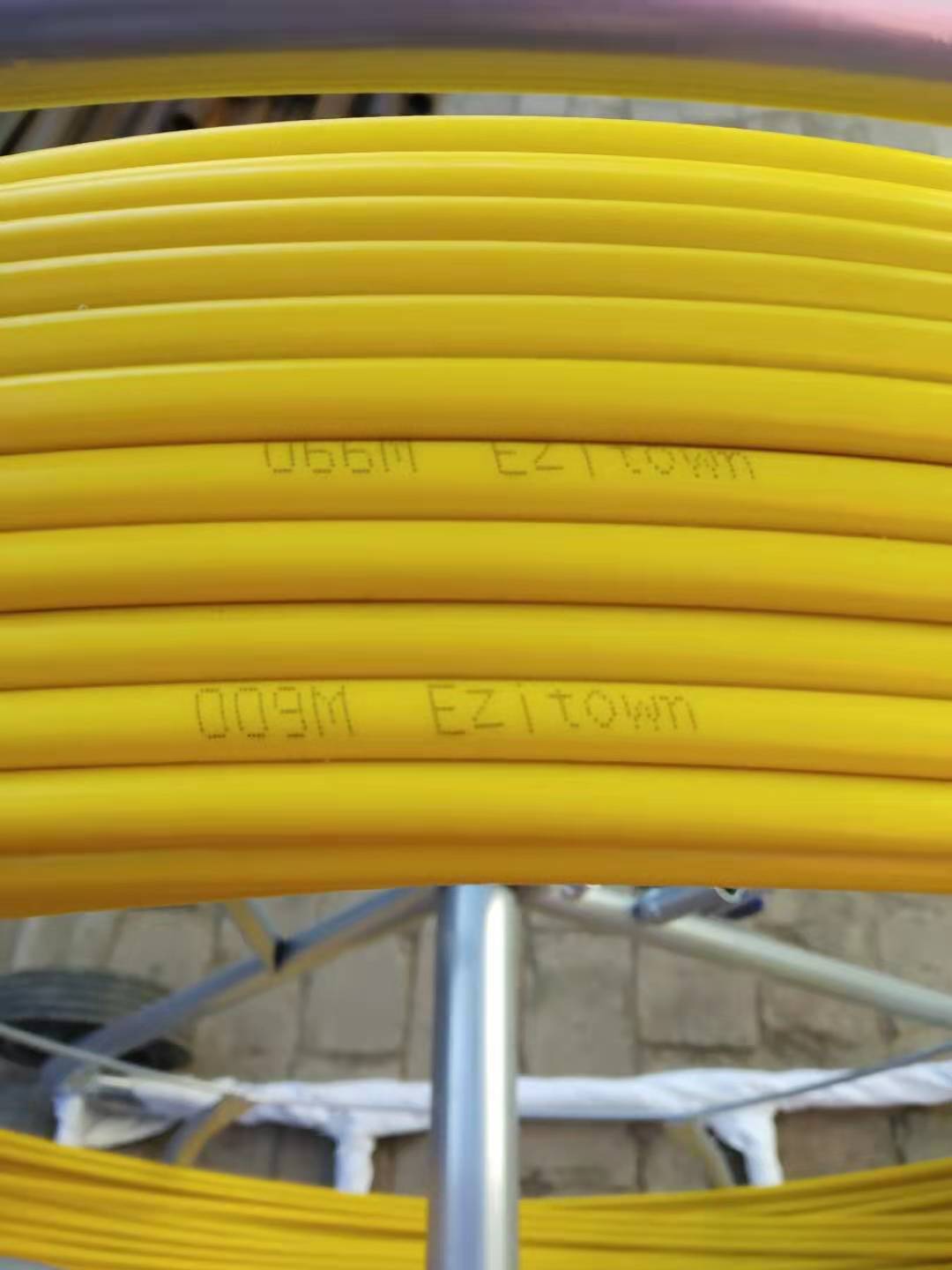

ezitown handing duct rodder

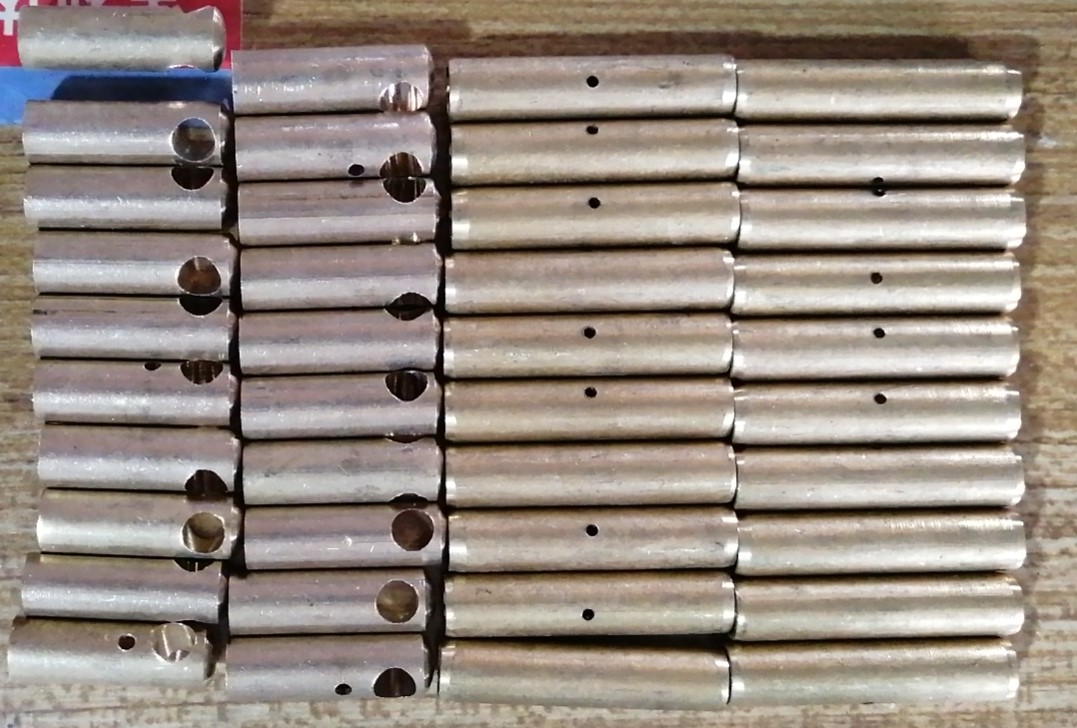

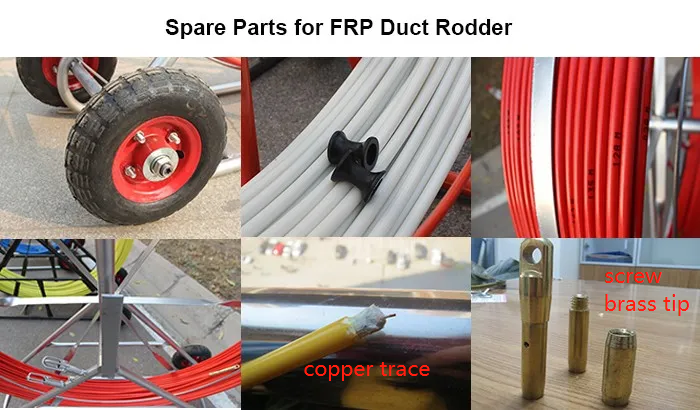

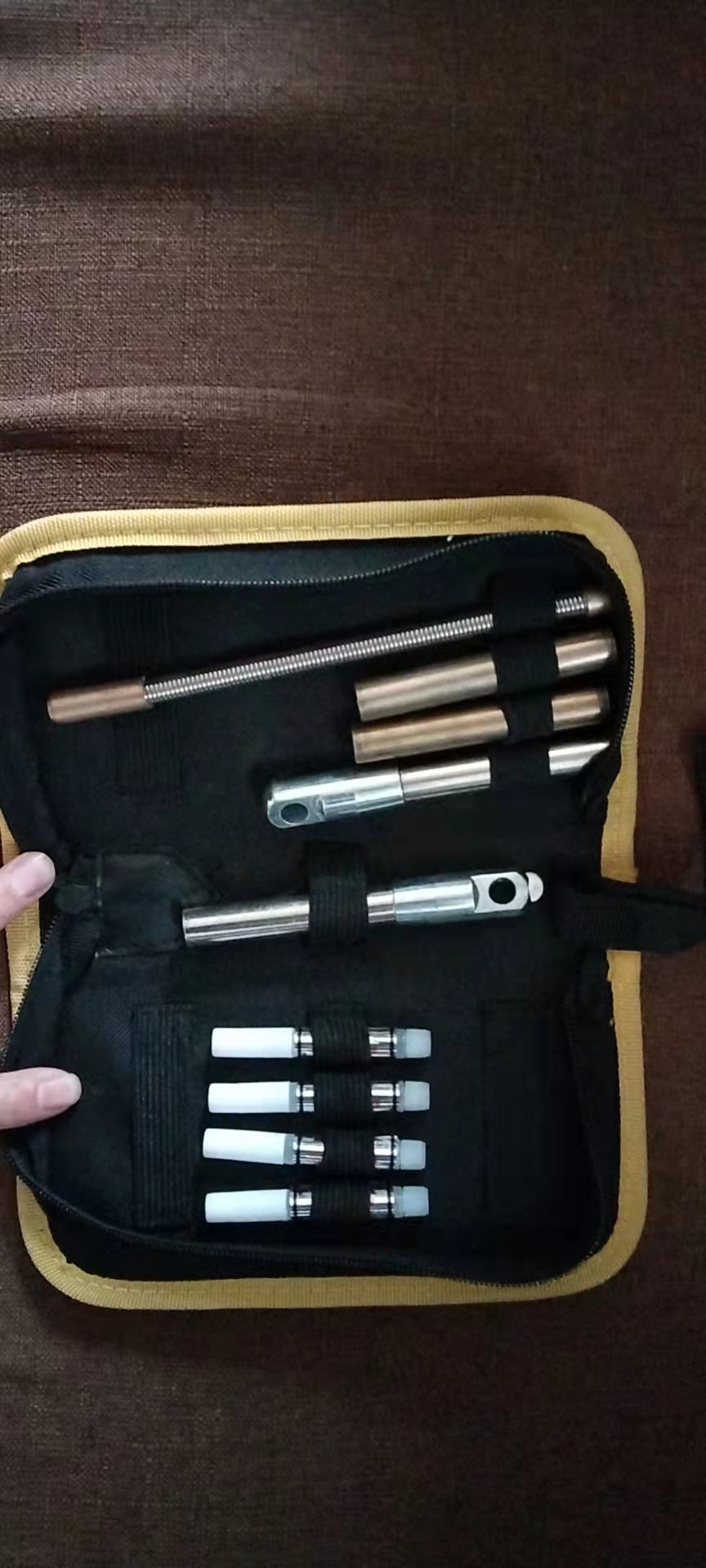

duct rodder repair kits
Tensile strength of fiberglass rod
test method: Cut a section of 700-1000mm long conduit, bend it into an arc at room temperature of 20-25 degrees according to the minimum bending radius, and then straighten it again at a rate of 10 times/minute. It can withstand 12500 straightening tests to ensure no breakage; Or rather, it will only break after 12500 cycles. The threading tube can be bent at a temperature not exceeding 20 ° C with a bending radius of twice without breaking.
duct rodder steel structure drop box testing
