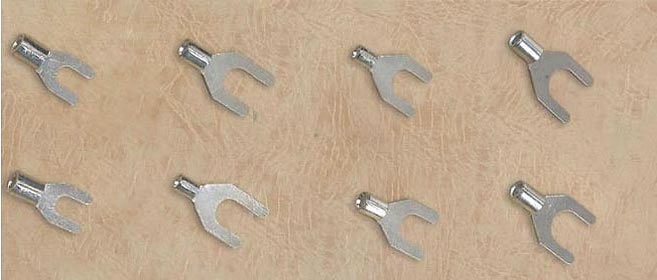

Fork shape naked wire connector
Item : SNB
Details : Fork shape Naked wire connector,Naked terminal,naked connector,cable shoes
Item : SNB
Details : Fork shape Naked wire connector,Naked terminal,naked connector,cable shoes
0.5-1.5mm2(22-16) 1max=19A
| ITEM.NO. | USA screw | screw dia.d2(mm) | DIMENSION | |||||
| B(mm) | L(mm) | Fφ(mm) | Eφ(mm) | Dφ(mm) | dφ(mm) | |||
| SNB 1.25-3 | #4 | 3.2 | 5.7 | 16.0 | 6.5 | 4.8 | 3.4 | 1.7 |
| SNBS 1.25-3.5 | #6 | 3.7 | 5.7 | 16.0 | 6.5 | |||
| SNBL 1.25-3.5 | #6 | 3.7 | 6.4 | 16.0 | 6.5 | |||
| SNBS 1.25-4 | #8 | 4.3 | 6.4 | 16.0 | 6.5 | |||
| SNBM 1.25-4 | #8 | 4.3 | 7.2 | 16.0 | 6.5 | |||
| SNBL 1.25-4 | #8 | 4.3 | 8.1 | 16.0 | 6.5 | |||
| SNBS 1.25-5 | #10 | 5.3 | 8.1 | 16.0 | 6.5 | |||
| SNBL 1.25-5 | #10 | 5.3 | 9.5 | 16.0 | 6.5 | |||
| SNBS 1.25-6 | 1/4 | 6.4 | 9.5 | 16.0 | 6.5 | |||
| SNBL 1.25-6 | 1/4 | 6.4 | 12.0 | 22.0 | 11.0 | |||
1.5-2.5mm2(16-14) 1max=27A
| ITEM.NO. | USA screw | screw dia.d2(mm) | DIMENSION | |||||
| B(mm) | L(mm) | Fφ(mm) | Eφ(mm) | Dφ(mm) | dφ(mm) | |||
| SNB 2-3 | #4 | 3.2 | 5.7 | 16.0 | 6.5 | 4.8 | 4.1 | 2.3 |
| SNBS 2-3.5 | #6 | 3.7 | 5.7 | 16.0 | 6.5 | |||
| SNBL 2-3.5 | #6 | 3.7 | 6.4 | 16.0 | 6.5 | |||
| SNBS 2-4 | #8 | 4.3 | 6.4 | 16.0 | 6.5 | |||
| SNBM 2-4 | #8 | 4.3 | 7.2 | 16.0 | 6.5 | |||
| SNBL 2-4 | #8 | 4.3 | 8.1 | 16.0 | 6.5 | |||
| SNBS 2-5 | #10 | 5.3 | 8.1 | 16.0 | 6.5 | |||
| SNBL 2-5 | #10 | 5.3 | 9.5 | 16.0 | 6.5 | |||
| SNBS2-6 | 1/4 | 6.4 | 9.5 | 16.0 | 6.5 | |||
| SNBL 2-6 | 1/4 | 6.4 | 12.0 | 22.0 | 11.0 | |||
2.5-4mm2(14-12) 1max=37A
| ITEM.NO. | USA screw | screw dia.d2(mm) | DIMENSION | |||||
| B(mm) | L(mm) | Fφ(mm) | Eφ(mm) | Dφ(mm) | dφ(mm) | |||
| SNB 3.5-3 | #4 | 3.2 | 5.7 | 18.3 | 7.0 | 6.0 | 5.0 | 3.0 |
| SNB 3.5-4 | #8 | 4.3 | 8.0 | 18.3 | 7.0 | |||
| SNB 3.5-5 | #10 | 5.3 | 8.0 | 18.3 | 7.0 | |||
| SNB 3.5-6 | 1/4 | 6.4 | 12.0 | 21.5 | 12.1 | |||
4-6mm2(12-10) 1max=48A
| ITEM.NO. | USA screw | screw dia.d2(mm) | DIMENSION | |||||
| B(mm) | L(mm) | Fφ(mm) | Eφ(mm) | Dφ(mm) | dφ(mm) | |||
| SNB 5.5-3.5 | #8 | 3.7 | 8.3 | 19.5 | 7.5 | 6.8 | 5.6 | 3.4 |
| SNBS 5.5-4 | #10 | 4.3 | 8.3 | 19.5 | 7.5 | |||
| SNBL 5.5-4 | #8 | 4.3 | 9.0 | 19.5 | 7.5 | |||
| SNB 5.5-5 | #10 | 5.3 | 9.0 | 19.5 | 7.5 | |||
| SNBS 5.5-6 | 1/4 | 6.4 | 9.0 | 19.5 | 7.5 | |||
| SNBL 5.5-6 | 1/4 | 6.4 | 12.0 | 25.5 | 12.0 | |||
| SNB 5.5-8 | 5/16 | 8.4 | 14.0 | 24.5 | 11.5 | |||
| ITEM.NO. | USA screw | screw dia.d2(mm) | DIMENSION | |||||
| B(mm) | L(mm) | Fφ(mm) | Eφ(mm) | Dφ(mm) | dφ(mm) | |||
| SNB 8-4 | #8 | 4.3 | 8.7 | 23.0 | 6.0 | 8.5 | 7.2 | 4.5 |
| SNB 8-5 | #10 | 5.3 | 12.0 | 24.5 | 5.7 | 8.5 | 7.2 | 4.5 |
| SNB 8-6 | 1/4 | 6.4 | 12.0 | 24.5 | 5.7 | 8.5 | 7.2 | 4.5 |
| SNB 8-8 | 5/16 | 8.4 | 14.5 | 28.0 | 8.3 | 8.5 | 7.2 | 4.5 |
| SNB 14-6 | 1/4 | 6.4 | 12.0 | 28.0 | 7.5 | 10.5 | 9.0 | 5.8 |
| SNB 14-8 | 5/16 | 8.4 | 14.0 | 28.0 | 7.5 | 10.5 | 9.0 | 5.8 |
| SNB 22-8 | 5/16 | 8.4 | 14.0 | 34.5 | 9.0 | 12.0 | 11.5 | 7.7 |
