Pin-shaped naked terminal
Item : PTN
0.5-1.5mm2(22-26) 1max=19A
| ITEM.NO. | DIMENSION | ||||
| Fφ(mm) | L(mm) | E(mm) | Dφ(mm) | dφ(mm) | |
| 1.25-9 | 1.9 | 13.8 | 4.8 | 3.4 | 1.7 |
| 1.25-10 | 1.9 | 14.8 | |||
| 1.25-12 | 1.9 | 16.8 | |||
| 1.25-13 | 1.9 | 17.8 | |||
| 1.25-18 | 1.9 | 22.8 | |||
1.5-2.5mm2(16-24) 1max=27A
| ITEM.NO. | DIMENSION | ||||
| Fφ(mm) | L(mm) | E(mm) | Dφ(mm) | dφ(mm) | |
| 2-9 | 1.9 | 13.8 | 4.8 | 4.1 | 2.3 |
| 2-10 | 1.9 | 14.8 | |||
| 2-12 | 1.9 | 16.8 | |||
| 2-13 | 1.9 | 17.8 | |||
2.5-4mm2(14-12) 1max=37A
| ITEM.NO. | DIMENSION | ||||
| Fφ(mm) | L(mm) | E(mm) | Dφ(mm) | dφ(mm) | |
| 3.5-10 | 2.8 | 14.8 | 4.8 | 4.1 | 2.3 |
| 3.5-13 | 2.8 | 19.5 | |||
4–6mm2(12-10) 1max=47A
| ITEM.NO. | DIMENSION | ||||
| Fφ(mm) | L(mm) | E(mm) | Dφ(mm) | dφ(mm) | |
| 5.5-13 | 2.8 | 19.8 | 6 | 5.6 | 3.4 |

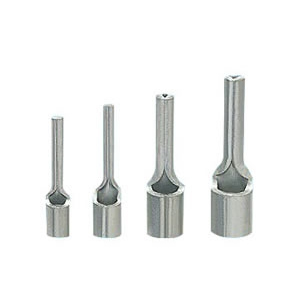

PIN SHAPED NAKED TERMINAL

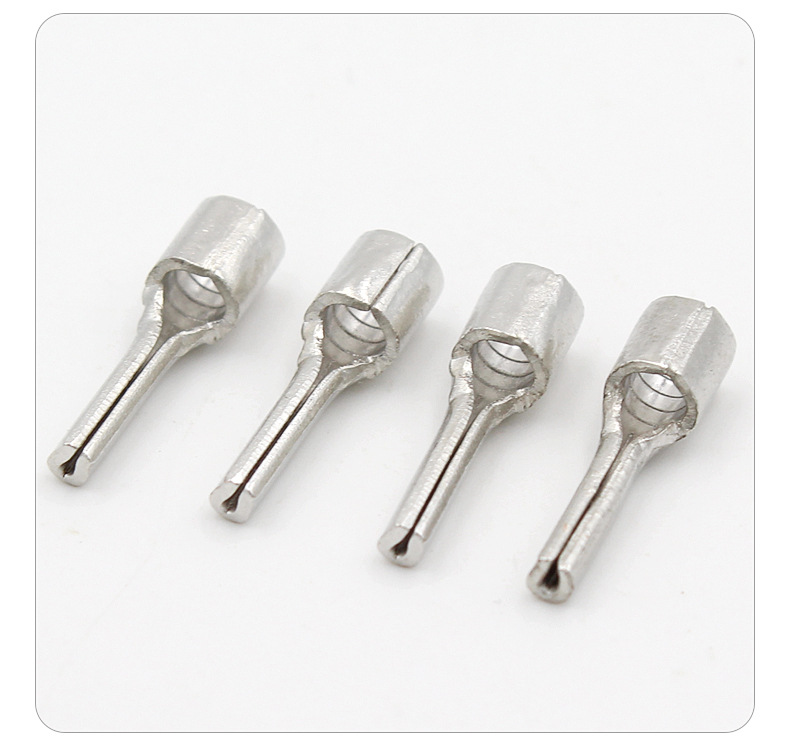

ezitown naked pin type wire connector

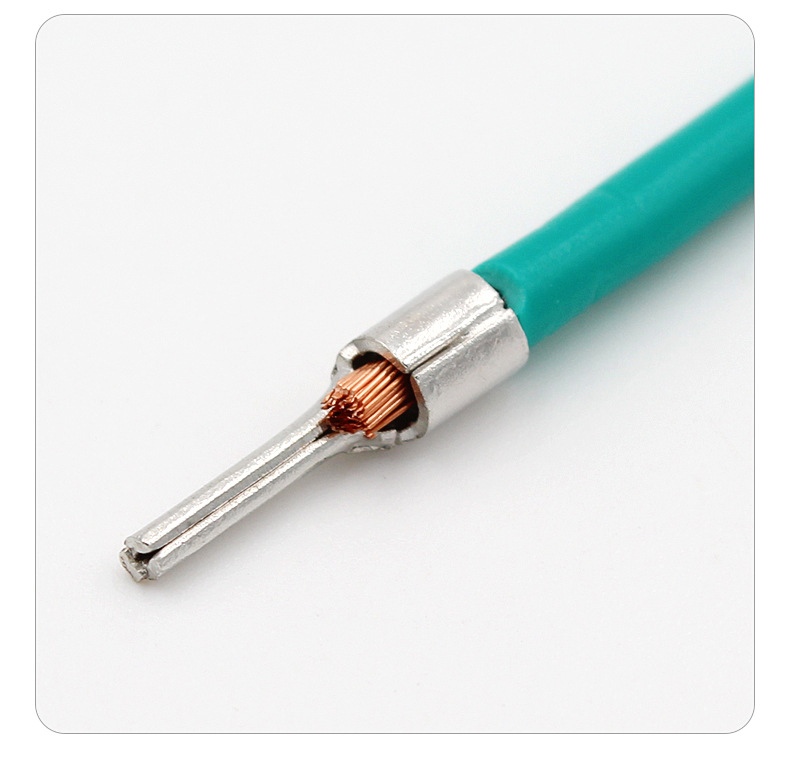

PTN PIN connector
Q:How to guarantee my order and payment:
A:Ezitown has Alibaba trade Assurance,100% refundable if any quality or delivery problem.
Q:How to return the goods if meet any problem
A:we have DHL and Fedex account for return goods.buyer no need to pay any shipping cost for returning. Can contact our salesman to operate.
Q:Why Ezitown price is competitive, and quality seems rather good ?
A:because we have been manufacturing more than 20 years, we know what price and Quality buyer can sell well in market.the wholeseller have suitable profits
Q:Can we order many items and make combine shipment.
A:we can combine many items,and deliver by courier/sea/land/air etc. pack well.
Q:Can I order the cabinet/enclosure/box and the wiring material from you or other supplier,you make wiring and assembly for us ?
A:we have egineering, wiring and assembly team for low voltage/medium voltage/high voltage/DC control .can make drawing and diagram to confirmation and proceed the assembly.we have unite nation project in regular assembly.
Q:How can I make our own brand for my order
A:we supply OEM service if order quantity meet the OEM MOQ , contact to know the exactly quantity for your item
Q:What is the delivery if I make payment
A:Almost all items we keep in stock.and we have many order every day , We need 1-3 working days to packing and make delivery.OEM packing will be longer time.
Q:Can we visit your factory or office ?A:we always welcome customer visit us, let me know the schedule, we will arrange.
