Ring shape Naked wire connector
Item : RNB naked ring lug

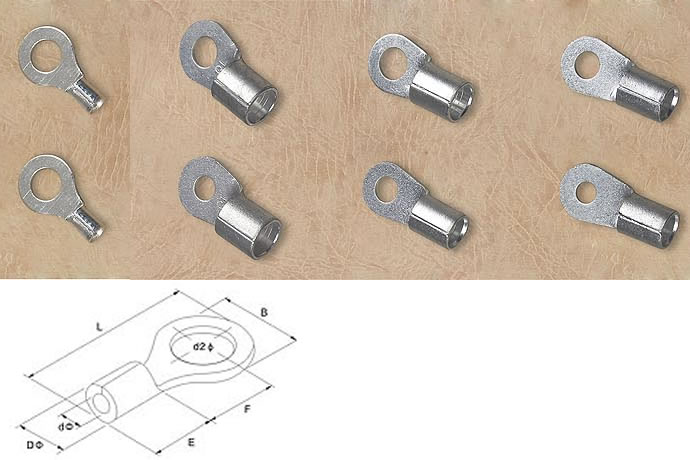

Details :Ring shape naked terminal,wire connector,cable shoes
2.5-4mm2(14-12) I max=37A4-6mm2(12-10) I max=48A6-10mm2(8) Imax=62A10-16mm2(6) Imax=88A35-50mm2(2) Imax=160A16-25mm2(4) Imax=115A50-70mm2(1/0) Imax=215A120-150mm2(4/0) Imax=300A95-120mm2(3/0) Imax=255A70-95mm2(2/0) Imax=235A150-185mm2(250/300MCB) Imax=395A
185-240mm2(300/350MCB) Imax=440A
240-300mm2(400/500MCB) Imax=470A
300-400mm2(500/600MCB) Imax=650A
0.5-1.5mm2(22-16) I max=19A
| ITEM.NO. | USA screw | screw dia.d2(mm) | DIMENSION | |||||
| B(mm) | L(mm) | Fφ(mm) | Eφ(mm) | Dφ(mm) | dφ(mm) | |||
| RNB 1.25-3 | #4 | 3.2 | 5.7 | 12.6 | 4.95 | 4.8 | 3.4 | 1.7 |
| RNBS 1.25-3.5 | #6 | 3.7 | 5.7 | 12.6 | 4.95 | |||
| RNBM 1.25-3.5 | #6 | 3.7 | 6.6 | 14.4 | 6.3 | |||
| RNBL 1.25-3.5 | #6 | 3.7 | 8.0 | 15.8 | 7.0 | |||
| RNBS 1.25-4 | #8 | 4.3 | 6.6 | 14.4 | 6.3 | |||
| RNBL 1.25-4 | #8 | 4.3 | 8.0 | 15.8 | 7.0 | |||
| RNB 1.25-5 | #10 | 5.3 | 8.0 | 15.8 | 7.0 | |||
| RNB 1.25-6 | 1/4 | 6.4 | 11.6 | 21.8 | 11.1 | |||
| RNB 1.25-8 | 5/16 | 8.4 | 11.6 | 21.8 | 11.1 | |||
| RNB 1.25-10 | 3/8 | 10.5 | 13.6 | 25.5 | 13.6 | |||
1.5-2.5mm2(16-14) I max=27A
| ITEM.NO. | USA screw | screw dia.d2(mm) | DIMENSION | |||||
| B(mm) | L(mm) | Fφ(mm) | Eφ(mm) | Dφ(mm) | dφ(mm) | |||
| RNB 2-3 | #4 | 3.2 | 6.6 | 12.3 | 4.3 | 4.8 | 4.1 | 2.3 |
| RNBS 2-3.5 | #6 | 3.7 | 6.6 | 12.3 | 4.3 | |||
| RNBM 2-3.5 | #6 | 3.7 | 6.6 | 16.0 | 7.0 | |||
| RNBL 2-3.5 | #6 | 3.7 | 8.5 | 16.8 | 7.75 | |||
| RNBS 2-4 | #8 | 4.3 | 6.6 | 16.0 | 7.0 | |||
| RNBL 2-4 | #8 | 4.3 | 8.5 | 16.8 | 7.75 | |||
| RNBS 2-5 | #10 | 5.3 | 8.5 | 16.8 | 7.75 | |||
| RNBL 2-5 | #10 | 5.3 | 9.5 | 16.8 | 7.25 | |||
| RNB 2-6 | 1/4 | 6.4 | 12.0 | 21.8 | 11.0 | |||
| RNB 2-8 | 5/16 | 8.4 | 12.0 | 21.8 | 11.0 | |||
| RNB 2-10 | 3/8 | 10.5 | 13.6 | 25.5 | 13.9 | |||
| RNB 2-12 | 1/2 | 13.0 | 19.2 | 3.1 | 16.5 | |||
2.5-4mm2(14-12) I max=37A
| ITEM.NO. | USA screw | screw dia.d2(mm) | DIMENSION | |||||
| B(mm) | L(mm) | Fφ(mm) | Eφ(mm) | Dφ(mm) | dφ(mm) | |||
| RNB 3.5-4 | #8 | 4.3 | 8.0 | 18.0 | 7.7 | 6.0 | 5.0 | 3.0 |
| RNBS 3.5-5 | #10 | 5.3 | 8.0 | 18.0 | 7.7 | |||
| RNBL 3.5-5 | #10 | 5.3 | 12.0 | 21.4 | 7.7 | |||
| RNB 3.5-6 | 1/4 | 6.4 | 12.0 | 21.4 | 7.7 | |||
4-6mm2(12-10) I max=48A
| ITEM.NO. | USA screw | screw dia.d2(mm) | DIMENSION | |||||
| B(mm) | L(mm) | Fφ(mm) | Eφ(mm) | Dφ(mm) | dφ(mm) | |||
| RNB 5.5-3.5 | #6 | 3.7 | 7.2 | 15.7 | 5.9 | 6.8 | 5.6 | 3.4 |
| RNBS 5.5-4 | #8 | 4.3 | 7.2 | 15.7 | 5.9 | |||
| RNBL 5.5-4 | #8 | 4.3 | 9.5 | 19.8 | 8.3 | |||
| RNB 5.5-5 | #10 | 5.3 | 9.5 | 19.8 | 8.3 | |||
| RNB 5.5-6 | 1/4 | 6.4 | 12.0 | 25.8 | 13.0 | |||
| RNB 5.5-8 | 5/16 | 8.4 | 15.0 | 28.0 | 13.7 | |||
| RNB 5.5-10 | 3/8 | 10.5 | 15.0 | 28.0 | 13.7 | |||
| RNB 5.5-12 | 1/2 | 13.0 | 19.2 | 32.4 | 16.0 | |||
6-10mm2(8) Imax=62A
| ITEM.NO. | USA screw | screw dia.d2(mm) | DIMENSION | |||||
| B(mm) | L(mm) | Fφ(mm) | Eφ(mm) | Dφ(mm) | dφ(mm) | |||
| RNB 8-4 | #8 | 4.3 | 8.8 | 23.8 | 9.3 | 8.5 | 7.2 | 4.5 |
| RNBS 8-5 | #10 | 5.3 | 8.8 | 23.8 | 11.1 | |||
| RNBM 8-5 | #10 | 5.3 | 12.0 | 23.8 | 9.3 | |||
| RNBL 8-5 | #10 | 5.3 | 15.0 | 29.8 | 13.8 | |||
| RNBS 8-6 | 1/4 | 6.4 | 12.0 | 23.8 | 9.3 | |||
| RNBL 8-6 | 1/4 | 6.4 | 15.0 | 29.8 | 13.8 | |||
| RNB 8-8 | 5/16 | 8.4 | 15.0 | 29.8 | 13.8 | |||
| RNB 8-10 | 3/8 | 10.5 | 15.0 | 29.38 | 13.8 | |||
| RNB 8-12 | 1/2 | 13.0 | 20.0 | 33.5 | 15.0 | |||
10-16mm2(6) Imax=88A
| ITEM.NO. | USA screw | screw dia.d2(mm) | DIMENSION | |||||
| B(mm) | L(mm) | Fφ(mm) | Eφ(mm) | Dφ(mm) | dφ(mm) | |||
| RNB 14-4 | #8 | 4.3 | 12.0 | 29.8 | 13.3 | 10.5 | 9.0 | 5.8 |
| RNB 14-5 | #10 | 5.3 | 12.0 | 29.8 | 13.3 | |||
| RNBS14-6 | 1/4 | 6.4 | 12.0 | 29.8 | 13.3 | |||
| RNBL 14-6 | 1/4 | 6.4 | 16.0 | 32.8 | 13.3 | |||
| RNB 14-8 | 5/16 | 8.4 | 16.0 | 32.8 | 14.5 | |||
| RNB 14-10 | 3/8 | 10.5 | 16.0 | 32.8 | 14.5 | |||
| RNB 14-12 | 1/2 | 13.0 | 22.0 | 41.0 | 19.5 | |||
16-25mm2(4) Imax=115A
| ITEM.NO. | USA screw | screw dia.d2(mm) | DIMENSION | |||||
| B(mm) | L(mm) | Fφ(mm) | Eφ(mm) | Dφ(mm) | dφ(mm) | |||
| RNBS 22-5 | #10 | 5.3 | 12.2 | 33.2 | 14.5 | 12.0 | 11.5 | 7.7 |
| RNBL 22-5 | #10 | 5.3 | 16.5 | 33.7 | 13.5 | |||
| RNBS 22-6 | 1/4 | 6.4 | 12.2 | 33.2 | 14.5 | |||
| RNBL 22-6 | 1/4 | 6.4 | 6.5 | 33.7 | 13.5 | |||
| RNB 22-8 | 5/16 | 8.4 | 16.5 | 33.7 | 13.5 | |||
| RNB 22-10 | 3/8 | 10.5 | 16.5 | 33.7 | 13.5 | |||
| RNB 22-11 | 7/16 | 11.5 | 22.0 | 42.5 | 19.5 | |||
| RNB 22-12 | 1/2 | 13.0 | 22.0 | 42.5 | 19.5 | |||
35-50mm2(2) Imax=160A
| ITEM.NO. | USA screw | screw dia.d2(mm) | DIMENSION | |||||
| B(mm) | L(mm) | Fφ(mm) | Eφ(mm) | Dφ(mm) | dφ(mm) | |||
| RNB 38-5 | #10 | 5.3 | 15.3 | 39.0 | 18.3 | 14.0 | 13.3 | 9.4 |
| RNB 38-5 | 1/4 | 6.4 | 15.3 | 39.0 | 18.3 | |||
| RNBS 38-8 | 5/16 | 8.4 | 15.3 | 39.0 | 18.3 | |||
| RNBL 38-8 | 5/16 | 8.4 | 22.0 | 42.7 | 17.7 | |||
| RNBS 38-10 | 3/8 | 10.5 | 15.3 | 39.0 | 18.3 | |||
| RNBL 38-10 | 3/8 | 10.5 | 22.0 | 42.7 | 17.7 | |||
| RNB 38-11 | 7/16 | 11.5 | 22.0 | 42.7 | 17.7 | |||
| RNB 38-12 | 1/2 | 13.0 | 22.0 | 42.7 | 17.7 | |||
50-70mm2(1/0) Imax=215A
| ITEM.NO. | USA screw | screw dia.d2(mm) | DIMENSION | |||||
| B(mm) | L(mm) | Fφ(mm) | Eφ(mm) | Dφ(mm) | dφ(mm) | |||
| RNB 60-6 | 1/4 | 6.4 | 22.0 | 49.7 | 20.7 | 18.0 | 15.4 | 11.4 |
| RNB 60-8 | 5/16 | 8.4 | ||||||
| RNB 60-10 | 3/8 | 10.5 | ||||||
| RNB 60-11 | 7/16 | 11.5 | ||||||
| RNB 60-12 | 1/2 | 13.0 | ||||||
| RNB 60-14 | 9/16 | 15.0 | ||||||
| RNB 60-16 | 5/8 | 17.0 | 32.0 | 57.0 | 23.5 | |||
| RNB 60-18 | 11/16 | 19.0 | ||||||
| RNB 60-20 | 3/4 | 21.0 | ||||||
| RNB 60-22 | 7/8 | 23.0 | ||||||
70-95mm2(2/0) Imax=235A
| ITEM.NO. | USA screw | screw dia.d2(mm) | DIMENSION | |||||
| B(mm) | L(mm) | Fφ(mm) | Eφ(mm) | Dφ(mm) | dφ(mm) | |||
| RNB 70-6 | 1/4 | 6.4 | 22.0 | 51.0 | 20.0 | 19.0 | 17.5 | 13.3 |
| RNB 70-8 | 5/16 | 8.4 | ||||||
| RNB 70-10 | 3/8 | 10.5 | ||||||
| RNB 70-11 | 7/16 | 11.5 | ||||||
| RNB 70-12 | 1/2 | 13.0 | ||||||
| RNB 70-14 | 9/16 | 15.0 | ||||||
| RNB 70-16 | 5/8 | 17.0 | 32.0 | 61.0 | 26.0 | |||
| RNB 70-18 | 11/16 | 19.0 | ||||||
| RNB 70-20 | 3/4 | 21.0 | ||||||
| RNB 70-22 | 7/8 | 23.0 | ||||||
95-120mm2(3/0) Imax=255A
| ITEM.NO. | USA screw | screw dia.d2(mm) | DIMENSION | |||||
| B(mm) | L(mm) | Fφ(mm) | Eφ(mm) | Dφ(mm) | dφ(mm) | |||
| RNB 80-6 | 1/4 | 6.4 | 27.0 | 54.2 | 20.7 | 20.0 | 19.5 | 14.5 |
| RNB 80-8 | 5/16 | 8.4 | ||||||
| RNB 80-10 | 3/8 | 10.5 | ||||||
| RNB 80-11 | 7/16 | 11.5 | ||||||
| RNB 80-12 | 1/2 | 13.0 | ||||||
| RNB 80-14 | 9/16 | 15.0 | ||||||
| RNB 80-16 | 5/8 | 17.0 | 32.0 | 68.0 | 32.0 | |||
| RNB 80-18 | 11/16 | 19.0 | ||||||
| RNB 80-20 | 3/4 | 21.0 | ||||||
| RNB 80-22 | 7/8 | 23.0 | ||||||
120-150mm2(4/0) Imax=300A
| ITEM.NO. | USA screw | screw dia.d2(mm) | DIMENSION | |||||
| B(mm) | L(mm) | Fφ(mm) | Eφ(mm) | Dφ(mm) | dφ(mm) | |||
| RNB 100-6 | 1/4 | 6.4 | 28.5 | 55.6 | 20.4 | 21.0 | 22.1 | 16.4 |
| RNB 100-8 | 5/16 | 8.4 | ||||||
| RNB 100-10 | 3/8 | 10.5 | ||||||
| RNB 100-11 | 7/16 | 11.5 | ||||||
| RNB 100-12 | 1/2 | 13.0 | ||||||
| RNB 100-14 | 9/16 | 15.0 | ||||||
| RNB 100-16 | 5/8 | 17.0 | 32.0 | 69.0 | 32.0 | |||
| RNB 100-18 | 11/16 | 19.0 | ||||||
| RNB 100-20 | 3/4 | 21.0 | ||||||
| RNB 100-22 | 7/8 | 23.0 | ||||||
150-185mm2(250/300MCB) Imax=395A
| ITEM.NO. | USA screw | screw dia.d2(mm) | DIMENSION | |||||
| B(mm) | L(mm) | Fφ(mm) | Eφ(mm) | Dφ(mm) | dφ(mm) | |||
| RNB 150-8 | 5/12 | 8.4 | 36.0 | 66.0 | 23.0 | 27.0 | 26.6 | 19.5 |
| RNB 150-10 | 3/8 | 10.5 | ||||||
| RNB 150-11 | 7/16 | 11.5 | ||||||
| RNB 150-12 | 1/2 | 13.0 | ||||||
| RNB 150-14 | 9/16 | 15.0 | ||||||
| RNB 150-16 | 5/8 | 17.0 | ||||||
| RNB 150-18 | 11/16 | 19.0 | ||||||
| RNB 150-20 | 3/4 | 21.0 | 36.0 | 81.0 | 36.0 | |||
| RNB 150-22 | 7/8 | 23.0 | ||||||
| RNB 150-24 | 15/16 | 25.0 | ||||||
| RNB 150-27 | 1 | 28.0 | ||||||
185-240mm2(300/350MCB) Imax=440A
| ITEM.NO. | USA screw | screw dia.d2(mm) | DIMENSION | |||||
| B(mm) | L(mm) | Fφ(mm) | Eφ(mm) | Dφ(mm) | dφ(mm) | |||
| RNB 180-8 | 5/12 | 8.4 | 38.0 | 696.0 | 24.5 | 28.5 | 28.5 | 21.0 |
| RNB 180-10 | 3/8 | 10.5 | ||||||
| RNB 180-11 | 7/16 | 11.5 | ||||||
| RNB 180-12 | 1/2 | 13.0 | ||||||
| RNB 180-14 | 9/16 | 15.0 | ||||||
| RNB 180-16 | 5/8 | 17.0 | ||||||
| RNB 180-18 | 11/16 | 19.0 | ||||||
| RNB 180-20 | 3/4 | 21.0 | 38.5 | 86.6 | 36.0 | |||
| RNB 180-22 | 7/8 | 23.0 | ||||||
| RNB 180-24 | 15/16 | 25.0 | ||||||
| RNB 180-27 | 1 | 28.0 | ||||||
240-300mm2(400/500MCB) Imax=470A
| ITEM.NO. | USA screw | screw dia.d2(mm) | DIMENSION | |||||
| B(mm) | L(mm) | Fφ(mm) | Eφ(mm) | Dφ(mm) | dφ(mm) | |||
| RNB 200-8 | 5/12 | 8.4 | 44.0 | 72.0 | 24.5 | 31.5 | 32.5 | 24.0 |
| RNB 200-10 | 3/8 | 10.5 | ||||||
| RNB 200-11 | 7/16 | 11.5 | ||||||
| RNB 200-12 | 1/2 | 13.0 | ||||||
| RNB 200-14 | 9/16 | 15.0 | ||||||
| RNB 200-16 | 5/8 | 17.0 | ||||||
| RNB 200-18 | 11/16 | 19.0 | ||||||
| RNB 200-20 | 3/4 | 21.0 | 44.0 | 91.0 | 37.5 | |||
| RNB 200-22 | 7/8 | 23.0 | ||||||
| RNB 200-24 | 15/16 | 25.0 | ||||||
| RNB 200-27 | 1 | 28.0 | ||||||
300-400mm2(500/600MCB) Imax=650A
| ITEM.NO. | USA screw | screw dia.d2(mm) | DIMENSION | |||||
| B(mm) | L(mm) | Fφ(mm) | Eφ(mm) | Dφ(mm) | dφ(mm) | |||
| RNB 325-8 | 5/12 | 8.4 | 50.0 | 88.0 | 33.5 | 35.5 | 37.5 | 28.0 |
| RNB 325-10 | 3/8 | 10.5 | ||||||
| RNB 325-11 | 7/16 | 11.5 | ||||||
| RNB 325-12 | 1/2 | 13.0 | ||||||
| RNB 325-14 | 9/16 | 15.0 | ||||||
| RNB 325-16 | 5/8 | 17.0 | ||||||
| RNB 325-18 | 11/16 | 19.0 | ||||||
| RNB 325-20 | 3/4 | 21.0 | 50.5 | 105.7 | 45.0 | |||
| RNB 325-22 | 7/8 | 23.0 | ||||||
| RNB 325-24 | 15/16 | 25.0 | ||||||
| RNB 325-27 | 1 | 28.0 | ||||||
