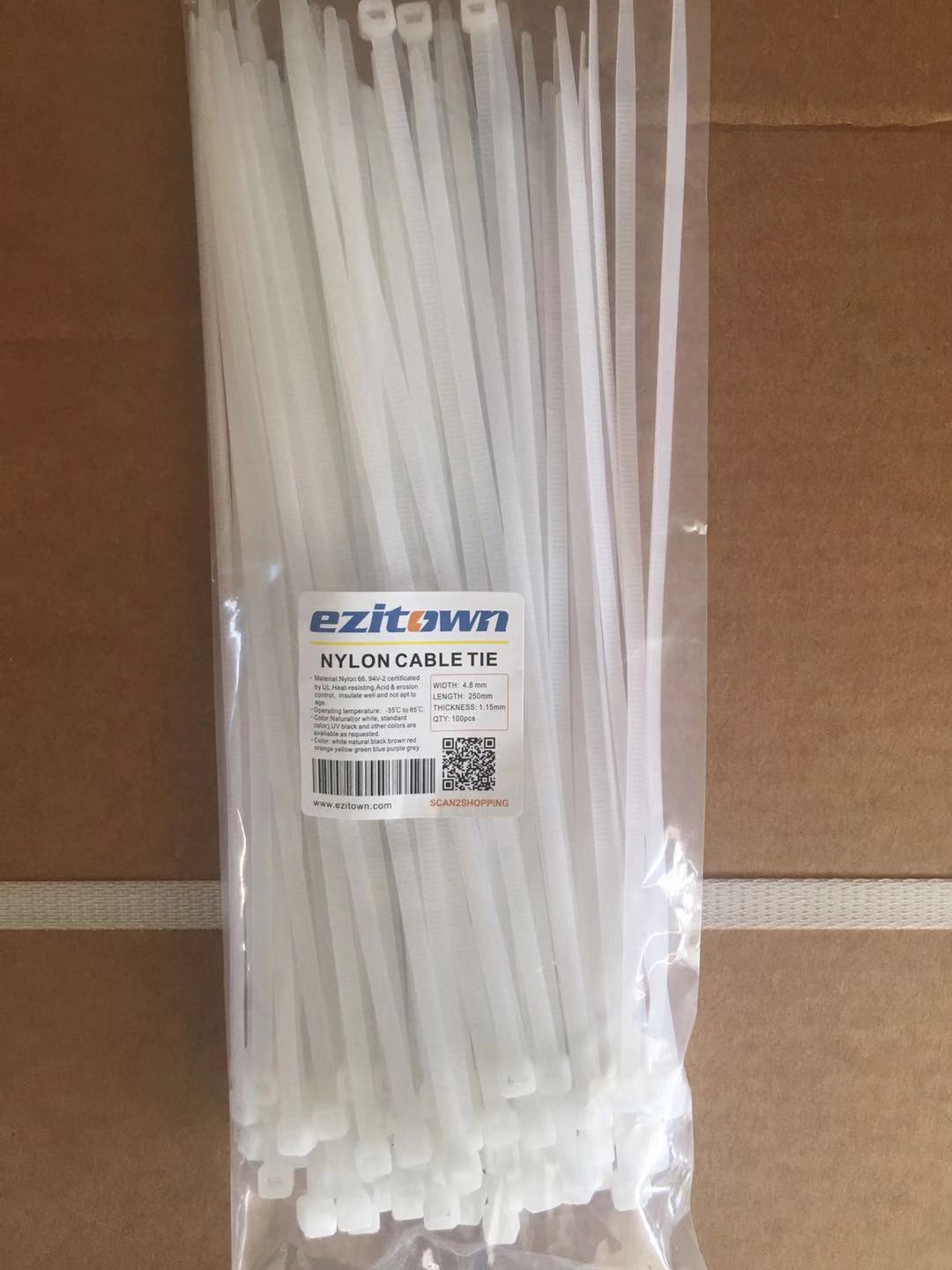

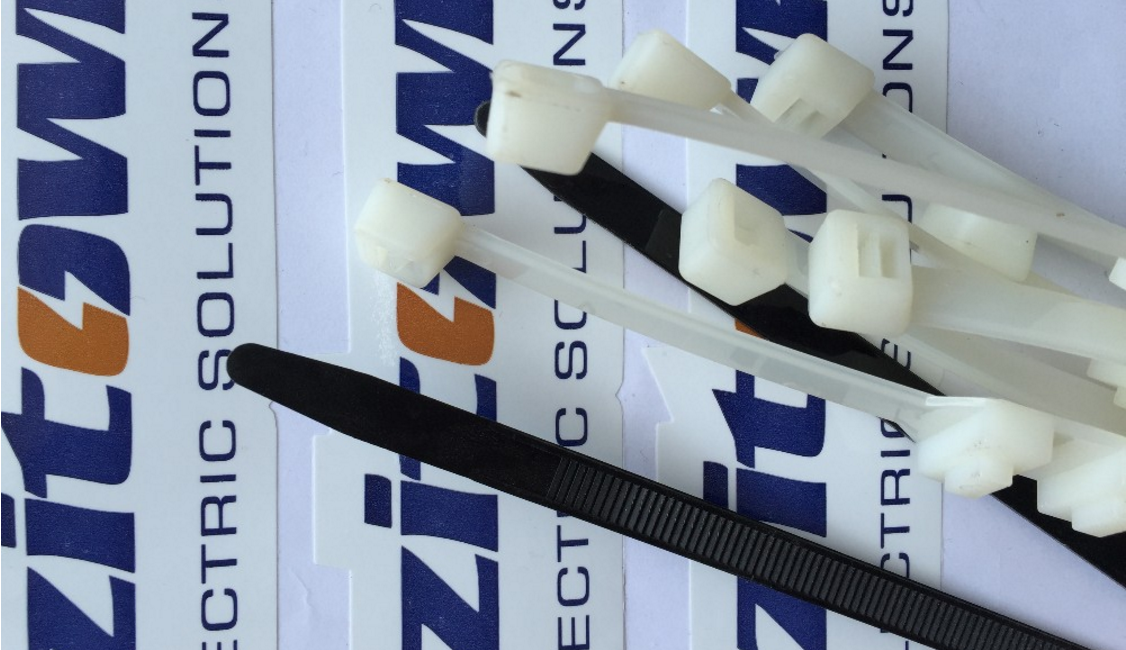

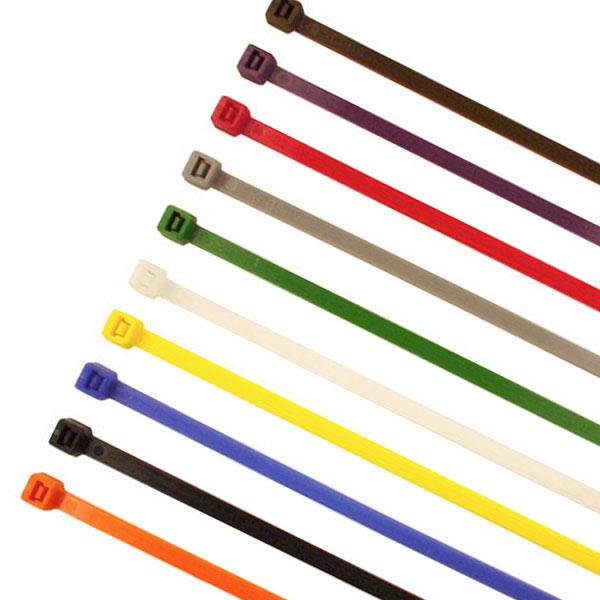

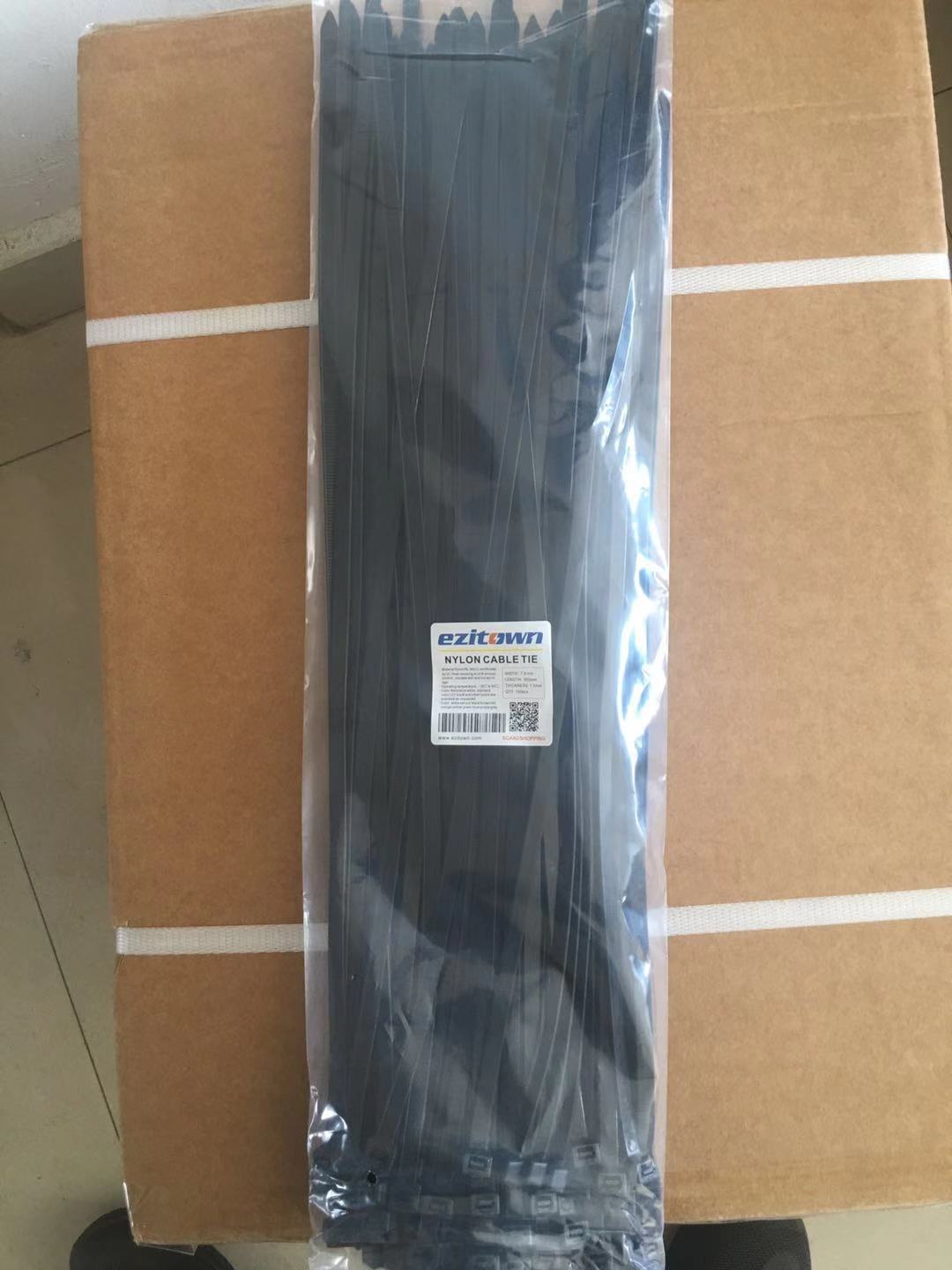

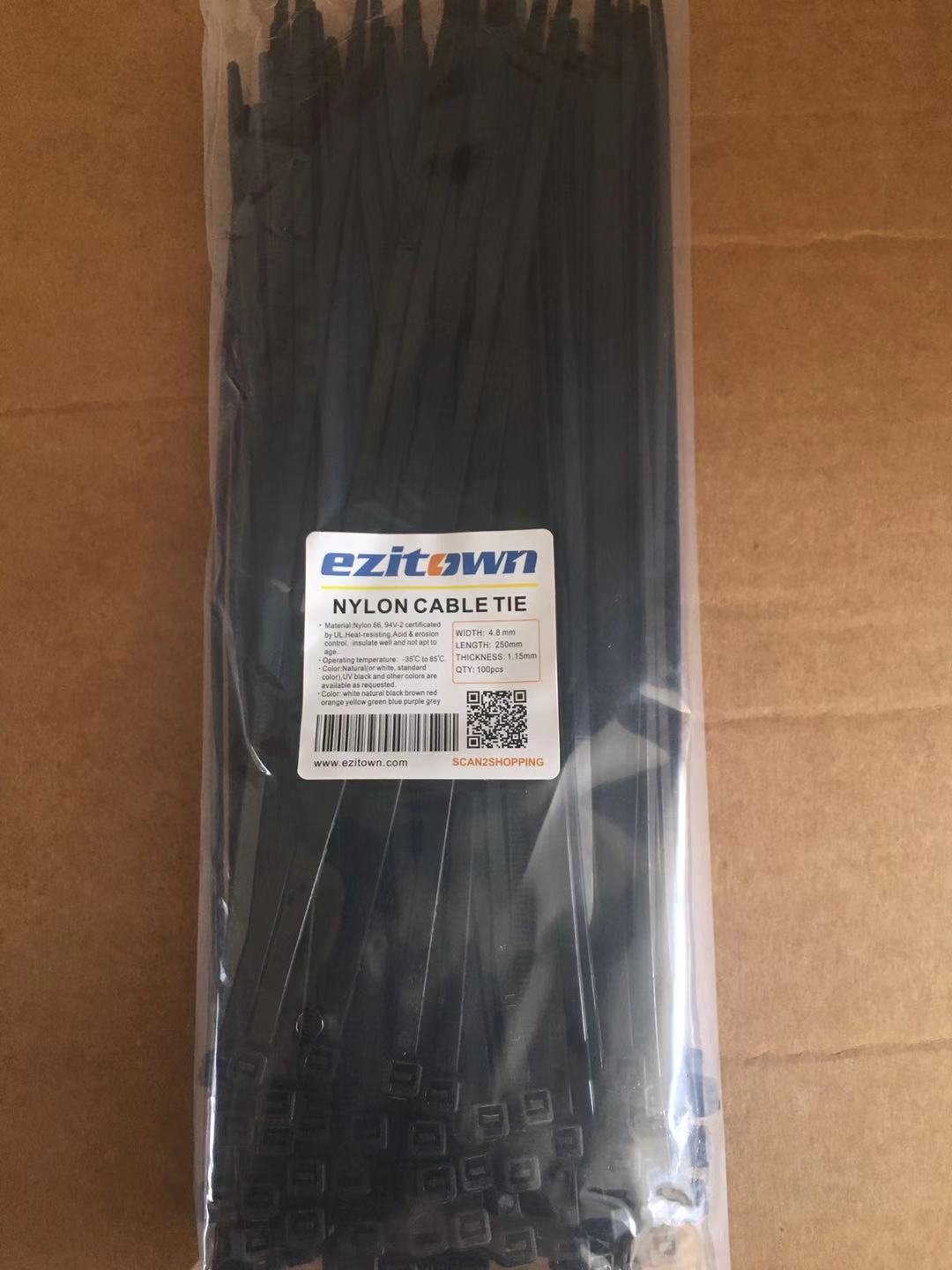

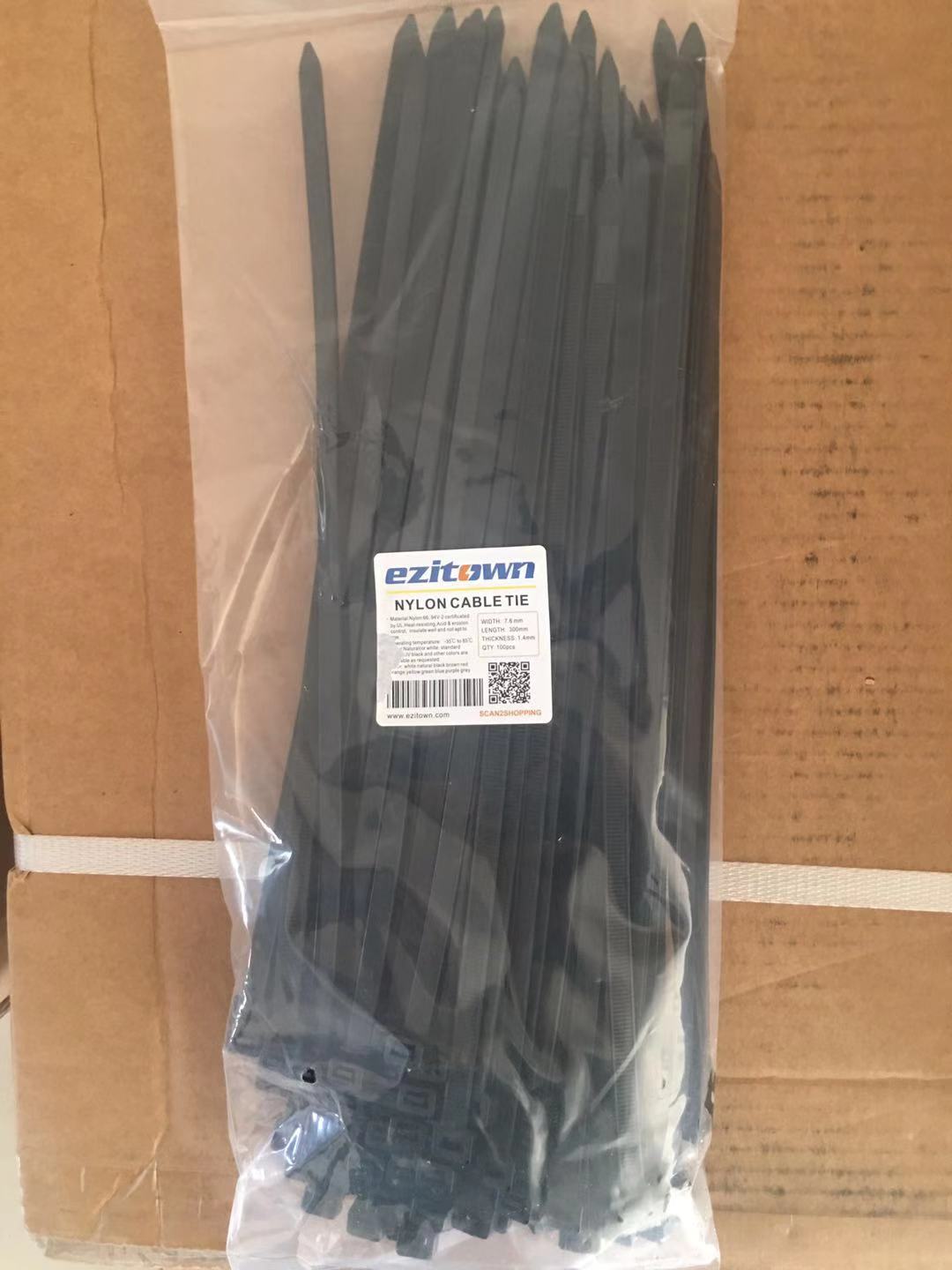

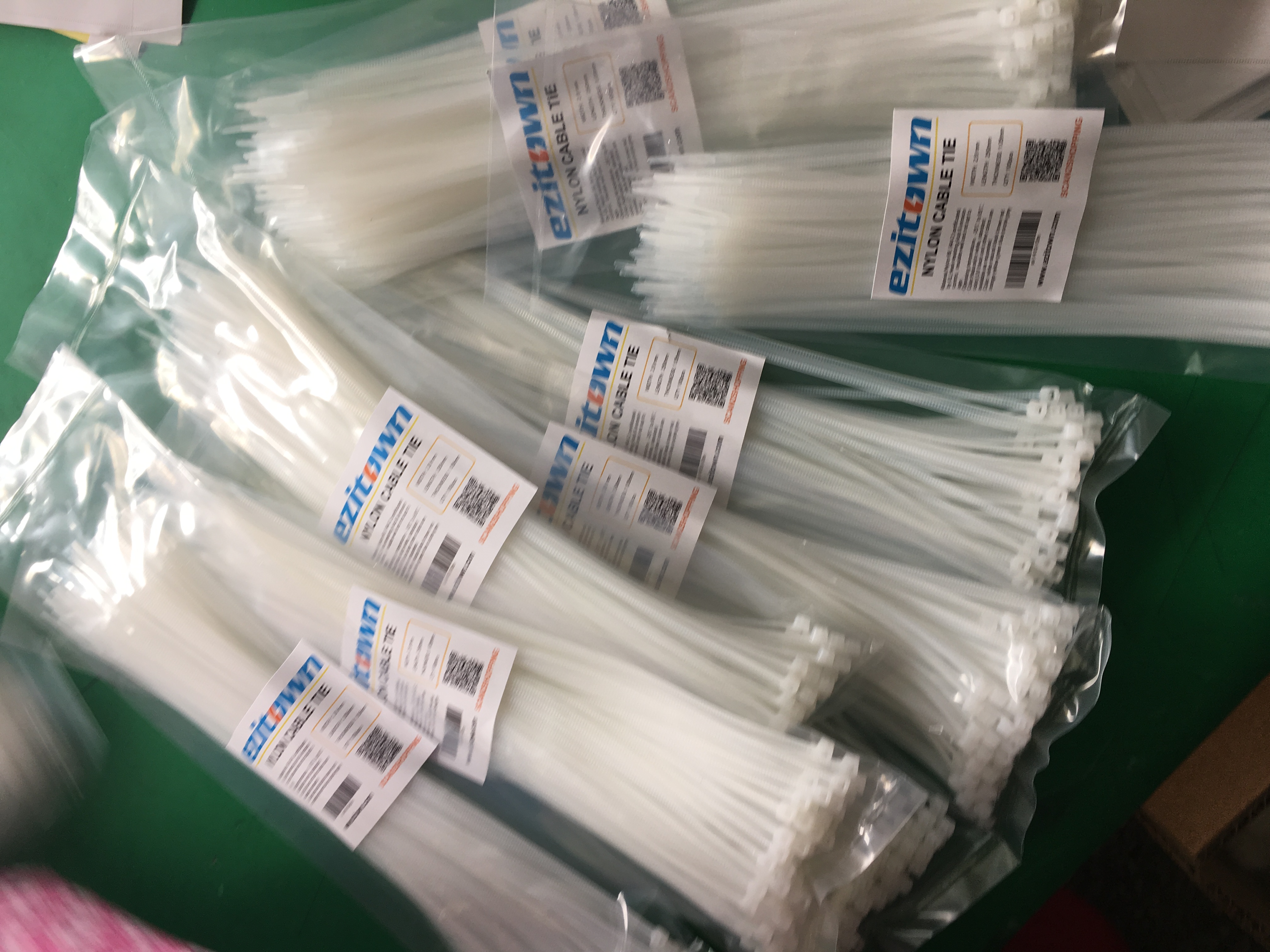

Selflock Nylon Cable Ties

Selflock nylon cable ties Item:CT

Details :Nylon cable ties,self lock cable ties,cable zip ties,heat resistant zip ties,plastic zip ties,zip tie manufacturer

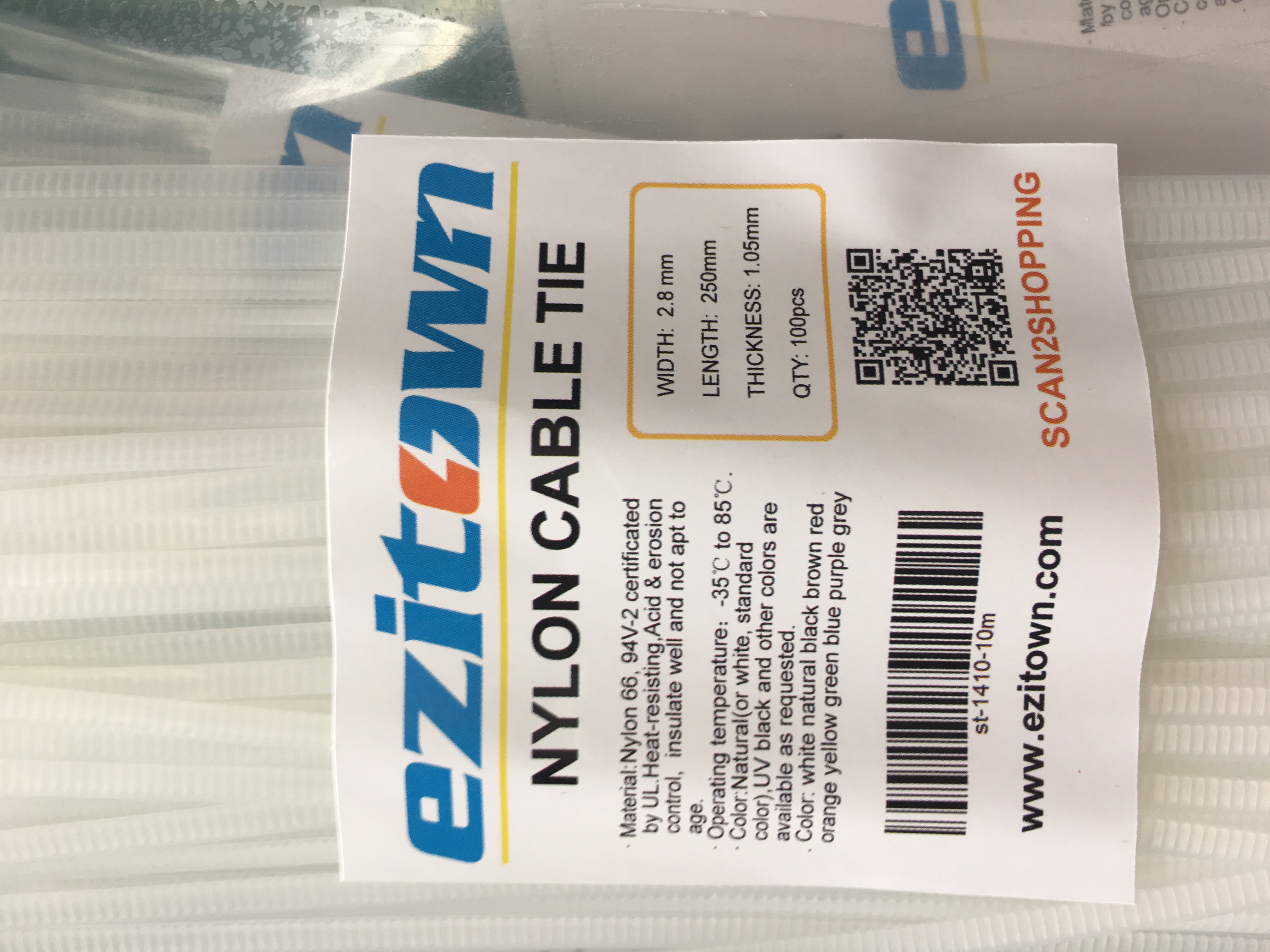

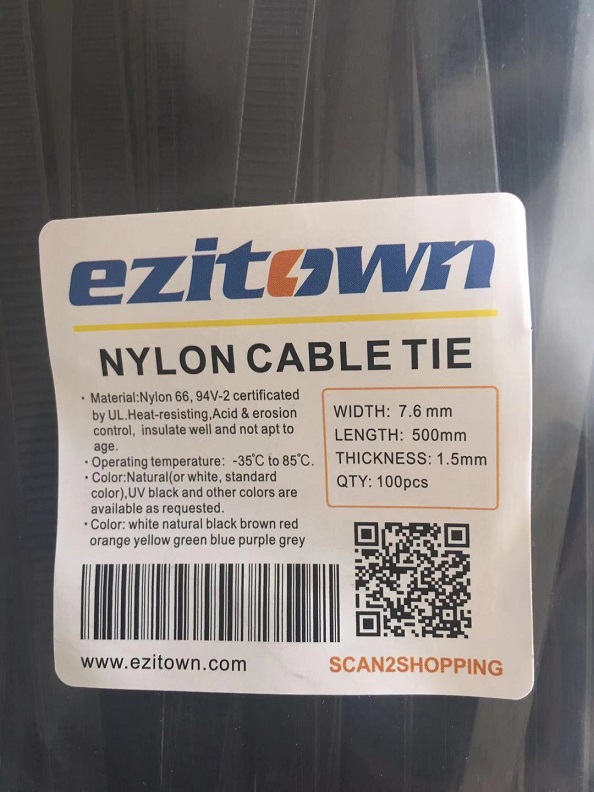

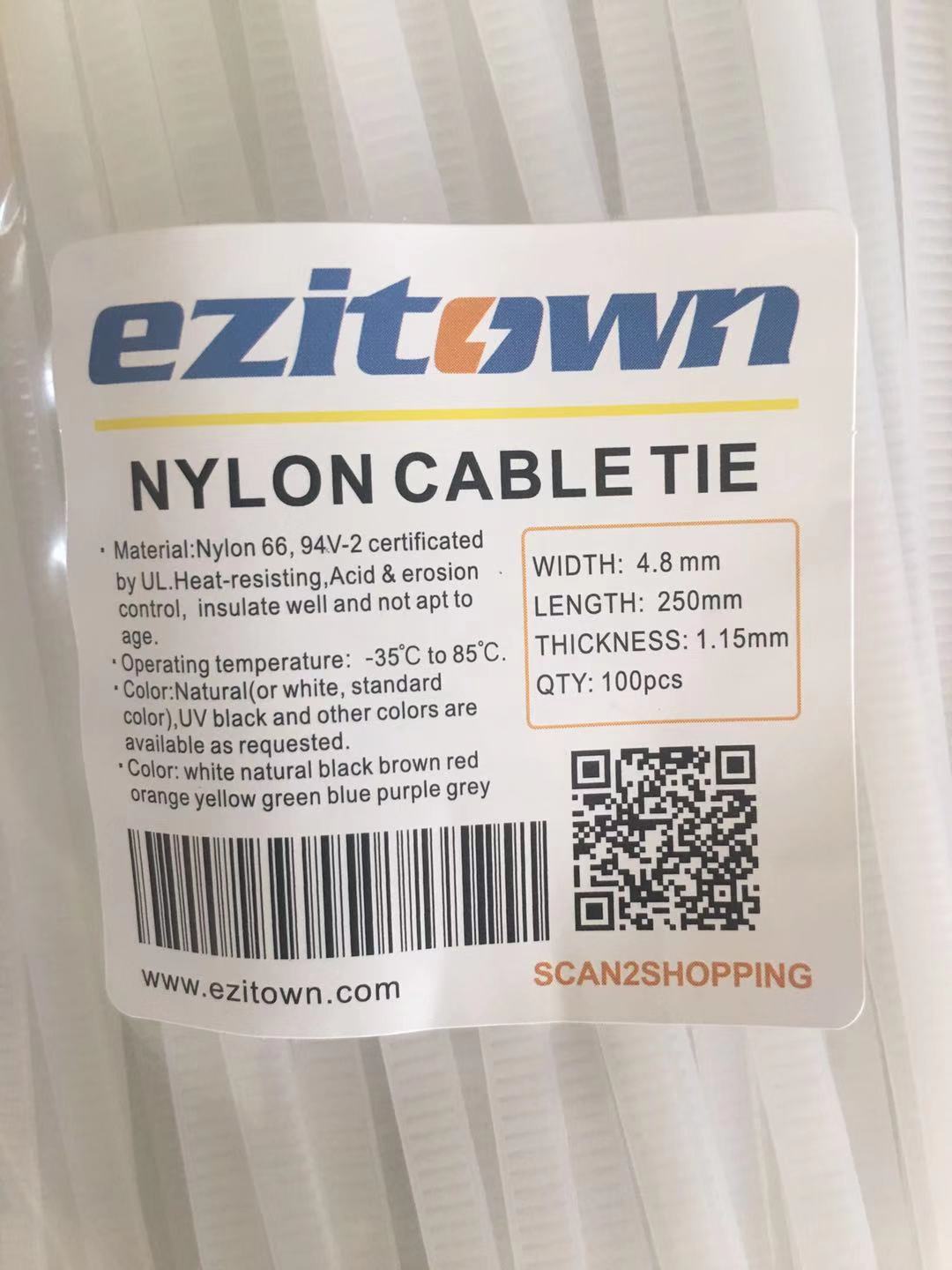

Material : Nylon 66, 94V-2 certificated by UL.Heat-resisting,Acid & erosion control, insulate well and not apt to age.

Application

Selflock nylon cable tie Nylon cable ties, by definition is something strapping tape, nylon cable ties are also known as: cable ties, cable ties, cable ties, cable ties. Nylon cable ties are divided into: self-locking nylon cable ties, nylon cable ties signage, live buckle nylon cable ties, tamper (seals) nylon cable ties, nylon cable ties fixed head, bolt (plane head) nylon cable ties, beads hole nylon cable ties, fish bone nylon cable ties, nylon cable ties and other weathering .

Due to the special nature of nylon cable ties (thin, plastic injection process is relatively large), the mold, injection molding processes and materials are quite particular about the new manufacturers are generally require a long process of exploration in order to produce qualified products. Design of retaining function (except for live button), only more and more tightly tie, there are detachable cable tie (noose). Nylon Cable Ties UL approved Nylon 66 (Nylon 66) made of plastic material, fireproof grade 94V-2, has good acid, corrosion, insulation, not aging, bear strong. Operating temperature is -20 ℃ to +80 ℃ (ordinary nylon 66). Widely used in electronics factory, bundled TV, computers and other internal wiring, lighting, electrical, electronic toys and other products within the lines fixed, mechanical equipment, oil pipe fixed, solid cable lines on the ship, bicycle or vehicle packing bundling other objects can also be used in agriculture, horticulture, handicrafts and other bundled items. The product has a lashing fast, good insulation, self-locking solid, easy to use features.

Specification

selflock nylon cable ties

ITEM.NO.	Length		Width(mm)	Bundle Diameter E(mm)	Min.loop Tensile Strength
ITEM.NO.	INCH	MM	Width(mm)	Bundle Diameter E(mm)	LBS	KGS
3×60	2 _3/8″	60	2.5	2-11	18	8
3×80	3 _3/16″	80	2.5	2-16	18	8
3×90	3 _5/8″	90	2.5	2-18	18	8
3×100	4″	100	2.5	2-22	18	8
3×120	4 _3/4″	120	2.5	2-30	18	8
3×140	5 _1/2″	140	2.5	2-33	18	8
3×150	6″	150	2.5	2-35	18	8
3×160	6 _1/4″	160	2.5	2-40	18	8
3×200	8″	200	2.5	3-50	18	8
4×100	4″	100	3.5	3-22	40	18
4×120	4 _3/4″	120	3.5	3-30	40	18
4×140	5 _1/2″	140	3.5	3-33	40	18
4×150	6″	150	3.5	3-35	40	18
4×180	7″	180	3.5	3-42	40	18
4×200	8″	200	3.5	3-50	40	18
4×220	8 _5/8″	220	3.5	3-58	40	18
4×250	10″	250	3.5	3-65	40	18
4×280	11″	280	3.5	3-70	40	18
4×300	11 _5/8″	300	3.5	3-80	40	18
4×370	14 _1/2″	370	3.5	3-102	40	18
5×120	4 _3/4″	120	4.7	3-24	50	22
5×180	7″	180	4.7	3-42	50	22
5×190	7 _1/2″	190	4.7	3-46	50	22
5×200	8″	200	4.7	3-50	50	22
5×250	10″	250	4.7	3-65	50	22
5×280	11″	280	4.7	3-70	50	22
5×300	11 _8/5″	300	4.7	3-82	50	22
5×350	13 _3/4″	350	4.7	3-90	50	22
5×380	15″	380	4.7	3-102	50	22
5×400	15 _3/4″	400	4.7	3-105	50	22
5×430	17″	430	4.7	3-110	50	22
5×450	17 _3/4″	450	4.7	3-130	50	22
5×500	19 _11/16″	500	4.7	3-150	50	22
8×150	6″	150	6.8	3-33	85	38
8×180	7″	180	6.8	3-42	85	38
8×200	8″	200	6.8	3-50	85	38
8×250	10″	250	7.5	4-63	120	55
8×300	11 _5/8″	300	7.5	4-82	120	55
8×350	13 _3/4″	350	7.5	4-90	120	55
8×370	14 _1/4″	370	7.5	4-98	120	55
8×400	15 _3/4″	400	7.5	4-105	120	55
8×450	17 _3/4″	450	7.5	4-118	120	55
8×500	19 _11/16″	500	7.5	4-150	120	55
*new 8×550	21 _1/16″	550	7.5	4-160	120	55
*new 8×600	23 _5/8″	600	7.5	4-170	120	55
8×750	29 _9/16″	750	7.5	4-220	120	55
9×450	17 _3/4″	450	9.0	4-118	175	80
9×530	20 _3/4″	530	9.0	8-155	175	80
9×550	21 _1/16″	550	9.0	8-160	175	80
9×650	25 _9/16″	650	9.0	8-190	175	80
9×700	27 _1/2″	700	9.0	10-205	175	80
9×760	30″	760	9.0	10-225	175	80
9×920	36 _1/4″	920	9.0	10-265	175	80
9×1020	40 _1/6″	1020	9.0	10-295	175	80
9×1150	45 _1/4″	1150	9.0	10-310	175	80
9×1220	48″	1210	9.0	10-340	175	80
9×1350	53″	1350	9.0	10-380	175	80
10×450	17 _3/4″	450	10.0	10-125	200	91
10×500	19 _11/16″	500	10.0	12-150	200	91
12×300	11 _5/8″	300	12.7	12-82	250	114
12×400	15 _3/4″	400	12.7	12-105	250	114
12×540	21 _1/4″	540	12.7	14-155	250	114
12×650	25 _9/16″	650	12.0	14-190	250	114
12×750	29 _9/16″	750	12.0	10-220	250	114
12×780	30 _3/4″	780	12.7	14-230	250	114
13×540	21 _1/4″	540	13.0	14-155	250	114
1.8×100	4″	100	1.8	2-22	14	6.5
1.9×120	4 _3/4″	120	1.9	2-30	14	6.5
1.9×150	6″	150	1.9	2-35	14	6.5
2.2×60	2 _3/8″	60	2.2	2-11	18	8
2.2×80	3 _3/16″	80	2.2	2-18	18	8
2.2×100	4″	100	2.2	2-22	18	8
2.2×120	4 _3/4″	120	2.2	2-30	18	8
2.2×150	6″	150	2.2	2-35	18	8
2.2×200	8″	200	2.2	3-50	18	8
2.9×150	6″	150	2.9	3-35	33	15
2.9×200	8″	200	2.9	3-50	33	15
2.9×250	10″	250	2.9	3-65	33	15
2.9×300	11 _5/8″	300	2.9	3-80	33	15
3.2×150	6″	150	3.2	3-35	40	18
3.2×180	7″	180	3.2	3-42	40	18
3.2×200	8″	200	3.2	3-50	40	18
3.2×250	10″	250	3.2	3-65	40	18
3.2×300	11 _5/8″	300	3.2	3-80	40	18
3.7×350	13 _3/4″	350	3.7	3-90	40	18
3.7×400	15 _3/4″	400	3.7	3-105	40	18
4.2×180	7″	180	4.2	3-42	50	22
4.2×200	8″	200	4.2	3-50	50	22
4.2×250	10″	250	4.2	3-65	50	22
4.2×300	11 _5/8″	300	4.2	3-80	50	22
4.2×350	13 _3/4″	350	4.2	3-90	50	22
4.2×380	15″	380	4.2	3-102	50	22
4.2×400	15 _3/4″	400	4.2	3-105	50	22
5.2×180	7″	180	5.2	3-42	65	30
5.2×200	8″	200	5.2	3-50	65	30
5.2×250	10″	250	5.2	3-65	65	30
5.2×300	11 _5/8″	300	5.2	3-80	65	30
5.5×350	13 _3/4″	350	5.5	3-90	65	30
5.5×400	15 _3/4″	400	5.5	3-105	65	30
5.5×500	19 _11/16″	500	5.5	3-150	65	30
6.0×270	10 _5/8″	270	6.0	4-65	65	30
6.5×250	10″	250	6.5	4-65	85	38
6.5×300	11 _5/8″	300	6.5	4-80	85	38
6.5×350	13 _3/4″	350	6.5	4-90	85	38
6.5×400	15 _3/4″	400	6.5	4-105	85	38
6.5×450	17 _3/4″	450	6.5	4-130	85	38
6.5×500	19 _11/16″	500	6.5	4-150	85	38
