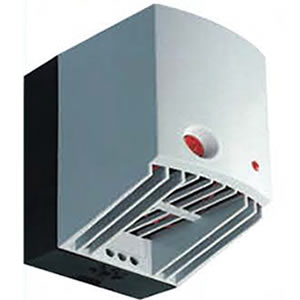

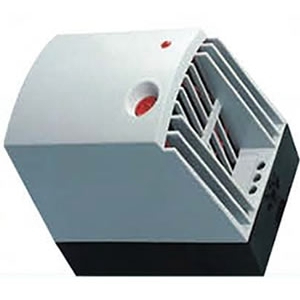

Semiconductor fan heater

Item : CR 027

▋ Compact heater
▋ Heating capacity adjusts to ambient temperature
▋ Adjustable temperature range
▋ Clip fixing
▋ Optical indicator
▋ Temperature safety cut-out

Semiconductor fan heater prevent the formation of condensation and ensure en even temperature in switch and control equipment. The built-in regulator is used to set the desired temperature.

Semiconductor fan heater

Semiconductor fan heater prevent the formation of condensation and ensure en even temperature in switch and control equipment. The built-in regulator is used to set the desired temperature.

Technical Data
Heating element PTC resistor, self regulating and temperature limiting
Temperature safety cut-out to protect against overheating in case of fan failure
Axial fan, ball bearing airflow see table
service life 50,000h at 25℃ (77°F)
Connection 2-pole clamp 2.5mm2, clamping torque 0.8Nm max.
Casing plastic according to UL94 V-0, light grey
Optical indicator thermostat control lamp
Mounting clip for 35mm DIN rail, EN 50022
Fitting position vertical

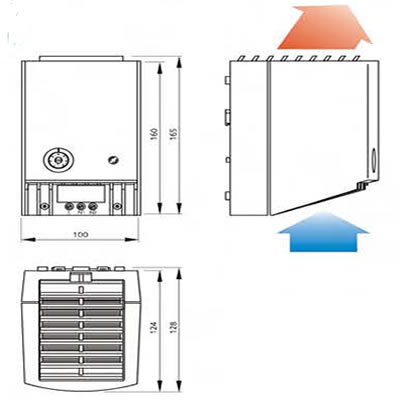

Dimensions 100×128×165mm
Operating / Storage temperature -45 to +70℃ (-49 to +158°F)
Protection type / Protection class IP20 / Ⅱ(double insulated)

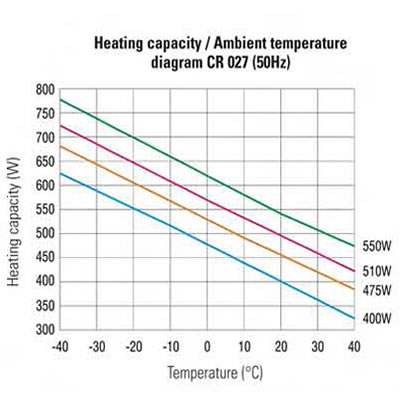

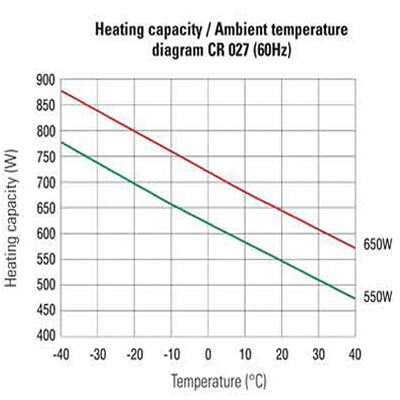

Art. No. Operating voltage Heating capacity* (50Hz) Heating capacity* (60Hz) Inrush current max. Airflow, free flow Setting range Temp. regulator Weight(approx.)
02700.0-00 220-240VAC, 50/60Hz 475W 550W 11.0A 35m3/h 0 to +60℃ 0.90kg
02701.0-00 220-240VAC, 50/60Hz 550W 650W 13.0A 45m3/h 0 to +60℃ 1.10kg
02700.9-00 100-120VAC, 50/60Hz 400W 550W 14.0A 35m3/h +32 to +140°F 0.90kg
02701.9-00 100-120VAC, 50/60Hz 510W 650W 15.0A 45m3/h +32 to +140°F 1.10kg
*at 20℃(68°F) ambient temperature
