Spring terminal block phoenix ST 1.5/2.5
Item : phoenix ST 1.5
Spring terminal block phoenix ST 1.5/2.5
Item : phoenix ST 2.5
phoenix ST series spring terminal block,terminal block spring type
Item : phoenix ST 1.5
Item : phoenix ST 2.5
Item : phoenix ST 1.5
Details :
|

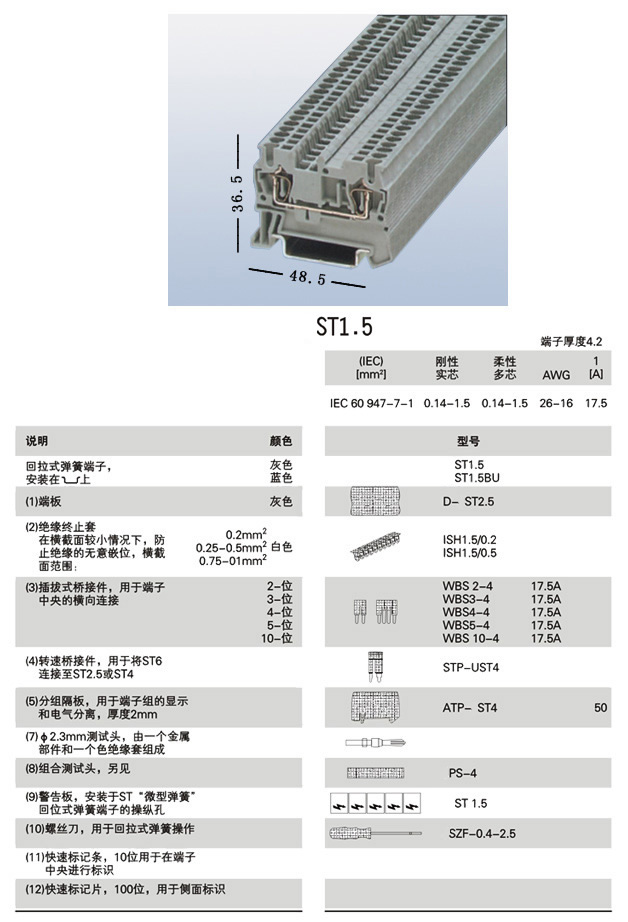

Model: ST1.5
|
|||
|
Rated voltage
|
600V
|
||
|
Rated Current
|
17.5A
|
||
|
Wire
|
0.2-1.5mm 2
|
||
|
Thickness / length / thickness of the end plate
|
4.2/48.5/2.2mm
|
||
|
Height (NS35: 7.5 / NS35: 15 / NS32)
|
36.5/44
|
||
|
Rated impulse voltage / pollution degree
|
6kV / 3
|
||
|
Insulation material / flammability rating
|
PA/V-0
|
||
|
Explanation
|
Model
|
Number of packages
|
|
|
(1) Terminals
|
ST1.5
|
50
|
|
|
(2) the end plate
|
D-ST1.5D
|
50
|
|
|
(3) fixed to pieces
|
2 – position
|
||
|
3 – position
|
|||
|
5 – bit
|
|||
|
10 – bit
|
FBS10-4
|
10
|
|
|
(4) ladder adapter
|
|||
|
(5) switches the bridge member
|
|||
|
(6) the spacer
|
|||
|
(7) grouping spacer, 1.5mm thick
|
ATP-PC
|
50
|
|
|
(8) Test plug socket
|
|||
|
(9) Insulation Test plug socket
|
|||
|
(10) mark of
|
ZB4
|
||
Item : phoenix ST 2.5
Details :

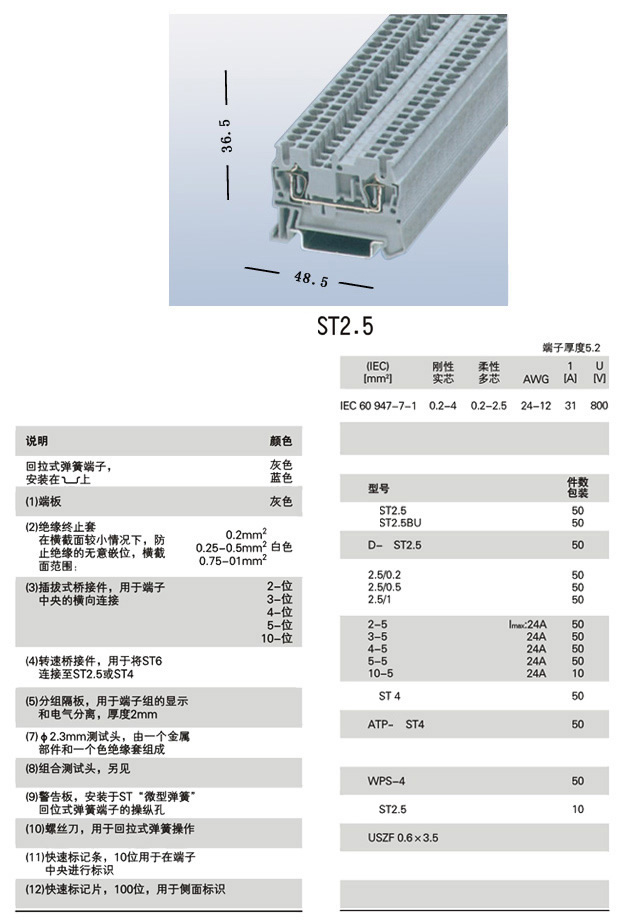

| Model: ST2.5 | |||
| Rated voltage | 800V | ||
| Rated Current | 31A | ||
| Line Path | 0.2-4mm 2 | ||
| Thickness / length / thickness of the end plate | 5.2/48.5/2.2mm | ||
| Height (NS35: 7.5 / NS35: 15 / NS32) | 36.5/44 | ||
| Rated impulse voltage / pollution degree | 8kV / 3 | ||
| Insulation material / flammability rating | PA/V-0 | ||
| Explanation | Model | Number of packages | |
| (1) Terminals | ST2.5 | 50 | |
| (2) the end plate | D-ST 2.5 | 50 | |
| (3) plug-in bridge | 2 – position | FBS2-5 | |
| 3 – position | FBS3-5 | ||
| 5 – bit | FBS5-5 | ||
| 10 – bit | FBS10-5 | 10 | |
| (4) ladder adapter | |||
| (5) side plug bridge pieces | 2 – position | ||
| 3 – position | |||
| 10 – bit | |||
| (6) with insulation pad quickly bridge pieces,10 | |||
| (7) insulation pad fast | |||
| (8) switching bridge member | |||
| (9) a spacer | |||
| (10) a spacer group, thickness 2mm | ATP-ST4 | 50 | |
| (11) Test plug socket | |||
| (12) Insulation Test plug socket | |||
| (13) mark of | ZB5 | ||
