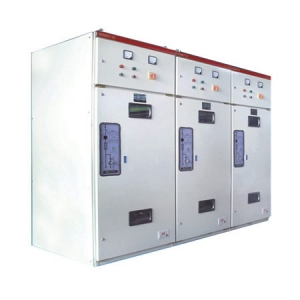

HXGN17-12 box-type metal-enclosed switchgear
Item : HXGN17
Details :
HIGH VOL TAGE
Switchgear and
Control enquipment
HXGN17-12 box-type fixed metal-enclosed switchgear
metal-enclosed switchgear
HXGN17-12-type fixed metal enclosed switchgear(refered to As Ring Main Unit)
si the rated voltage of 12kv, rated frequency 50Hz AC high-voltage electrical equipment
installations,mainly fou three-phase ring,terminai distribution network and industrial electrial equipment,from the acceptance,distribution of power and other effects, it is aiso suitable for load box-type substaion
Normal working conditions
Environment temperature:-25℃~+40℃
Altitude:≤1000M
Relative humidity: daily average shall not exceed 95%,and
Monthly anerage shall not exceed 90%.
Earthquake intensity:≤8 degree
Lnstallation & onperation: location forinstalling shall be no fire or
Explosion danger,nocorrosive gas or dust,no sharp impact.if you have
Any requirement,please contact with us and negotiate with us.
Item
|
Unit
|
Data
|
Rated voltage
|
kV
|
12
|
Rated frequency
|
Hz
|
50/60
|
Main busbar rated current
|
A
|
630
|
Rated short-time withstand current of Main circuit and ground loops
|
kA/S
|
20/3
|
Rated peak withstand current of Main circuit and ground loops
|
kA
|
50
|
Rated short-circuit making current of Main circuit and ground loops
|
kA
|
50
|
Rated current breaking times of load switch
|
次
|
100
|
Rated transfer current
|
A
|
1700
|
Maximum rated current of fuse
|
A
|
160
|
Breaking current of fuse
|
kA
|
31.5-50
|
Mechanical life
|
次Times
|
2000
|
Power frequency withstand voltage(1min)
|
kv
|
42/48
|
Lightning impuise withstand voltage
|
kv
|
75/85
|
Power frequency withstand voltage(1min)secondary circuit
|
kv
|
2
|
Protection degree
|
l3x
|

HXGN17-12 box-type metal-enclosed switchgear
