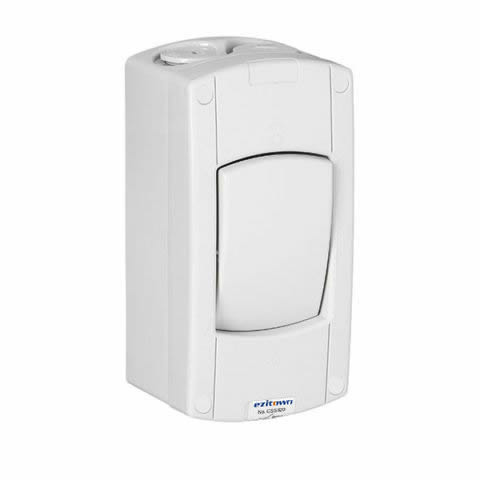

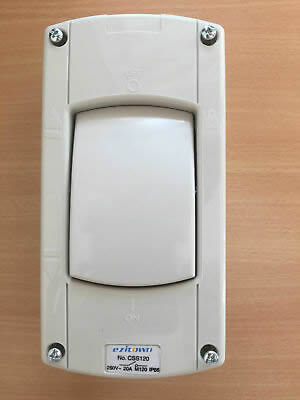

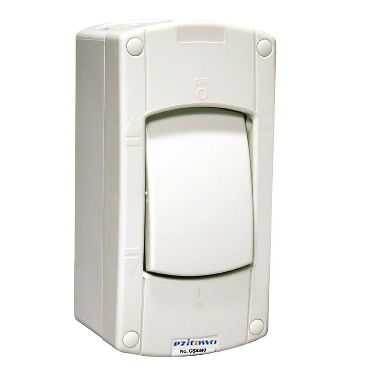

Aquaseal Isolator Switch Tss series

Tss series aquaseal isolator switch /Tss series waterproof switch is a breakthrough in weatherproof isolator technology,it`s the first product of its kind to feature an istegralco-molded sealing system that ensures IP66 protection is maintained and there are no gaskets to get lost or damaged.

Match this with Tss innovations in isolator switch design and you have the ideal product for every isolator application.Aquaseal`s modern design is neat and compact and the large actuator switch is easy to use with gloved hands.it also has a locking off.



Auqaseal Tss series isolators switch waterproof switch come in 20A,32A and 40A ratings and are available in single,double,triple pole and four pole versions.two 25mm threaded entries at the top and 2x20mm at the bottom enable easy conduit access,there ar e also 25mm cut-out gudes at the back of the unit.large 8mm diameter terminals and fixed looping terminals also make Aquaseal easy to install.

Aquaseal Isolator Switch MAX current up to 40A

Aquaseal Isolator Switch Tss seriesAquaseal Isolator Switch Tss series

Base Mounted Switch

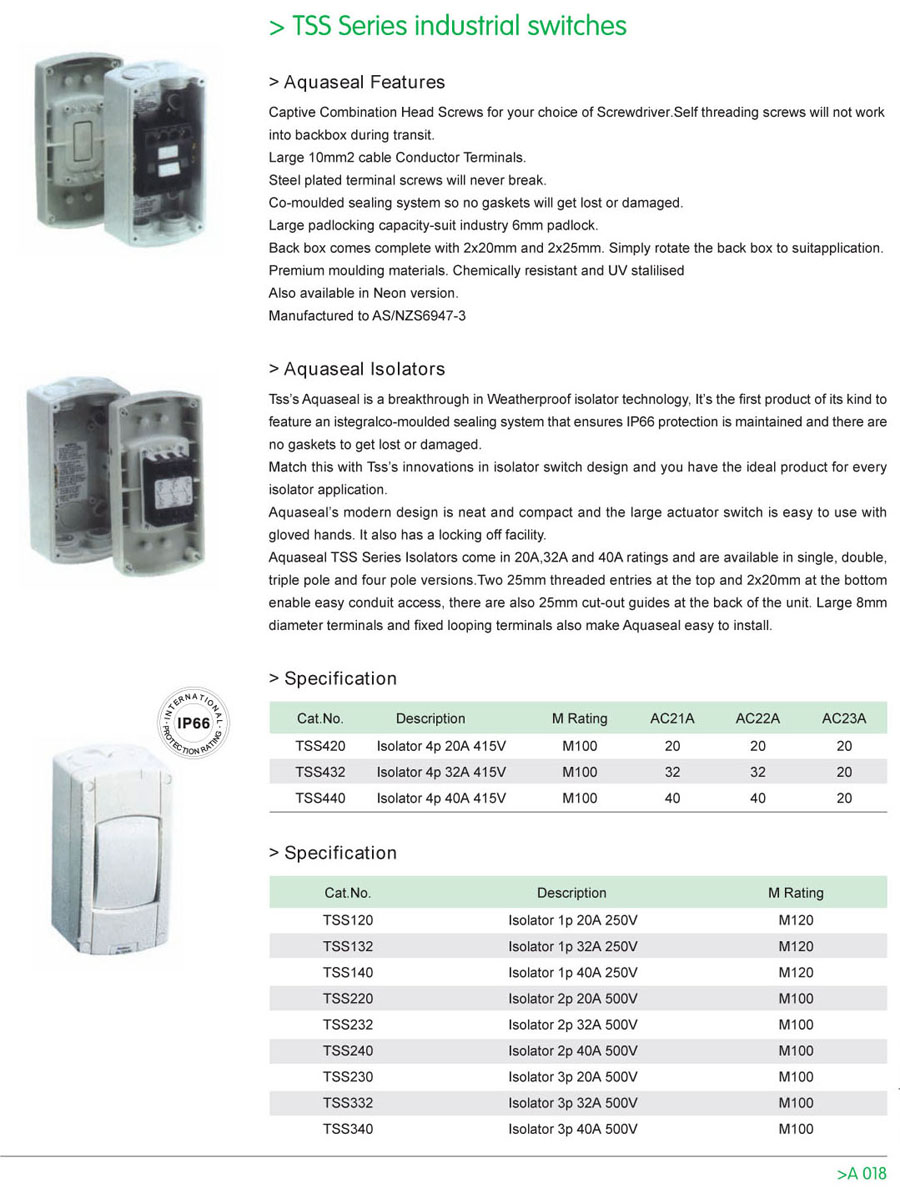

Cat.No. Description M Rating AC21A AC22A AC23A
TSS420 Isolator 4p 20A 415V M 100 20 20 20
TSS432 Isolator 4p 32A 415V 32 32 20
TSS440 Isolator 4p 40A 415V 40 40 20

Base Mounted Switch

Cat.No. Description M Rating
TSS120 Isolator 1p 20A 250V M120
TSS132 Isolator 1p 32A 250V
TSS140 Isolator 1p 40A 250V
TSS220 Isolator 2p 20A 500V M100
TSS232 Isolator 2p 32A 500V
TSS240 Isolator 2p 40A 500V
TSS230 Isolator 3p 20A 500V
TSS332 Isolator 3p 32A 500V
TSS340 Isolator 3p 40A 500V
