Electrical Metal Tube Conduit Pipe EMT

Advantage of Electrical Metal Tube Conduit Pipe EMT

1.Easy to replace wires.when cable or wire become old or change to smart home appliance.its easy to pull cable from Electrical Metal Tube.

2.Safety. electrical metal tube is strong enough anti acid anti base,anti drilling,anti high pressure under cement.

3Fireproof. Electrical Metal tube conduit pipe EMT is fireproof ,waterproof and vandal proof

4Maintenance,Electrical Metal tube conduit pipe EMT is very straight,and bending 90 or 45 degree regularly.its easy to find how cable  going .

5Heat dissipation.when big apere going through cable, that cause heat. the electrical metal tube can cooling

6.Strict Standard ,long lasting . Electrical metal tube apply UL 797  ANSI C80.3-1983  STEEL  Hot dipped galvanized  Good corrosion resistance

Electrical Metal Tube Conduit Pipe EMT

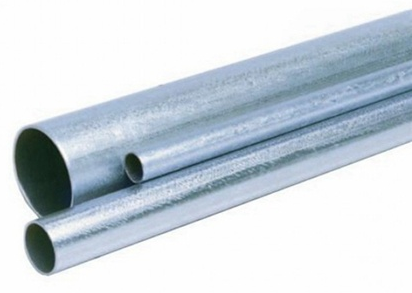

Electrical Metallic Tubing EMT conduit pipe

Electrical Metallic Tubing EMT conduit pipe





America Standard Electrical Metallic Tubing EMT conduit pipe
ANSI C80.3-1983 UL797
SizeOutside DiameterInside DiameterWall ThicknessLength
inchinchmminchmmmmmmfeetmm
1/2″0.70617.930.62215.801.070.85103050
3/4″0.92223.420.82420.931.250.95103050
1″1.16329.541.04926.641.451.10103050
1-1/4″1.51038.351.38035.051.651.30103050
1-1/2″1.74044.201.61040.891.651.30103050
2″2.19755.802.06752.501.651.40103050
2-1/2″2.87573.032.73169.371.83103050
3″3.50088.903.35685.241.83103050
3-1/2″4.000101.603.83497.382.11103050
4″4.500114.304.334110.082.11103050

Electrical Metal Tube Conduit Pipe EMT

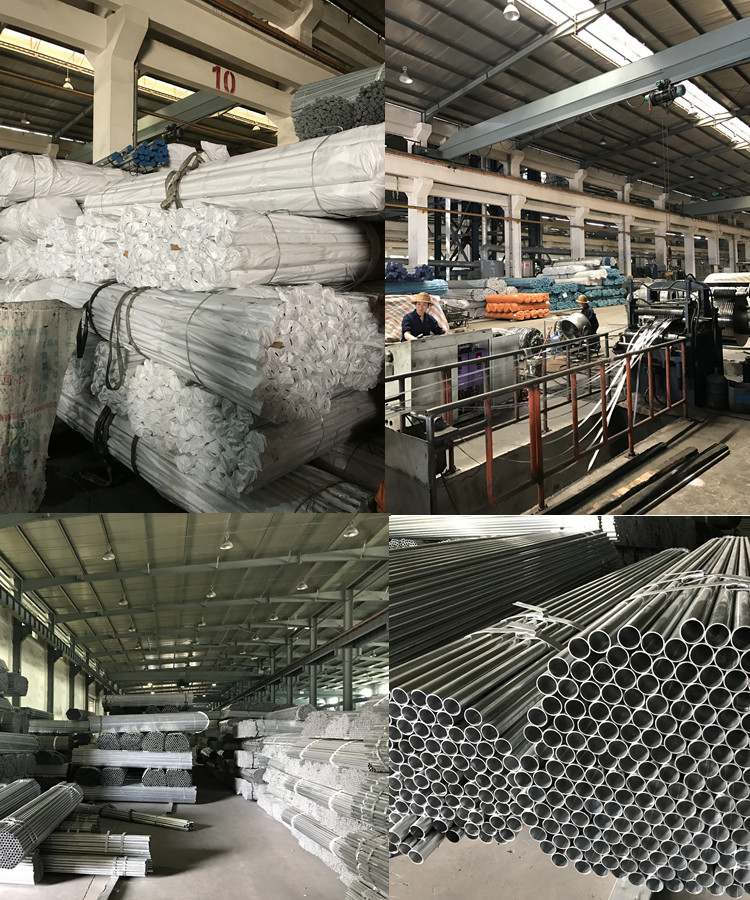

EMT conduit

EMT conduit

EMT conduit

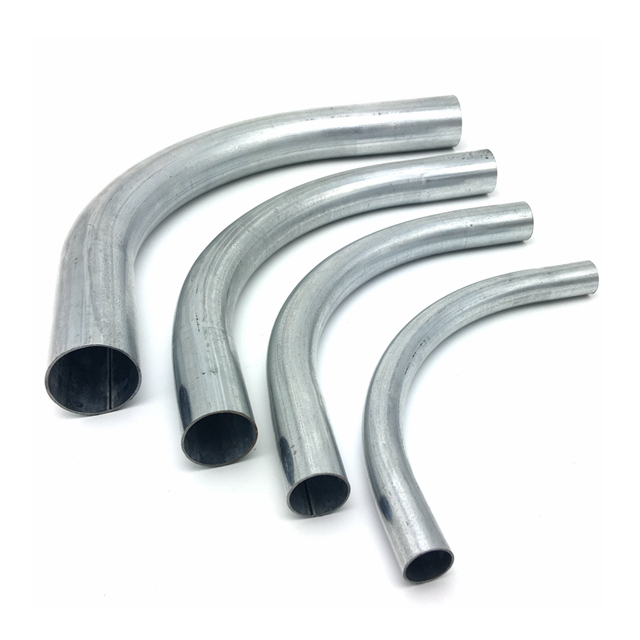

EMT ELBOW-90 DEGREE

EMT ELBOW-90 DEGREE

Electrical metal tube fitting 90 Degree EMT Elbow allows for a directional change in a set of EMT conduit. It features a large radius for easy wire pulling. that also features a corrosion-resistant, fire proof ,galvanized steel design for interior or exterior use. For indoor or outdoor use.

CAT#SIZECAT#SIZE
ELB-501/2”ELB-2002”
ELB-753/4”ELB-2502-1/2”
ELB-1001”ELB-3003”
ELB-1251-1/4”ELB-4004”
ELB-1501-1/2”



Electrical Metal Tube fitting 45 Degree EMT Elbow allows for a directional change in a set of EMT conduit. It features a large radius for easy wire pulling. It also features a corrosion-resistant, galvanized steel design for interior or exterior use. For indoor or outdoor use.

CAT#SIZECAT#SIZE
ELB-50B1/2”ELB-200B2”
ELB-75B3/4”ELB-250B2-1/2”
ELB-100B1”ELB-300B3”
ELB-125B1-1/4”ELB-400B4”
ELB-150B1-1/2”

Electrical Metal Tube Conduit Pipe EMT

EMT conduit

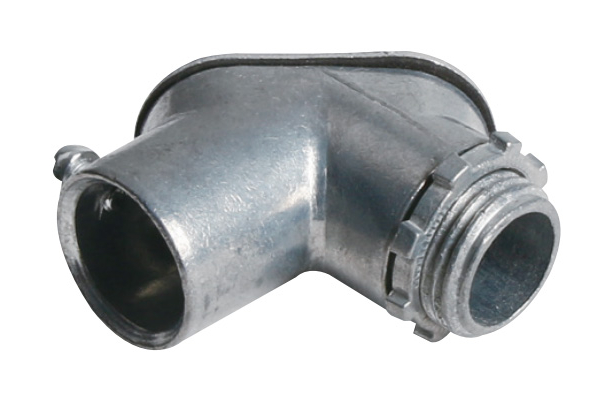

Electrical Metal Tube Conduit Pipe EMT Pull Elbow

Zinc die cast,EMT pull elbowfor use in dry locations to economically
bond Electrical Metallic Tubing to a box or enclosure.

CAT#SIZE
ESE501/2”
ESE-753/4”
ESE-1001”

.

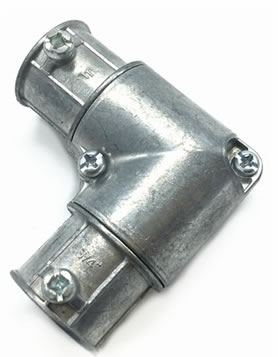

PULL ELBOWS-INSIDE CORNER-SET SCREW TYPE

Certification: UL  Zinc die cast  EMT pull elbow –inside corner are used to change the direction of 3/4” EMT conduit runs in any direction by 90° degrees.

CAT#SIZE
ETE-501/2”
ETE-753/4”

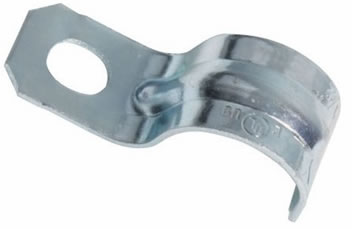

EMT STRAP ONE HOLE

Certification: UL Steel

EMT strap for attaching conduit and light duty pipe to walls and ceilings of any base material
including wood, steel beams, concrete and steel purlins

emt one hole strap

emt one hole strap

CAT#SIZECAT#SIZE
EOH-501/2”EOH-2002”
EOH-753/4”EOH-2502-1/2”
EOH-1001”EOH-3003”
EOH-1251-1/4”EOH-4004”
EOH-1501-1/2”

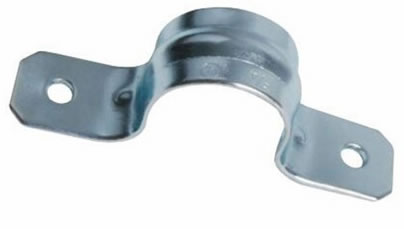

EMT STRAP-TWO HOLE

EMT STRAP TWO HOLE

Certification: UL  Steel EMT two hole strap for attaching conduit and light duty pipe to walls and ceilings of any
base material including wood, steel beams, concrete and steel purlins

two holes strap

two holes strap

CAT#SIZECAT#SIZE
ETH-501/2”ETH-2002”
ETH-753/4”ETH-2502-1/2”
ETH-1001”ETH-3003”
ETH-1251-1/4”ETH-4004”
ETH-1501-1/2”

EMT SET SCREW COUPLING

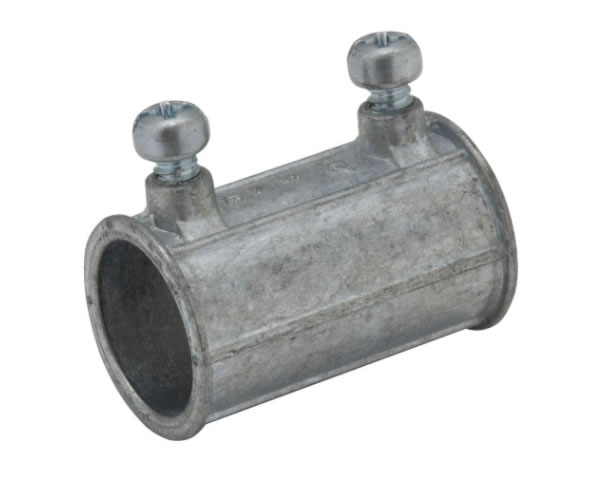

EMT SET SCREW screw COUPLING

EMT SET SCREW screw COUPLING

UL 514B Die-cast zinc is corrosion resistant

Suitable for applications above 600V

Designed for use in dry locations only

Available in trade sizes 1/2 in. through 4 in.

Used to bond EMT conduit to a junction box or enclosure

Die-cast zinc construction ensures mechanical protection for the raceway

EMT Set Screw Couplings are for use in dry locations. Couplings are used to couple two ends

of EMT conduit. When taped, they can be used for concrete-tight connections.

CAT#SIZECAT#SIZE
SSEP-501/2”SSEP-2002”
SSEP-753/4”SSEP-2502-1/2”
SSEP-1001”SSEP-3003”
SSEP-1251-1/4”SSEP-4004”
SSEP-1501-1/2”



EMT SET SINGLE SCREW CONNECTOR

UL 514B Zinc die castis corrosion resistant

Suitable for applications above 600V

Rugged metallic construction ensures a long life

Sizes 2-1/2” to 4” are also listed for RIGID and IMC Conduits

Used in a dry location to bond EMT conduit to a box or enclosure

 EMT Set-Screw Connectors are for use in dry locations. Connectors are used to bond

EMT conduit to junction box or enclosure.

CAT#SIZECAT#SIZE
SSEN-501/2”SSEN-2002”
SSEN-753/4”SSEN-2502-1/2”
SSEN-1001”SSEN-3003”
SSEN-1251-1/4”SSEN-4004”
SSEN-1501-1/2”



EMT SET COMPRESSION COUPLING

 Zinc die cast Concrete-Tight UL 514B

emt compression type coupling

emt compression type coupling

For indoor applications

Joins two lengths of EMT conduit

EMT Compression Coupling is used to help join pipes together. This compression

coupling is made of zinc and is compatible with EMT conduit. This coupling is intended

for indoor use.

CAT#SIZECAT#SIZE
SEP-501/2”SEP-2002”
SEP-753/4”SEP-2502-1/2”
SEP-1001”SEP-3003”
SEP-1251-1/4”SEP-4004”
SEP-1501-1/2”

emt compression type coupling



EMT COMPRESSION CONNECTOR

UL 514B  Zinc die castis corrosion resistant

EMT compress coupling

EMT compress coupling

Rugged metallic construction ensures a long life

Steel plated compression ring positively bonds conduit to the fitting

Connects EMT conduit to steel boxes and other metal enclosures

EMT compression which feature steel plated compression rings to bond conduit
to the fittings. For indoor use. Reversible locknut cuts through protective coatings on boxes
and enclosures to ensure ground continuity.

CAT#SIZECAT#SIZE
CEN-501/2”CEN-2002”
CEN-753/4”CEN-2502-1/2”
CEN-1001”CEN-3003”
CEN-1251-1/4”CEN-4004”
CEN-1501-1/2”



EMT SET SCREW COUPLING

UL 514B  STEEL  Zinc Electro-Plated

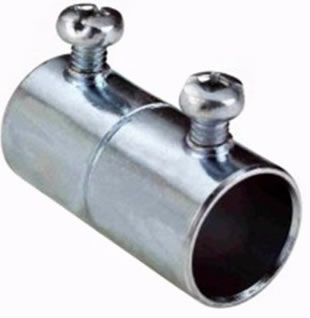

EMT COUPLING steel set screw type

EMT COUPLING steel set screw type

Two-screw installation

connect the ends of two EMT thin wall conduits together

EMT Set-Screw Coupling, you can safely join 2 pieces of EMT conduit together. This steel
0coupling is concrete-tight when taped.

CAT#SIZECAT#SIZE
SSEP-50S1/2”SSEP-200S2”
SSEP-75S3/4”SSEP-250S2-1/2”
SSEP-100S1”SSEP-300S3”
SSEP-125S1-1/4”SSEP-400S4”
SSEP-150S1-1/2”

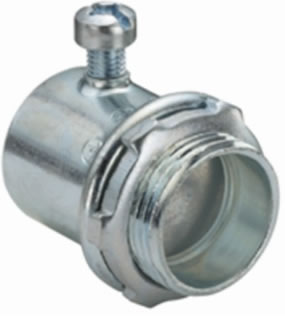

EMT SET SCREW CONNECTOR

EMT CONNECTOR steel set screw type

EMT CONNECTOR steel set screw type

UL 514B  STEEL  Zinc Electro-Plated

Concrete-Tight when Taped

For indoor use in non-underground applications

Connects EMT conduit to steel boxes and other metal enclosures

   set-screw steel EMT CONNECTOR connect EMT conduit to steel outlet boxes, load centers
and other metal enclosures. They are made of galvanized steel for corrosion resistance. Use for i
ndoor/dry location.

CAT#SIZECAT#SIZE
SSEN-50S1/2”SSEN-200S2”
SSEN-75S3/4”SSEN-250S2-1/2”
SSEN-100S1”SSEN-300S3”
SSEN-125S1-1/4”SSEN-400S4”
SSEN-150S1-1/2”



EMT COMPRESSION COUPLING

Certification: UL Steel For indoor applications Joins two lengths of EMT conduit

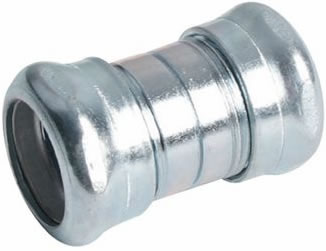

compression type steel EMT coupling

compression type steel EMT coupling

  EMT Compression Coupling is used to help join pipes together. This compression

coupling is made of steel and is compatible with EMT conduit. This coupling is intended

for indoor use.

CAT#SIZECAT#SIZE
CEP-50S1/2”CEP-200S2”
CEP-75S3/4”CEP-250S2-1/2”
CEP-100S1”CEP-300S3”
CEP-125S1-1/4”CEP-400S4”
CEP-150S1-1/2”

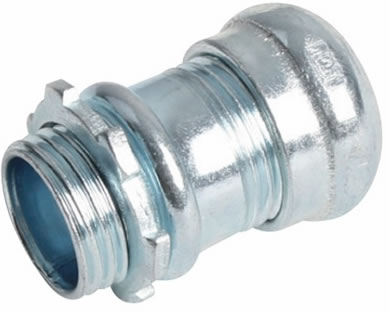

EMT COMPRESSION CONNECTOR

steel emt compression connector

steel emt compression connector

Certification: UL Steel For indoor applications

 EMT Compression Coupling is used to bond EMT thin wall conduits to electrical junction
boxes or enclosures

CAT#SIZECAT#SIZE
CEN-50S1/2”CEN-200S2”
CEN-75S3/4”CEN-250S2-1/2”
CEN-100S1”CEN-300S3”
CEN-125S1-1/4”CEN-400S4”
CEN-150S1-1/2”

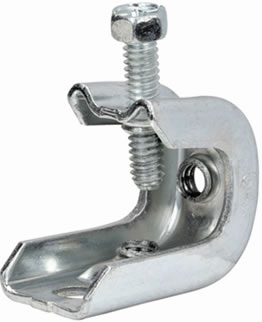

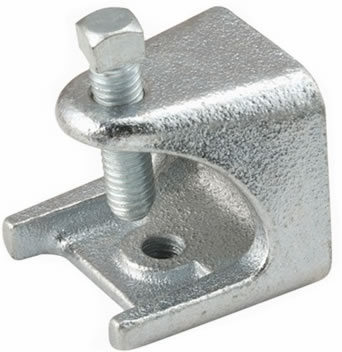

EMT BEAM CLAMPS UL  STEEL

BEAM CLAMPS-STEEL

BEAM CLAMPS-STEEL

 EMT BEAM CLAMPS is for attachment to structural shapes requiring wider throat

especially under roof with bar joist construction.This clamp may be used with the set screw
in the up or down position.

CAT#SIZE
EBM-251/2”
EBM-373/4”

EMT BEAM CLAMPS UL MALLEABLE IRON

beam clamp steel H shape

beam clamp steel H shape

EMT BEAM CLAMPS is for attachment to structural shapes requiring wider throat

especially under roof with bar joist construction.This clamp may be used with the set screw
in the up or down position.

CAT#SIZE
EBMI-251/4”-20
EBMI-373/8”-16
EBMI-501/2”-13

EMT BEAM CLAMPS UL MALLEABLE IRON

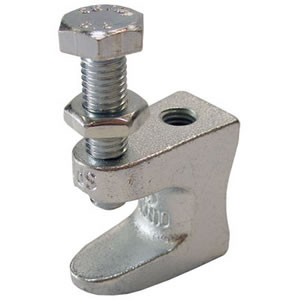

EMT steel beam clamp 3 shape

EMT steel beam clamp 3 shape

 EMT BEAM CLAMPS is for attachment to structural shapes requiring wider throat

especially under roof with bar joist construction.This clamp may be used with the set screw
in the up or down position.

CAT#SIZE
EBMM-8M8
EBMM-10M10
EBMM-12M12

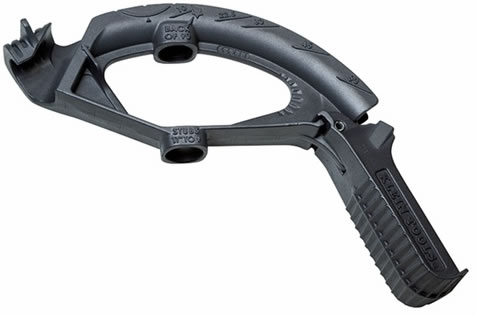

EMT pipe benders  Malleable iron  For bending Electrical Metallic Tubing or Rigid Conduit

CAT#SIZE
EBR-501/2”
EBR-753/4”
EBR-1001”



EMT pipe benders Aluminum For bending Electrical Metallic Tubing or Rigid Conduit

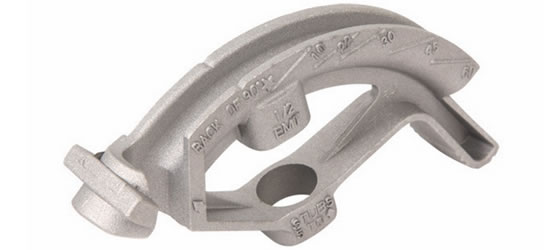

ALUMINIUM BENDER FOR EMT

ALUMINIUM BENDER FOR EMT

CAT#SIZE
EBRA-501/2”
EBRA-753/4”
EBRA-1001”

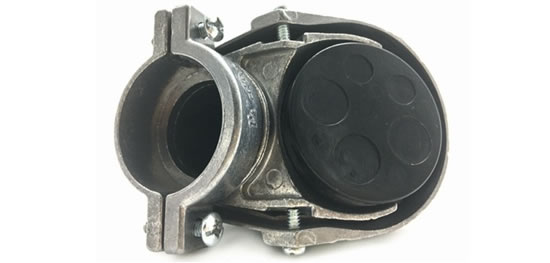

EMT ENTRANCE CAPS-clamp on type  UL ALUMINUM

EMT CABLE ENTRANCE SERVICE CAP

Clamp type EMT CABLE ENTRANCE SERVICE CAP

Light-weight aluminum body construction eases installation and provides corrosion resistance.
Plastic insulator snaps out easily for quick cable insertion.Clamp type and thread type are both available.

CAT#SIZECAT#SIZE
ECP-501/2”ECP-1251-1/4”
ECP-753/4”ECP-1501-1/2”
ECP-1001”ECP-2002”

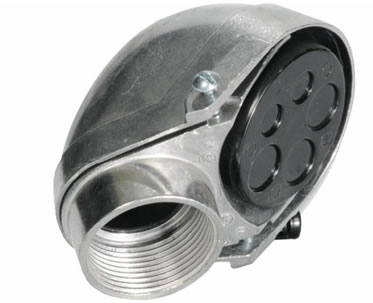

Screw type SERVICE ENTRANCE CAPS-clamp on type  UL ALUMINUM



screw type cable entrance service

screw type cable entrance service

Light-weight aluminum body construction eases installation and provides corrosion resistance.
Plastic insulator snaps out easily for quick cable insertion.Clamp type and thread type are both available.

CAT#SIZECAT#SIZE
SEP-501/2”SEP-1251-1/4”
SEP-753/4”SEP-1501-1/2”
SEP-1001”SEP-2002”
