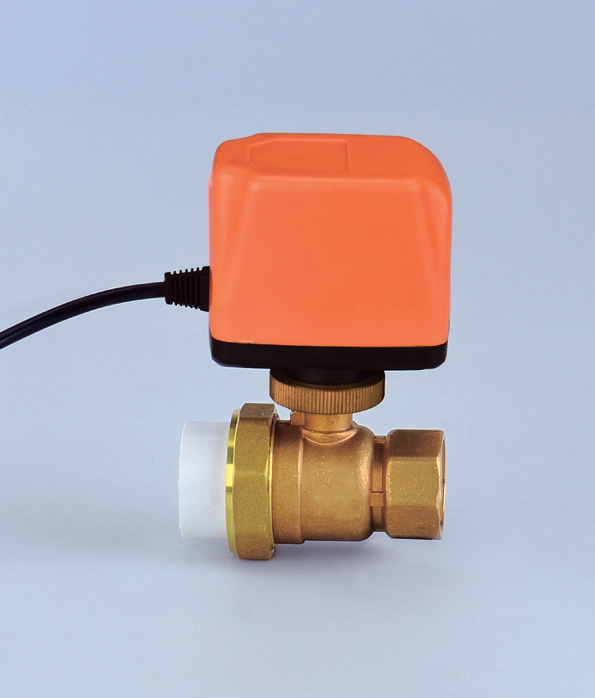

Ezitown H904 PPR movable joint electric ball valve

Application

1.A valve is a device used to control the direction, pressure, and flow of fluid in a fluid system.
2.A valve is a device that allows the medium (liquid, gas, powder) in the piping and equipment to flow or stop and can control its flow.
3.Valves can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive media.

Specification

Features of Ezitown H904 PPR movable joint electric ball valve:

H904 electric valve is used to control the water circuit at the end of the central air conditioning and heating system. The electric ball valve motor is controlled by the thermostat, and the valve is opened and closed through the reverse motor, so as to realize the flow and disconnection of the medium in the pipeline to realize the automatic control of the room temperature.

The power-on time is extremely short, the motor power is small, the product is energy-saving, the motor Longer life
Good waterproof and dustproof function and airtightness
Easy to disassemble and install the actuator
Close strict
The valve switch is very flexible
Straight water flow, large flow, no slag blocking
Technical parameters:
Power supply: 220VAC 50Hz
Power: 6W
Torque 4N-m
Nominal pressure: 1.6Mpa
Travel time: 15~18S
Working medium: water, fluid temperature 5~95℃
