LX series Double-needle Type Shore Durometer

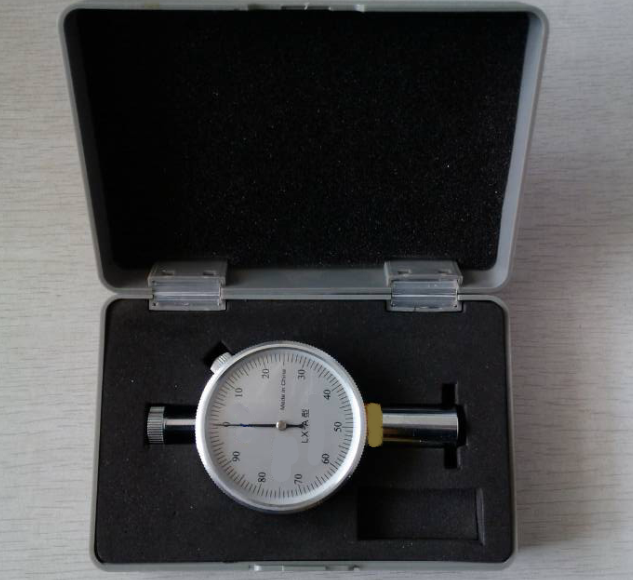

LX series Double-needle Type Shore Durometer rubber hardness tester and packing box range 10~90 Needle stroke 2.5mm


 LX-AO durometer is used to test the hardness of Vulcanized rubber of low hardness and thermoplastic rubbers and other materials. It’s according to the national standard GB/T531-2008, reference to specification standard JJF1312-2011.

Main Characteristics

1. Dial scale: 0 ~100AO
2. Needle stroke: 2.5 mm
3. Measure range: 10 ~90AO
4. Needlepoint size: SR 2.5 mm
5. Dimension:112×60×30mm
6. Weight: 0.2 kg

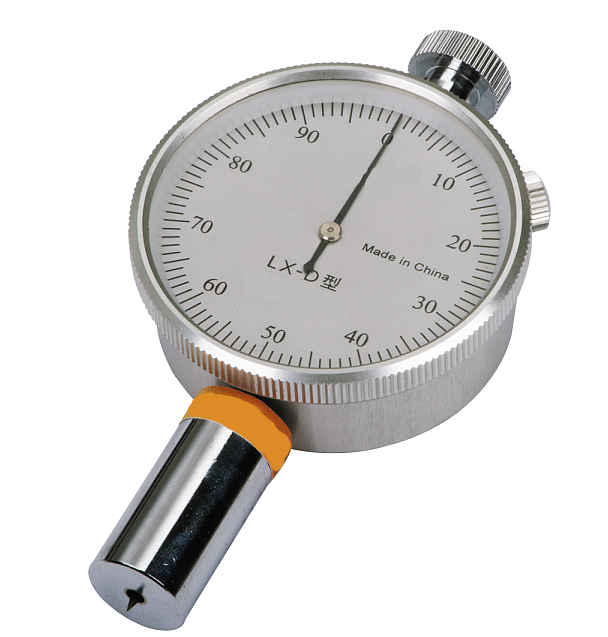

     LX-D durometer is suitable for hardness test of high degree of hardness material, such as common hard rubber, hardened resin, acryl, Plexiglas, thermos plastic rubber, printing plate, fibred. The product conforms to GB/T531-2008,reference to specification standard JJG1039-2008.

Main Characteristics

1. Dial scale: 0 ~100HD
2. Needle stroke: 2.5 mm
3. Measure range: 10 ~ 90HD
4. Needlepoint size: SR 0.1 mm
5. Dimension:112×60×25mm
6. Weight: 0.2 kg

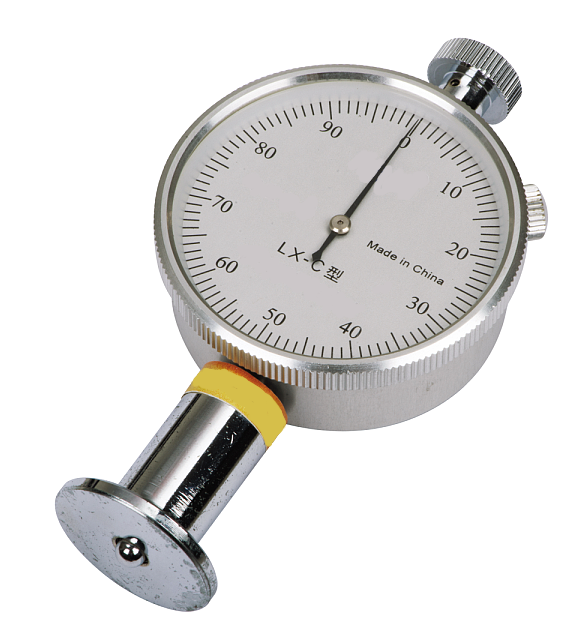

      LX-C microporous material hardness tester is suitable for hardness testing of low hardness microporous materials such as foam, sponge, rubber,etc. It reference to specification standard HG/T2489-2007. This instrument applys to hardness measurement of shoe microporous material of which the stress can reach more than 0.5kg/cm ² (0.049MPa) when the compression ratio is 50%.

Main Characteristics

1. Dial scale: 0 ~100Hc
2. Needle stroke: 0~2.5 mm
3. Measure range: 10 ~ 90Hc
4. Measuring error: ±1Hc
5. Dropper tip pressure: F=0,0784Hc+0.539(N)
5. Dimension:112×60×30mm
6. Weight: 0.2kg

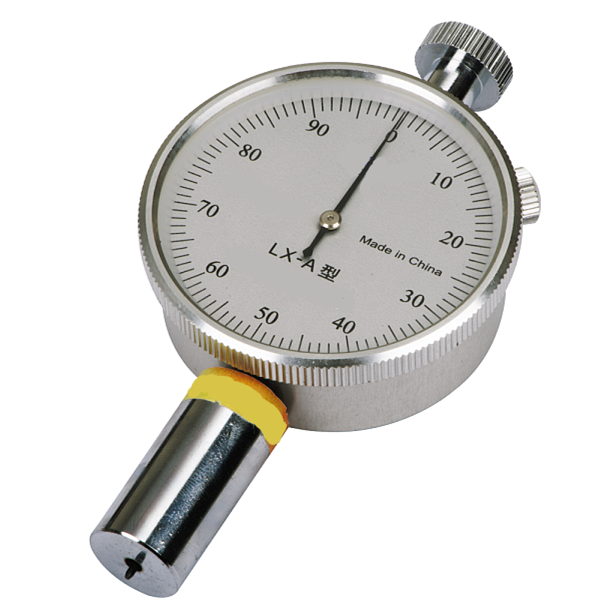

    LX-A durometer is widely applied in the low and medium hardness plastic, all kinds of rubber, multi-dimensional fat, leather, wax etc. The product conforms to GB/T531-2008, reference to inspection standard JJG304-2003.

Main Characteristics

1. Dial scale: 0 ~100HA
2. Needle stroke: 2.5 mm
3. Measure range: 10 ~90HA
4. Needlepoint size: Ф 0.79 mm
5. Dimension:112×60×25mm
5. Weight: 0.2 kg
