Din Rail Type Double Level Screw Terminal Block PTTB 2.5mm

Item : PTTB 2.5

Details :

Din rail type terminal block,phoenix terminal block,din rail terminal block,35mm width din rail terminal block

It has actual values to make full use of spare position during the actual application,and shorten layout.

Item : Din Rail Type Double Level Screw Terminal Block PTTB 2.5mm

Details : Din rail type terminal block,phoenix terminal block,din rail terminal block,35mm width din rail terminal block

It has actual values to make full use of spare position during the actual application,and shorten layout.

General:

PTTB series combined terminal row adopts frame type screw connection structure. The design complies with IEC60947-1, GB14048 standards, which is widely used in the circuit of AC 50Hz (60Hz), rated voltage 660V, DC 40V and below, rated sectional area 0.75~150mm² connection conductor, it also is suitable for connecting the circle copper conductor of tube terminal that is not specially processed or pressure welding.
Characteristics:

1、Reasonable installation structure design, wide general-purpose nature, can be used both G type and TH type guide rail. If it is above 50mm, adopt fasten accessory installation.
2、Small volume, complete set of specifications, big connected conductor sectional area, and good electrical conductivity, the one that is below 50mm adopts copper press line frame and copper fasten screw; and the one that is above 50mm, adopts copper press line frame and steel screw and copper skirt plate. It has a big tightened moment and self-locking function.
3、The strong combined function makes the connection of the conductor be simpler.

Accessories to uk terminal block:

(1)End cover: Thickness 1.5mm grey
(2)10 Center connection-strips, can be divided into 2 positions or 3 positions.
(3)Isolator bridge bar: 10-position, divisible need cushion block.
(4)Switch bar for 2 terminal blocks complete, add end cover between two terminals.
(5)Separating plate: be used for electrical separation of neighboring bridges.
(6)Partition plate: 1.5mm Thickness
(7)Universal end fixed piece.

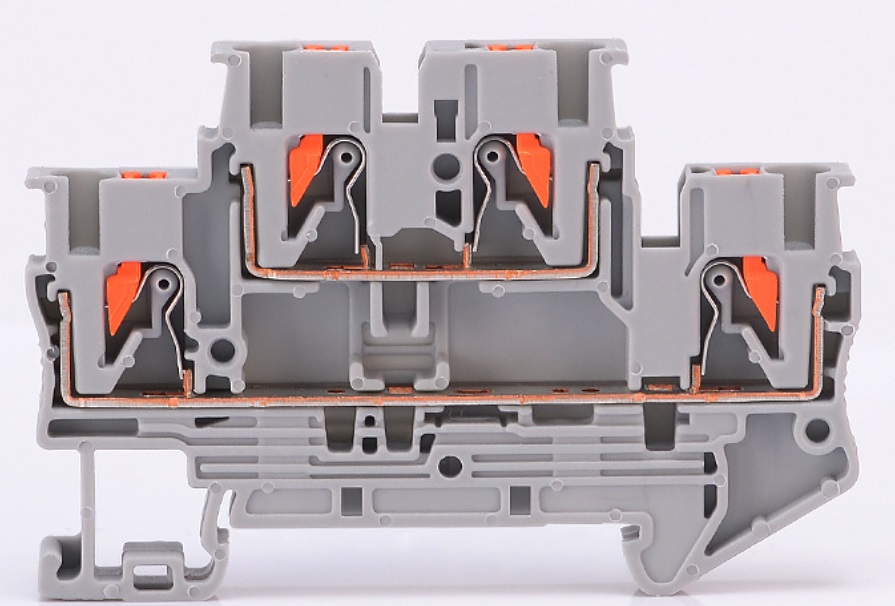

Din Rail Type Double Level Screw Terminal Block PTTB 2.5mm

Din Rail Type Double Level Screw Terminal Block PTTB 2.5mm

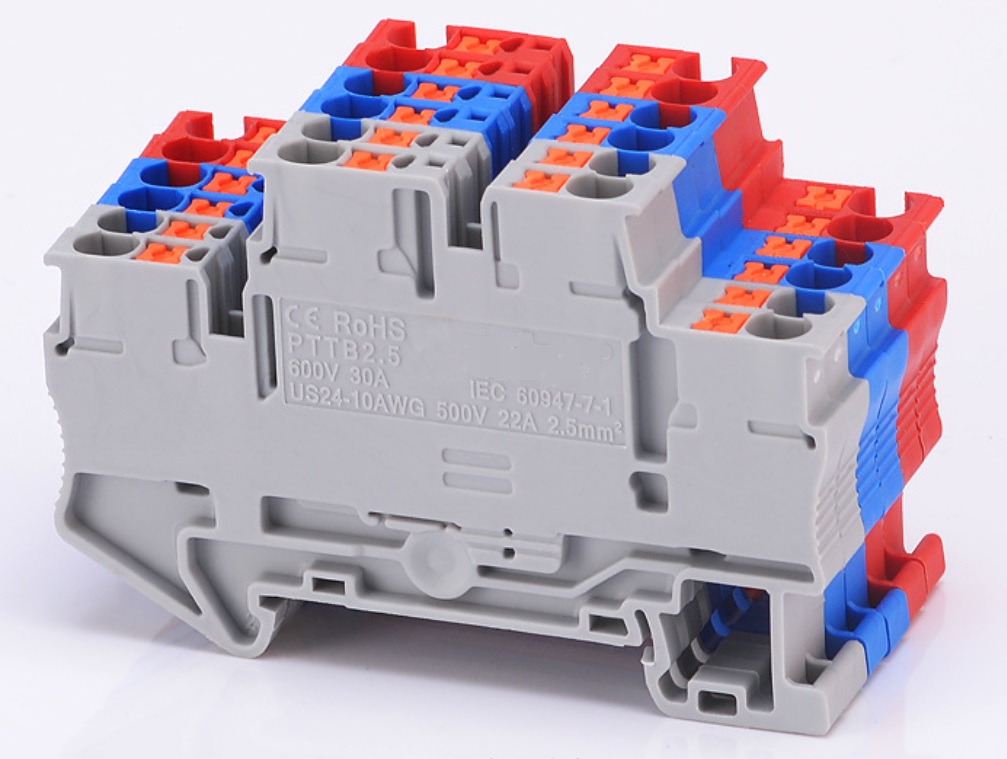

pttb up feed terminal block 2 levels

pttb up feed terminal block 2 levels

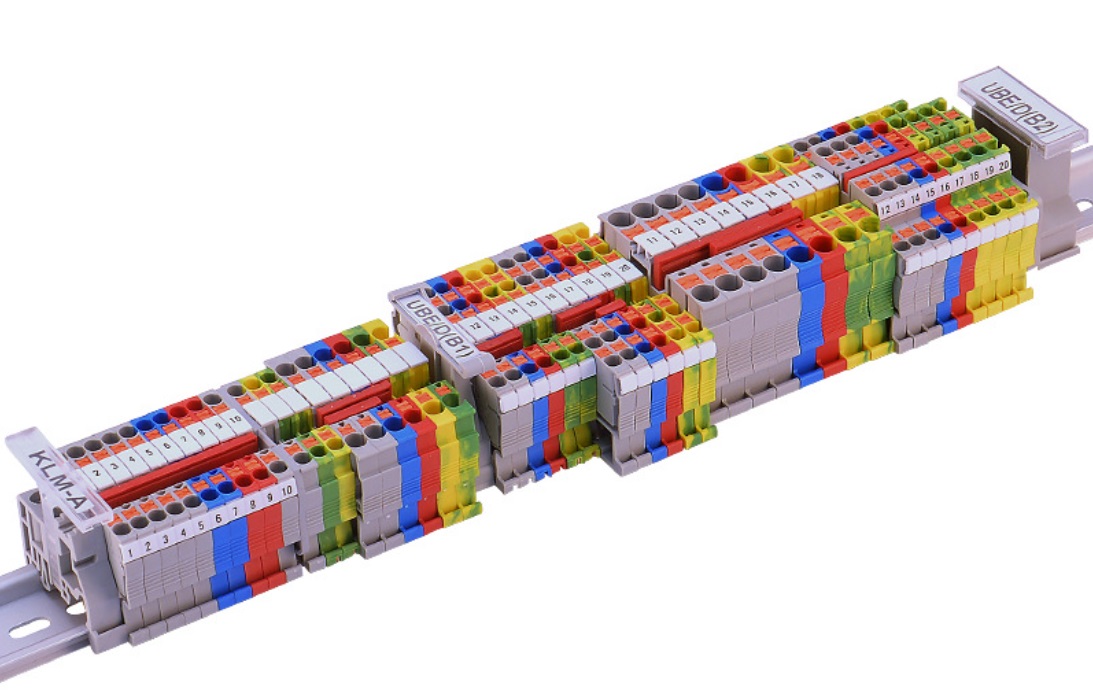

double level terminal block pttb 2.5

double level terminal block pttb 2.5
