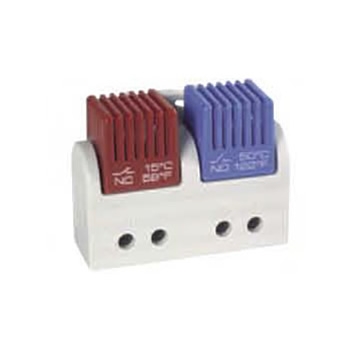

Tamperproof dual thermostat

Item : FTD 011

▋ NO and NC in one casing

▋ Default temperature settings

▋ High switching accuracy

▋ Clip fixing

Two tamperproof dual thermostat in one casing:
Tamperproof (Pre-set) Thermostat/Contact breaker (NC) for regulating heaters or for switching signal devices when temperature has fallen below the minimum value. The contact opens when temperature is rising.
Tamperproof (Pre-set) Thermostat/Contact maker (NO) for regulating filter fans, heat exchangers or for switching signal devices when temperature limit has been exceeded. The contact closes when temperaure is rising.

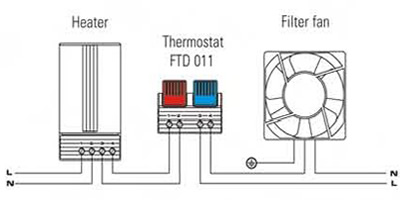

Heaters and cooling equipment can be switched independently from each other with a temperature offset as opposed to the usual change-over contacts.

[fusion_tabs layout=”horizontal” justified=”yes” backgroundcolor=”” inactivecolor=”” class=”” id=””]
[fusion_tab title=”Application”]Tamperproof dual thermostat

Two tamperproof dual thermostat in one casing:
Tamperproof (Pre-set) Thermostat/Contact breaker (NC) for regulating heaters or for switching signal devices when temperature has fallen below the minimum value. The contact opens when temperature is rising.
tamperproof dual thermostat/Contact maker (NO) for regulating filter fans, heat exchangers or for switching signal devices when temperature limit has been exceeded. The contact closes when temperaure is rising.
Heaters and cooling equipment can be switched independently from each other with a temperature offset as opposed to the usual change-over contacts.
[/fusion_tab]
[fusion_tab title=”Specification”]

Tamperproof dual thermostat

Sensor element thermostatic bimetal
Contact type snap-action contact
Contact resistance < 20m
Service life > 100,000 cycles
Max. switching capacity 250V AC, 5 (1.6)A
120V AC, 10 (2)A
  DC 30W
Max. inrush current AC 10A
EMC acc. To EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection 4-pole terminal for 2.5mm², torque 0.8Nm max.
Mounting clip for 35mm DIN rail, EN 50022
Casing plastic according to UL94 V-0, light grey

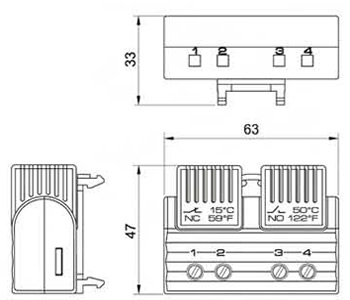

Dimensions 47 x 63 x 33mm
Weight approx. 40g
Fitting position variable
Operating/Storage temperaure -20 to + 80°C (-4 to +176°F) / -45 to + 80°C (-49 to +176°F)
Prot. Type IP20
Approvals VDE + UL File No. E164102





Art. No. Contact breaker (NC) Contact maker (NO)
Switch-off temperature Switch-on temperature Switch-on temperature Switch-off temperature
01163.0-00 +15°C / +59°F (± 5K tolerance) +5°C / +41°F (± 5K tolerance) +50°C / +122°F (± 6K tolerance) +40°C / +104°F (± 7K tolerance)
01163.0-01 +25°C / +77°F (± 5K tolerance) +15°C / +59°F (± 5K tolerance) +60°C / +140°F (± 6K tolerance) +50°C / +122°F (± 7K tolerance)
01163.0-02 +15°C / +59°F (± 5K tolerance) +5°C / +41°F (± 5K tolerance) +35°C / +95°F (± 6K tolerance) +25°C / +77°F (± 7K tolerance)
01163.0-03 +25°C / +77°F (± 5K tolerance) +15°C / +59°F (± 5K tolerance) +50°C / +122°F (± 6K tolerance) +40°C / +104°F (± 7K tolerance)
Art. No. Contact maker (NO) Contact maker (NO)
Switch-on temperature Switch-off temperature Switch-on temperature Switch-off temperature
01164.0-00 +50°C / +122°F (± 6K tolerance) +40°C / +104°F (± 7K tolerance) +60°C / +140°F (± 6K tolerance) +50°C / +122°F (± 7K tolerance)
