Item:FN12

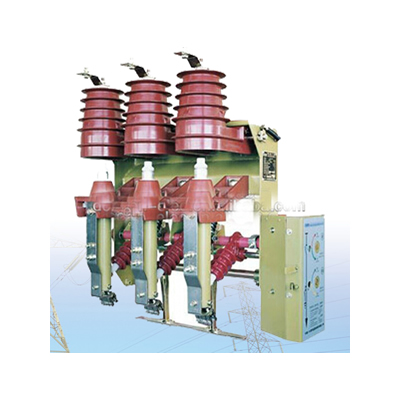

FN12 indoor air pressure LBS vcb electrical
  It is a three phase H.V. switch equipment of 12KV, 50Hz for breaking or closing load current., no-load transformer cable charging current and closing short-circuit current. The load switch with earth switch can bear short-circuit current.
It is made up of FN12-12D load switch and S()LAJ-12(XRNT()-10) H.V. current-limiting fuse box. It can break any current, load switch breaking working current and fuse box breaking short-circuit current, jointly breaking any current between short-circuit current. Meantime, fuse box make the switch off of with the striker.

  • Service Condition:
    A. The ambient air temperature:  Max.: +40 °C. Min: -10 °C.
    B. The altitude ≤ 1000m.
    C. The relatire humidity of air. daily average ≤ 90%. monthly average ≤ 95%.
    D. The ambient air should not be obviously polluted by corrosivity or the flammability gas and geam. etc.
    E. Without frequent shake.
    F. Enviroment degree: grade Ⅱ.
    If requirements are not mentioned above, users can fix them with the manufacturer.

Technical Parameter and Performances:

Number

Name

Unit

FN12-12D/630-20

FN12-12D.R/100-31.5

1

Rated voltage

kV

12

2

Rated frequency

Hz

50

3

Reated current

A

630

100

4

Lighting impulse resisting voltage

kV

75/85

5

1min power frequency with stand voltage

kV

42/48

6

Rated heat – stability current

kA

20(4S)

7

Rated machine-stability current

kA

50

8

Rated closing current (peak)

kA

50

9

Rated short-circuit breaking current

kA

31.5

10

Rated transfer current

kA

1.5

11

Max. breaking current

kA

1.8

12

Breaking no-load transformer capacity

Kva

1250

13

Rated cable charging current

A

FN12 indoor air pressure LBS
