12mm big Dot illuminated LED indicator
Item : 12LED-B
anti vandal indicator 12mm LED-B
ring illuminated push button switch
Item :12LED-B
Details:
ROHS compliant
3 years Quality Guarantee
Usage:Bank,food factory,slaughter,bakery,washing factory,chemistry factory,mine
milland so on.
We produce our own brand metal switch, and also agent of eao switch
pushbutton switch,metal switch,anti vandal switch,vandal resistant switch
The screw thread we have M12X1 and M12X0.75 in option. please mention in order ,
otherwise we will give as ramdom .
12LED-B
| Specifications | 12LED-B | |
| Tail configuration | Connection terminal(2.8*0.5) | |
| Switch specifications | 2A/36VDC | |
| Contact resistance | <50mΩ | |
| Insulation resistance | <1000MΩ | |
| Dielectric intensity | 2000VAC | |
| Ambient temperature | -20℃~+55℃ | |
| Mechanical life | 500,000 cycles | |
| Electrical life | 50,000 cycles | |
| Panel thickness | 1~6mm | |
| Nut torque | 5~14Nm | |
| Operation pressure | About 5N | |
| Operation stroke | About 2.0mm | |
| Protection level | IP65,IK08 | |
| Material | Contact | Silver alloy |
| Button | Nickel plated brass/stainless steel | |
| Enclosure | Nickel plated brass/stainless steel | |
| Base | PA66 | |

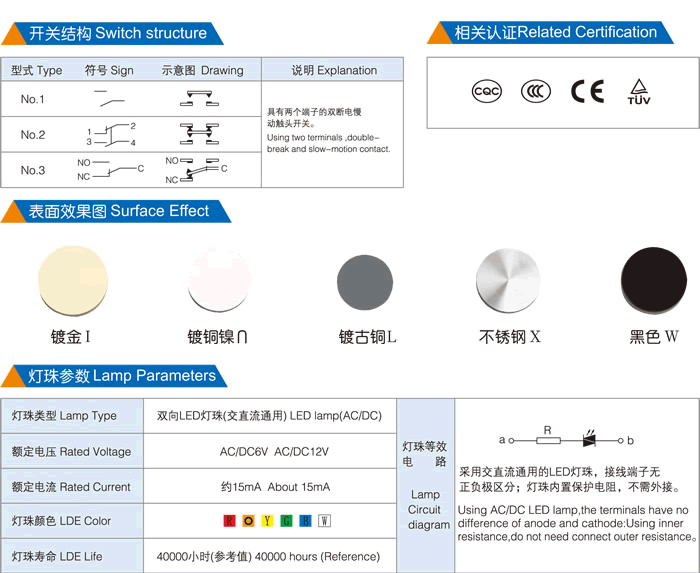

| LED Parameter | LED type | Ring llluminated(LED) |
| Rated voltage | 6V/12V/24V/110V/220V | |
| LED color | Red,Orange,Yellow,Green,Bule,White | |
| LED life | 40000hours | |
