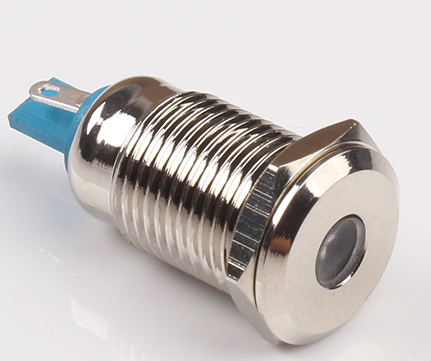

12mm anti vandal stainless steel Indicator
12mm anti vandal indicator
12mm anti vandal stainless steel Indicator

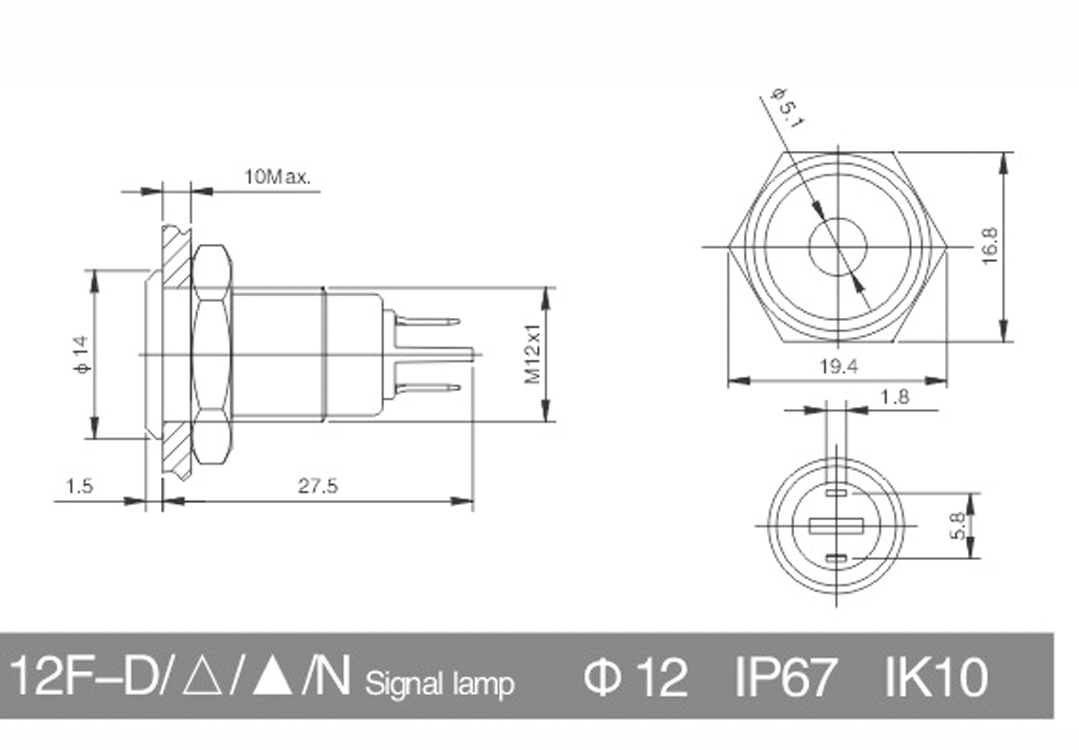

| Specification | 12F-D/J/N | |
| Mounting hole size | 12mm | |
| voltage class | ≤220V | |
| terminal type | pin terminal（1.8×0.4mm) | |
| Dielectric strength | 2000VAC | |
| operating temperature | -20℃ +55℃ | |
| panle thickness | 1~10mm | |
| torque | 5 ~14mA | |
| protection degree | IP67,IK10 | |
| material | shade | PC |
| case | nickel plated brass | |
| base | PBT | |
| ROHS | can be made to order | |
| Lamp parameters | type | (led）dot-illumination flat |
| rated voltage | 2V/6V/12V/24V/36V/110V/220V | |
| rated curent | about 15mA/about 3mA | |
| color | R/G/Y/O/B/W | |
| life | 50000hours | |
