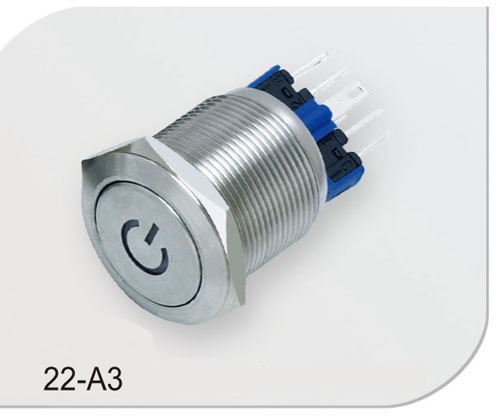

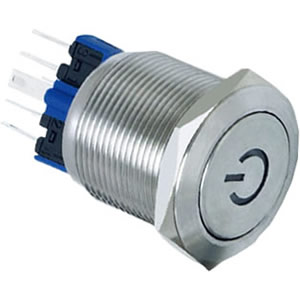

22-A3 22mm 5A 1NO1NC Resetable flat stainless steel push button switch
Item : 22-A3
stainless steel push button switch
Item :22-A3
detail:
ROHS compliant
3 years Quality Guarantee
Usage:Bank,food factory,slaughter,bakery,washing factory,chemistry factory,mine mill
We produce our own brand metal switch, and also agent of eao switch

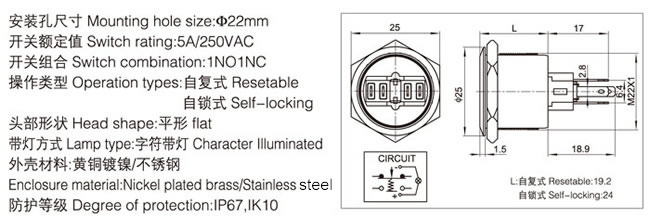

| Specifications | 22-A3 | |
| Tail configuration | Connection terminal(2.8*0.5) | |
| Switch specifications | 5A/250VAC | |
| Contact resistance | <50mΩ | |
| Insulation resistance | <1000MΩ | |
| Dielectric intensity | 2000VAC | |
| Ambient temperature | -20℃~+55℃ | |
| Mechanical life | 500,000 cycles | |
| Electrical life | 50,000 cycles | |
| Panel thickness | 1~10mm | |
| Nut torque | 5~14Nm | |
| Operation pressure | About 3~5N | |
| Operation stroke | About 2.5mm | |
| Protection level | IP67,IK10 | |
| Material | Contact | Silver alloy |
| Button | Nickel plated brass/stainless steel | |
| Enclosure | Nickel plated brass/stainless steel | |
| Base | PA66 | |
| LED Parameter | LED type | Character llluminated(LED) |
| Rated voltage | 6V/12V/24V/110V/220V | |
| LED color | Red,Orange,Yellow,Green,Bule,White | |
| LED life | 40000hours | |
