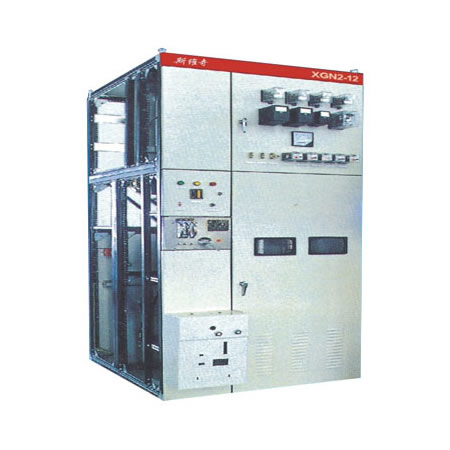

XGN2-12 Case type metal-enclosed switchgear
fixed exchange

XGN2-12 Case type fixed metal enclosed switch gear ( hereinafter referred to as
switchgear) ,is mainly used for power reception and distribution of the 3,6,7.2,12kV
three phase AC 50Hz indoor system, and is expecially suitable for places where
frequent operations are needed . XGN2-12 switchgear is a prevent type fixed
metal enclosed hv switchgear ,widely use to start ,operate hv electromotor, and
can frequent operation, no explosion , fire etc . Three kinds of three phase systems
are available : single bus bar , single bus bar with bypass and double bus bars , as
the acceptance and distribution of electric energy.
The main switch adopts ZN28A-12 series segmental vacuum circuit breaker and
SN10-10 circuit breaker ,equipped with CD10 and CD17 series electromagnetic
actuator and CT8 series, also use CT17/CT19 spring actuator. The isolating switch
adopts GN30-12 rotation and GN22-10 large current isolating switch.

Technical parameters of circuit breakers and others



Item
 Unit
Data
Rated voltage
 kV
40.5
Rated current
 A
1250,1600,2000
Rated frequency
 HZ
50
Rated short-circuit breaking current
 kA
20,25,31.5
Rated short-circuit making current
 kA
50,63,80
Rated peak withstand current
 kA
50,63,80
Rated short-time withstand current
kA/4s
20,25,31.5
Rated short-circuit duration
  s
4
Rated insulation level
  kV
95
1min power frequency withstand  voltage(rms)
Lighting impulse withstand voltage(rms)
  kV
185
Power frequency withstand voltage of auxiliary control circuit
V/1min
2000
Auxiliary circuit
Mechanical life
 times
10000
Making time electromagnetic mechanism
  S
≤0.2
Spring mechanism
  S
≤0.15
Opening time
  S
≤0.07
Rated operating sequence
-0.3s-180s open-0.3s-close open
close-180s-close open



XGN2-12 Case type metal-enclosed switchgear

XGN2-12 Case type metal-enclosed switchgear
