Item : XGN
Details :
KYN28A-12
KYN28A-12 armored remove AC metal-enclosed
switchgear

KYN28A-12 XGN armored remove AC metal-enclosed

[fusion_tabs layout=”horizontal” justified=”yes” backgroundcolor=”” inactivecolor=”” class=”” id=””]

[fusion_tab title=”Application”]  KYN28A-12 type armored remove AC metal-enclosed switchgear
(hereinafter referred to as ‘switching equipment’ ) which applies to three-
phase AC 50Hz power system for receiving and distribution of power and
circuit implementation of control, protection and monitoring. The introduction
of the development of new high-current , high-breaking switch device can
also be used alone as a high-voltage generator.
This product meets the GB3906﹑ DL404、 IEC298 standards , reliable
Mechanical , electrical interlocking device , fully meet t he “ Five Anti ”
Requirements , and it can equipped with the ZN63A-12 (VS1) series or
Import VD4 series vacuum circuit breaker, wide applicability, high reliability,
Maintenance-free.

Normal working conditions

Environment temperature : ﹣25℃~﹢40℃
Altitude : ≤ 1000M
Relative humidity : daily average shall not exceed 95%,and
monthly average shall not exceed 90% .
Earthquake intensity : ≤8 degree
Installation & operation :location for installing shall be no fire
or explosion danger, no corrosive gas or dust ,no sharp impact.
If you have any requirement, please contact with us and
negative with us.[/fusion_tab]
[fusion_tab title=”Specification”]

Technical parameters
Item
  Unit
Data
Ratedvoltage(maximum voltage )
   kV
3.6,7.2,12
Rated current
   A
630,1250,1600,2000,3150
Rated short-circuit breaking current
   kA
16,20,31.5,40
Rated short-circuit making current
   kA
40,50,80,100
Rated peak withstand current
   kA
40,50,80,100
Rated short-time withstand current
   kA
16,20,31.5,40
Rated short-time duration
   S
4
Protection degree
IP2X
Structure
Sectionalized single busbar, single busbar with bypass
Mode of operation mechanism
Electromagnetic,spring energy storage
Dimensions w*D*H
  mm
1100*1200*2650(general type)
Weight
  kg
1000



[/fusion_tab]

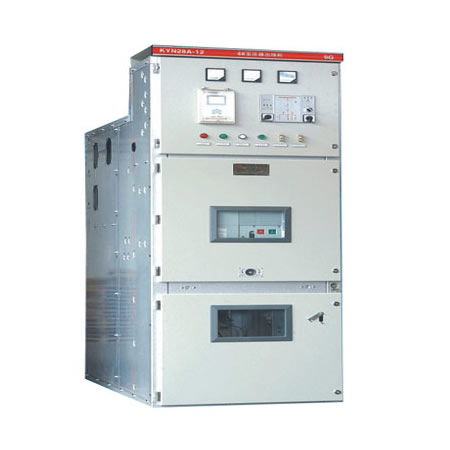

[fusion_tab title=”Gallery”]KYN28A-12-XGN-armored-remove-AC-metal-enclosed[/fusion_tab]
[fusion_tab title=”F&Q”]

Q:How to guarantee my order and payment:
A:Ezitown has Alibaba trade Assurance,100% refundable if any quality or delivery problem.

Q:How to return the goods if meet any problem
A:we have DHL and Fedex account for return goods.buyer no need to pay any shipping cost for returning. Can contact our salesman to operate.

Q:Why Ezitown price is competitive, and quality seems rather good ?
A:because we have been manufacturing more than 20 years, we know what price and Quality buyer can sell well in market.the wholeseller have suitable profits

Q:Can we order many items and make combine shipment.
A:we can combine many items,and deliver by courier/sea/land/air etc. pack well.

Q:Can I order the cabinet/enclosure/box and the wiring material from you or other supplier,you make wiring and assembly for us ?
A:we have egineering, wiring and assembly team for low voltage/medium voltage/high voltage/DC control .can make drawing and diagram to confirmation and proceed the assembly.we have unite nation project in regular assembly.
Q:How can I make our own brand for my order
A:we supply OEM service if order quantity meet the OEM MOQ , contact to know the exactly quantity for your item

Q:What is the delivery if I make payment
A:Almost all items we keep in stock.and we have many order every day , We need 1-3 working days to packing and make delivery.OEM packing will be longer time.

Q:Can we visit your factory or office ?
A:we always welcome customer visit us, let me know the schedule, we will arrange.

[/fusion_tab]
