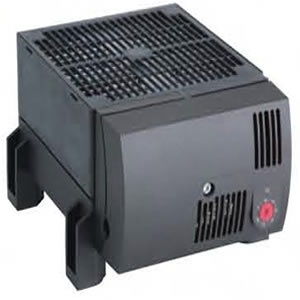

high-performance fan heater

Item : CR 030

▋ Compact design
▋ Double insulated
▋ Integrated thermostat or hygrostat

The compact high performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric / electronic components. The plastic enclosure provides double insulation and acts as protection against contact. The fan heater is available with integrated thermostat or pre-set hygrostat for temperature or humidity control. The CR 030 was designed as a stationary unit for the bottom of the enclosure. For wall fixing the fan heater CR 130 is recommended.

high-performance fan heater

The compact high performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric / electronic components. The plastic enclosure provides double insulation and acts as protection against contact. The fan heater is available with integrated thermostat or pre-set hygrostat for temperature or humidity control. The CR 030 was designed as a stationary unit for the bottom of the enclosure. For wall fixing the fan heater CR 130 is recommended.

Technical Data
Heating element high performance cartridge
Temperature safety cut-out to protect against overheating in case of case of fan failure,
automatic reset
Heater body extruded aluminium profile
Axial fan, ball bearing airflow 160m3/h, free flow
service life 50,000h at 25℃ (77°F)
Connection 2-pole max. 2.5mm2, clamping screw with strain relief,
torque 0.8Nm max.
Casing plastic according to UL94 V-0, black
Mounting screw fixing (M5)
Fitting position horizontal
Dimensions 168×145×100mm
Weight approx. 1.40kg
Operating* / Storage temperature -45 to +70℃ (-49 to +158°F)
Protection type / Protection class IP20 / Ⅱ(double insulated)
Note other heating capacities from 200W up available on request
*Operating temperature of heater with integrated hygrostat: 0 to +60℃ (+32 to +140°F)
Art. No. Model Operating voltage Heating capacity Setting range
03051.0-00 Fan Heater with thermostat 230VAC, 50/60Hz 950W 0 to +60℃
03051.0-02 Fan Heater with hygrostat 230VAC, 50/60Hz 950W 65% RH, factory-set
03059.9-00 Fan Heater with thermostat 120VAC, 50/60Hz 950W +32 to +140°F
*according to UL499 in combination with UL508A
