Item:RLS-36 SF6

36kv SF6 high voltage vacuum circuit breaker
     RLS-36 an indoor high-voltage SF6 load switch, an swi tchgear with the rated voltage of 36kV/40.5kV, adopted with SF6 gas as an arc-extinguishing and insulation medium, including the three contactors for switching-on and switching-off and to-ground, and is characteristic in its small volume, its convenient installation and operation and its the great adaptability with surroundings. RLS-36 of an indoor high-voltage SF6 load switch and RLS-36 of SF6 load switch plus fuse combination canfunctionto protect and controlthe electric equipmentsfor power supply andtransformer substations especially being suitable for ring net cabinet, cable branch cabinet and distribution switching substation.
RLS-36 of an indoor high-voltage SF6 load switch and RLS-36 load switch plusfuse combination are complied withthe standards of GB3804-1990, IEC60256-1,1997, GB16926, IEC60420 etc..

  • Service environment:
    a) Airtemperature Maximumtemperature: +40℃; Minimumtemperature:-5℃
    b) Humidity Monthly average humidity 95%; Daily average humidity 90%.
    c) Altitude above sea level Maximum installation altitude: 2500m
    d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
    e) Nofrequent violent shake

Main technical specifications:

 No

   Item

  Unit

 Parameter

  1

   Rated voltage

  kV

   36

 2

  Rated frequency

 Hz

    50/60

 3

  Rated current

  A

   630

 4

                                                  wet

 1min Power frequency withstand voltage

                                                  dry

   kV

 kV

  95

 110

 5

  Lightning impulse withstand voltage

   kV

  185/215

 6

  Rated short circuit breaking current (peak)

   kA

 50

  7

         Rated activeload and close circuit breaking current

   A

  50

 8

 Rated transferring current

  A

   1000

 9

  Rated short circuit making current (peak)

  kA

  50

 10

   Rated cable(line) charging breaking current

  A

  50 and 10

  11

  Cable charge breaking current in earthing fault

 A

   20

 12

 Rated withstand current (peak)

 kA

   50

 13

 Short time withstand current (2s)

     kA

   20

 14

  Mechanism life

 times

 2000

Note: For short circuit breaking and peak current isbased on Fuseplus combination.

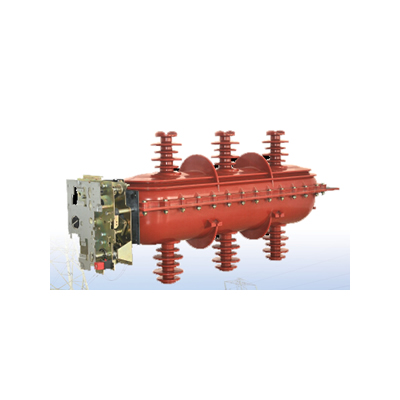

RLS-36 SF6 load break switch
