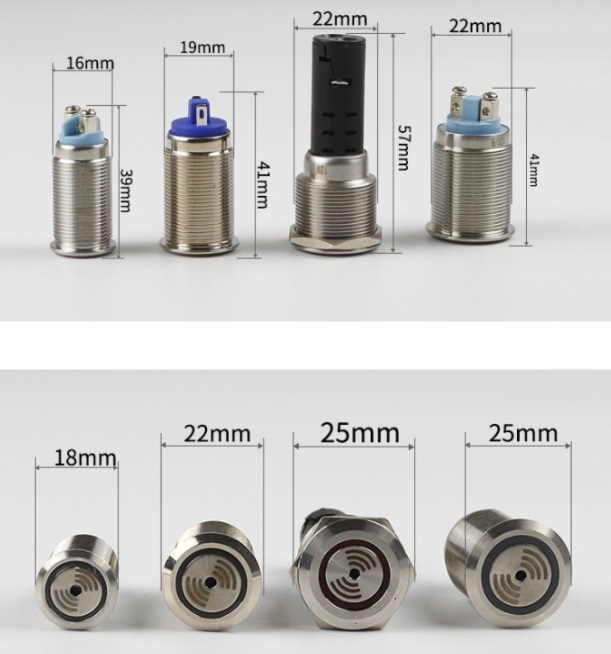

19mm metal buzzer ring LED illuminated 22mm metal buzzer 25mm metal buzzer

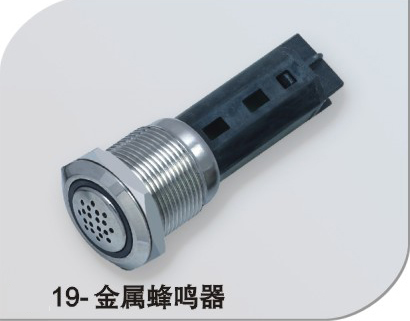

Item : 19mm Metal buzzer
Item : 19mm Metal buzzer
Material:ss304
Loadness:80-110 Db
Panel hole size : 19mm

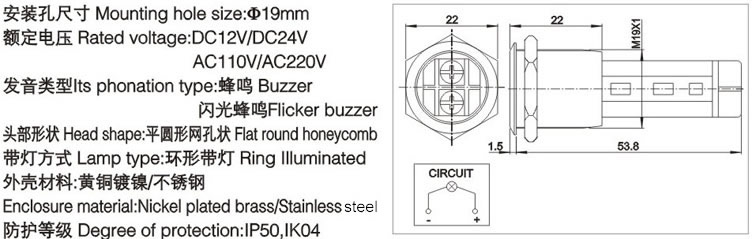

| Specifications | 19-E4 | |
| Tail configuration | Screw terminal | |
| Switch specifications | null | |
| Contact resistance | null | |
| Insulation resistance | null | |
| Dielectric intensity | 2000VAC | |
| Ambient temperature | -20℃~+55℃ | |
| Mechanical life | null | |
| Electrical life | null | |
| Panel thickness | 1~10mm | |
| Nut torque | 5~14Nm | |
| Operation pressure | null | |
| Operation stroke | null | |
| Protection level | IP50,IK04 | |
| Material | Contact | null |
| Button | Nickel plated brass/stainless steel | |
| Enclosure | Nickel plated brass/stainless steel | |
| Base | PA66 | |
| LED Parameter | LED type | Buzzer/Ficker buzzer |
| Rated voltage | 6V/12V/24V/110V/220V | |
| LED color | Red,Orange,Yellow,Green,Bule,White | |
| LED life | 40000hours | |

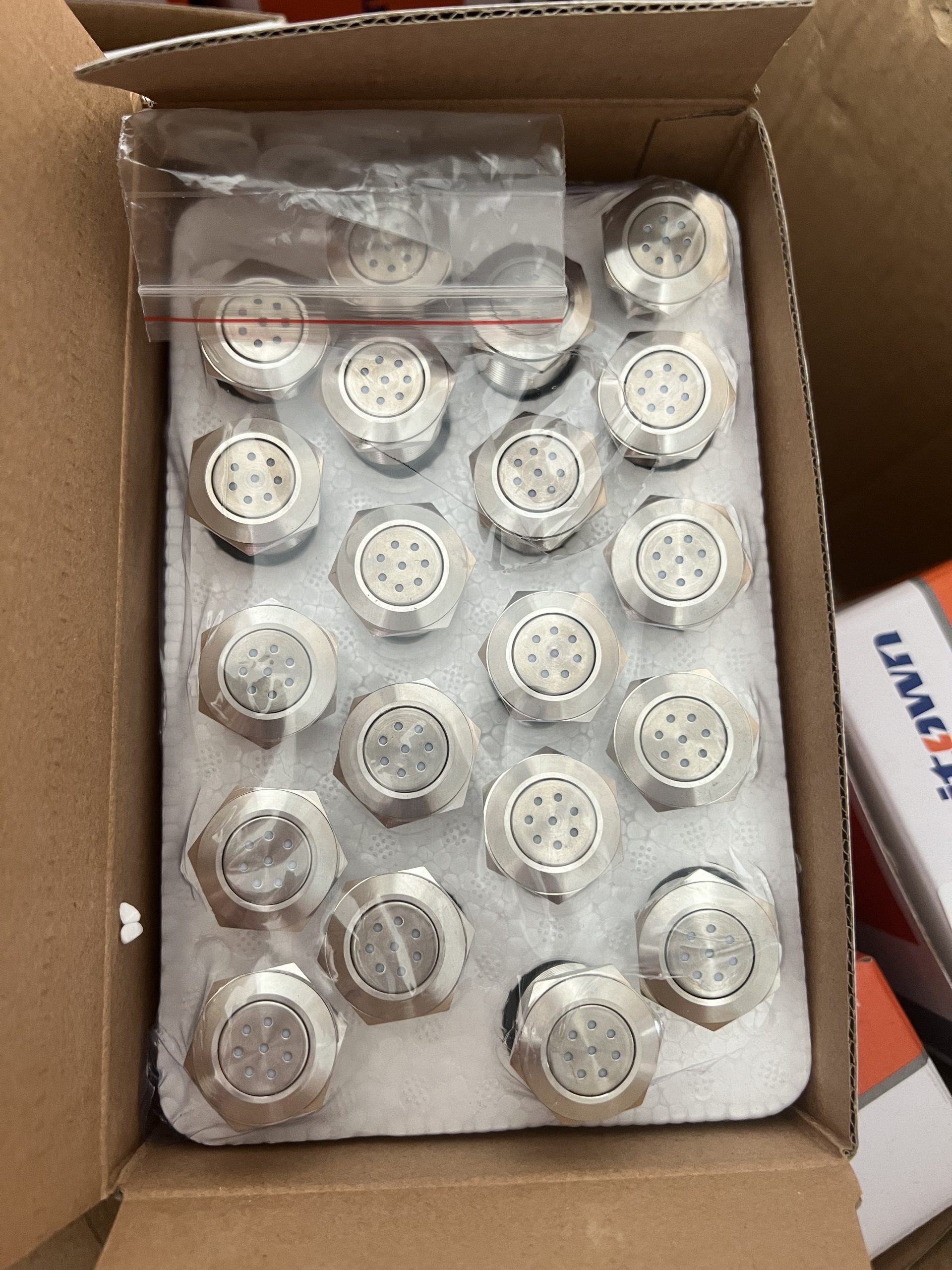

19mm buzzer packing box
19mm buzzers packing box
