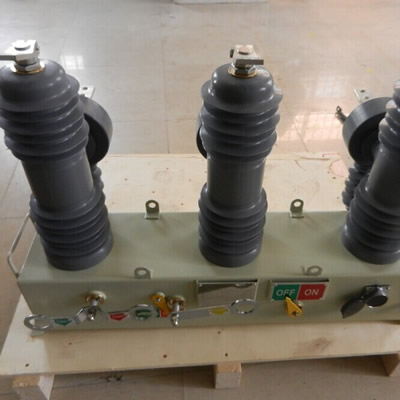

RCW12N type pole mounted auto recloser
The main difference between RCW38M and RCW38N
|Type||Close energy||Open energy||Mechanical life|
|RCW12M||By capacitor charging, fast within 1 S||Need By capacitor release||More than 60,000 times|
|RCW12N||By motor charging spring, long time 7S~15S||No need capacitor||10,000 times|
Rockwill Electric strives to bring our customers the latest technology and competitive pricing and best service for distribution automatic.
The RCW series automatic circuit reclosers can use on overhead distribution lines as well as distribution substation applications for all voltage classes 12kV at 50/60HZ power system. and its rated current can reach 1250A.
The RCW series automatic circuit reclosers integrates the functions of control, protection, measurement, communication, fault detection, on-line monitoring of closing or opening.
a) Air temperature: Maximum temperature: +85℃; Minimum temperature:-45℃
b) Humidity: Monthly average humidity 95%; Daily average humidity 90% .
c) Altitude above sea level: Maximum installation altitude:2500mor more higher.
d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
e) No frequent violent shake
With optional classes for rated current range:
For 12kV, with630A, 20kA Breaking capacity. 800A, 20kA capacity, and1250A, 25kA.
With optional classes for installation styles:
Single phase, vacuum recloser and Three phase, vacuum recloser.
With optional relay protection curves for user choice:
Ph.OC1: Current Protection
Ph.OC2: limit current protection
Ph.OC3: over-current protection
IDMTOC: inverse-time overcurrent protection
SEF: Sensitive earthing fault overcurrent protection
Recl.ACC: Inter-phase Closing acceleration protection
Manu.ACC: Inter-phase charging protection
Overload: Overload protection
NSPTOC1: some Inter-phase negative sequence overcurrent
NSPTOC2: Inter-phase negative sequence overcurrent protection, Sec.
PH.OV: over-voltage protection
PH.UV: Low voltage protection
Resi.OV: zero sequence overvoltage protection
Hi.Gas: heavy gas protection
Hi.Temp: High temperature protection
Com.Val: common values
More relay functions can be customized.
With optional choice by locally or remotely.
With optional communication protocols & I/O port for user choice:
RS-232 and RS-485 ports supporting.
DNP3.0 communication protocol support(*).
Modbus communication protocol is optional(*).
IEC 60870-5-101 communication protocol support.
IEC 60870-5-104 communication protocol support. (*).
The recloser can communicate through GPRS(Or GSM) modem with English or Chinese languege (*).With optional functions for user.
Rated currents, System phase current.
Rated voltages, System phase voltage& secondary low voltage power supply voltage.
Frenquency, power(kWh), reactive power(kVarh),power factor .
With optional reclosing interval for user pre-program:
Reclosing times setting support.
Dead time setting support.
With events recording function:
SOE 1000 operations record.
Fault record and normal operation record.
Note: (*) mean should customized by manufacturer if needed.
4. Recloser feature
4.1 Outline of recloser:
The RCW series vacuum recloser is mainly combined with integration terminal, current transformer, permanent magnetic actuator and its recloser controller.
4.2 The recloser tank feature:
The Vacuum recloser tanks are manufactured from 304 grade stainless steel and are powder coated
a light grey colour.
Whole recloser IP65 protection class, equipped with a auxiliary plug to connect with recloser controller by control cable, Diameter Max22mm,6 Mlength(8Mfor special). .
Its can performance serve more than 20 years long term under heavy duty circumstance.
4.3 The recloser vacuum embedded pole feature:
The recloser’s vacuum interrupter insert in an epoxy resin solid pole, and external coated with a high reliable, stable material:Fluorocarbon silicone rubber (γ-trifluoro propyl methyl polysiloxane)
With excellent electric insulation, weather resistance, ozone, biological inertia, can be stand under the long-term use in -55 ~ +200℃.
