Item:  RLS-12

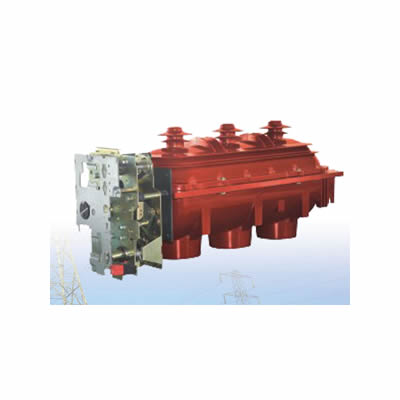

12kv 630a RLS-12 SF6 load break switch vcb
      RLS-12 an indoor high-voltage SF6 load switch, an switchgear wi ththe rated voltage of  12kV/24kV, adopted with SF6 gas as an arc-extinguishing and insulation medium, including the three contactors for switching-on and switching-off andto-ground, and is characteristic in its small volume, its convenient installation and operation and itsthe great adaptability with surroundings.
RLS-12 of an indoor high-voltage SF6 load switch and RLS-12D of SF6 load switch plus fuse combination canfunctionto protect and controlthe electric equipments for power supply and transformer substations especially being suitable for ring net cabinet, cable branch cabinet and distribution switching substation.
RLS-12 of an indoor high-voltage SF6 load switch and RLS-12D load switch plus fuse combination are complied withthe standards of GB3804-1990, IEC60256-1,1997, GB16926, IEC60420 etc..

Service environment:

  • a) Airtemperature
    Maximumtemperature: +40℃; Minimumtemperature:-5℃
    b) Humidity
    Monthly average humidity 95%; Daily average humidity 90%.
    c) Altitude above sea level
    Maximum installation altitude: 2500m
    d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
    e) Nofrequent violent shake
    Main technical specifications:






 Rated voltage




 Rated frequency




 Rated current





1min Power frequency  withstand voltage





 Lightning impulse withstand voltage




 Rated short circuit breaking current (peak)




   Rated activeload and close circuit breaking current




   Rated transferring current




   Rated short circuit making current (peak)




  Rated cable(line) charging breaking current


  50 and 10

 1 1

   Cable charge breaking current in earthing fault




 Rated withstand current (peak)




 Short time withstand current (2s)




            Mechanism life



Note: For short circuit breaking and peak current isbased on Fuseplus combination.

SF6 load break switch vcb
