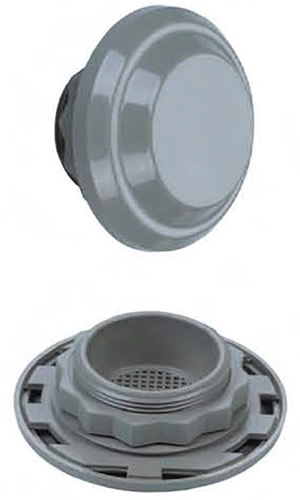

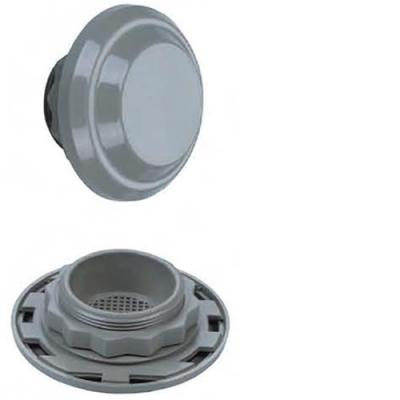

protection Pressure Compensation Device ip55

Item : DA 084

High degree of protection

▋ Easy to install

D 084 ip55 protection Pressure Compensation Device ip55 protection   A

It has become more and more important to provide a protected enclosure environment for valuable and crucial electrical and electronic components. In a tightly closed enclosure, pressure differentials can occur during extreme temperature variations, such as day/night operation. When this occurs, the risk of dust and humidity being absorbed into the control panel increases dramatically. The specially designed pressure compensation plug DA 084 permits a controlled change in pressure. It can be installed easily in any enclosure. Because of the pressure compensation plug’s high degree of protection (IP55), the protection type of the enclosure will not be affected.

Mounting PG 29 thread with union nut
Materialplastic according to UL94 V-0
Air interfaceapprox. 7cm²
DimensionsØ 65.5 x 30.5mm
Fitting positionvariable
Operating / Storage temperature -45 to +70°C (-49 to +158°F)



Art. No.ModelProtection type1 packing unitWeight (approx.)
08400.0-00without gasket IP452 pieces62g (31g/piece)
08400.0-04with gasketIP552 pieces62g (31g/piece)
