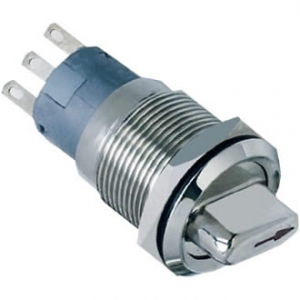

19mm metal push button switch

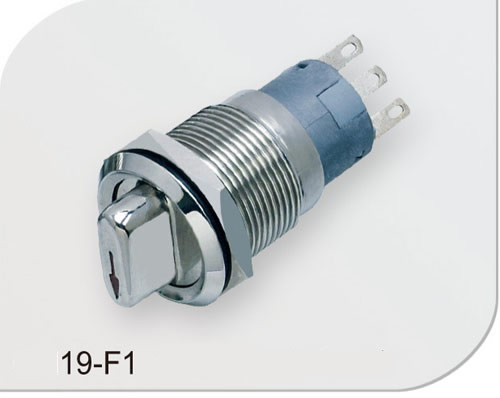

Item : 19-F1 metal push button switch
Item : 19-F1
ROHS compliant
3 years Quality Guarantee
Usage:Bank,food factory,slaughter,bakery,washing factory,chemistry factory,mine mill
We produce our own brand metal switch, and also agent of eao switch
we also can make 3NO3NC: THERE NEED ONE additional contact unit

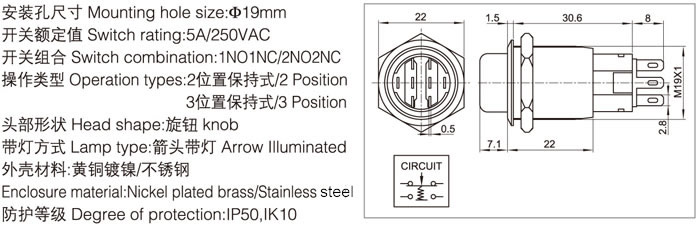

| Specifications | 19-F1 | |
| Tail configuration | Connection terminal(2.8*0.5) | |
| Switch specifications | 5A/250VAC | |
| Contact resistance | <50mΩ | |
| Insulation resistance | <1000MΩ | |
| Dielectric intensity | 2000VAC | |
| Ambient temperature | -20℃~+55℃ | |
| Mechanical life | 500,000 cycles | |
| Electrical life | 50,000 cycles | |
| Panel thickness | 1~10mm | |
| Nut torque | 5~14Nm | |
| Operation pressure | About 3~5N | |
| Operation stroke | About 2.5mm | |
| Protection level | IP50,IK10 | |
| Material | Contact | Silver alloy |
| Button | Nickel plated brass/stainless steel | |
| Enclosure | Nickel plated brass/stainless steel | |
| Base | PA66 | |

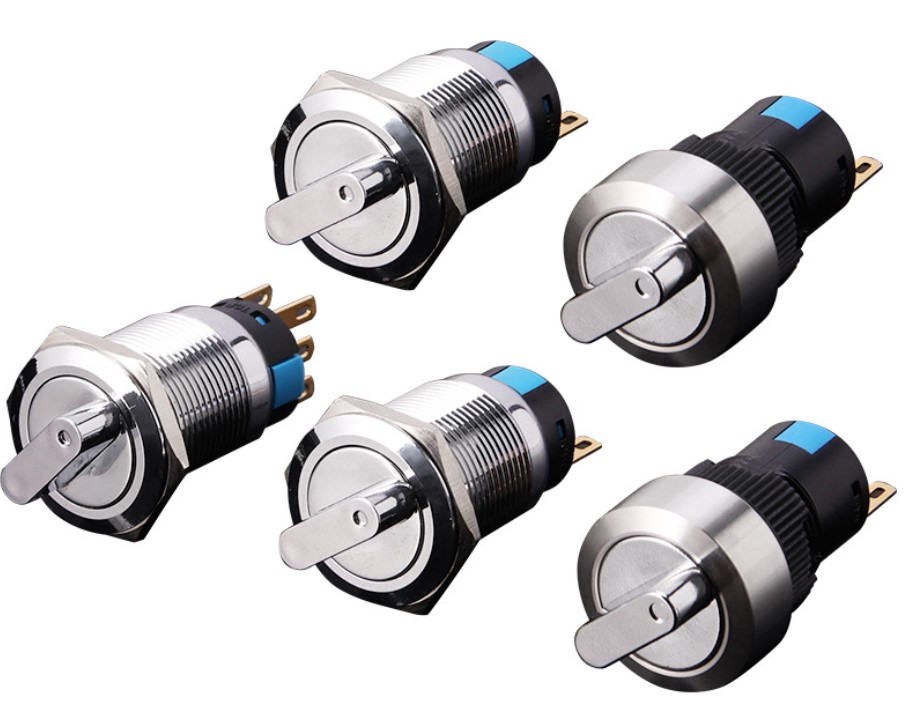

anti vandal selector switch ip67

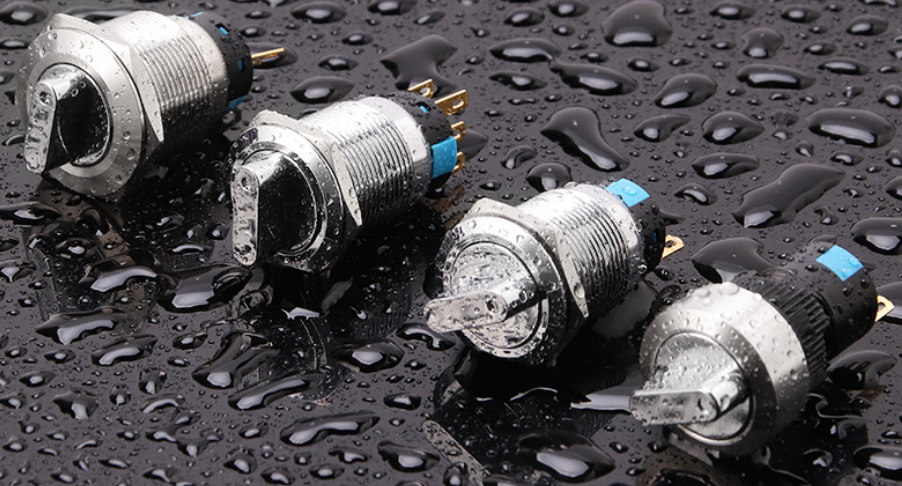

19MM SELECTOR SWITCH

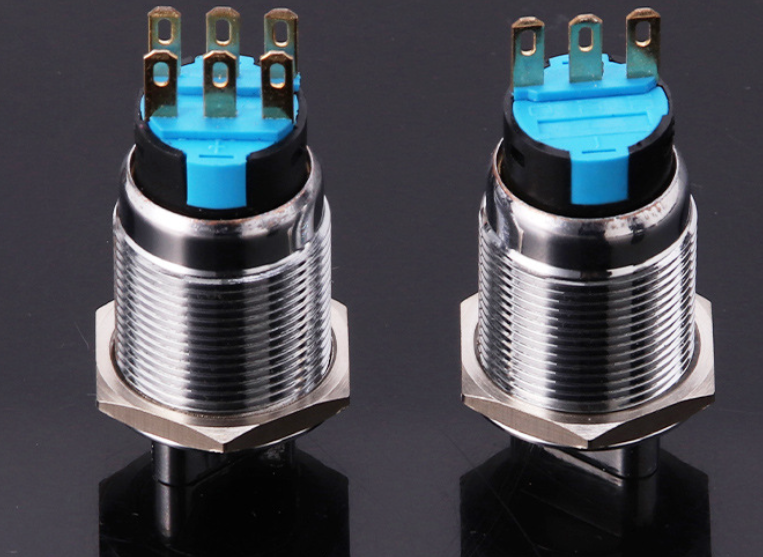

BOTTOM OF SELCTOR SWITCH

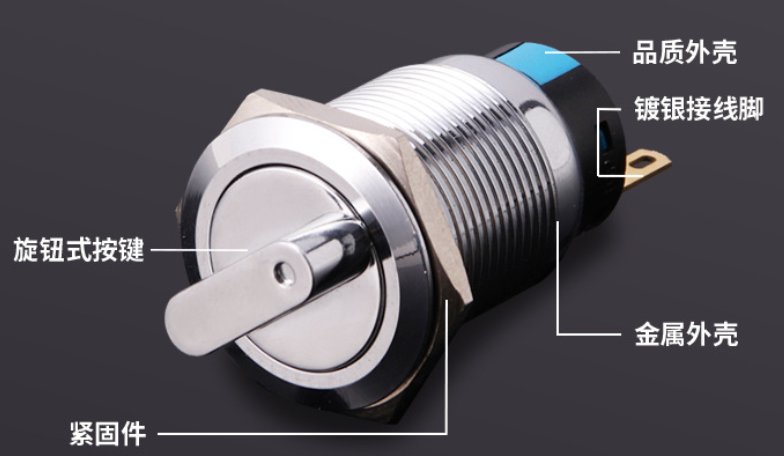

SELECTOR SWITCH SS304 IP67
Q:How to guarantee my order and payment:
A:Ezitown has Alibaba trade Assurance,100% refundable if any quality or delivery problem.
Q:How to return the goods if meet any problem
A:we have DHL and Fedex account for return goods.buyer no need to pay any shipping cost for returning. Can contact our salesman to operate.
Q:Why Ezitown price is competitive, and quality seems rather good ?
A:because we have been manufacturing more than 20 years, we know what price and Quality buyer can sell well in market.the wholeseller have suitable profits
Q:Can we order many items and make combine shipment.
A:we can combine many items,and deliver by courier/sea/land/air etc. pack well.
Q:Can I order the cabinet/enclosure/box and the wiring material from you or other supplier,you make wiring and assembly for us ?
A:we have egineering, wiring and assembly team for low voltage/medium voltage/high voltage/DC control .can make drawing and diagram to confirmation and proceed the assembly.we have unite nation project in regular assembly.
Q:How can I make our own brand for my order
A:we supply OEM service if order quantity meet the OEM MOQ , contact to know the exactly quantity for your item
Q:What is the delivery if I make payment
A:Almost all items we keep in stock.and we have many order every day , We need 1-3 working days to packing and make delivery.OEM packing will be longer time.
Q:Can we visit your factory or office ?A:we always welcome customer visit us, let me know the schedule, we will arrange.
