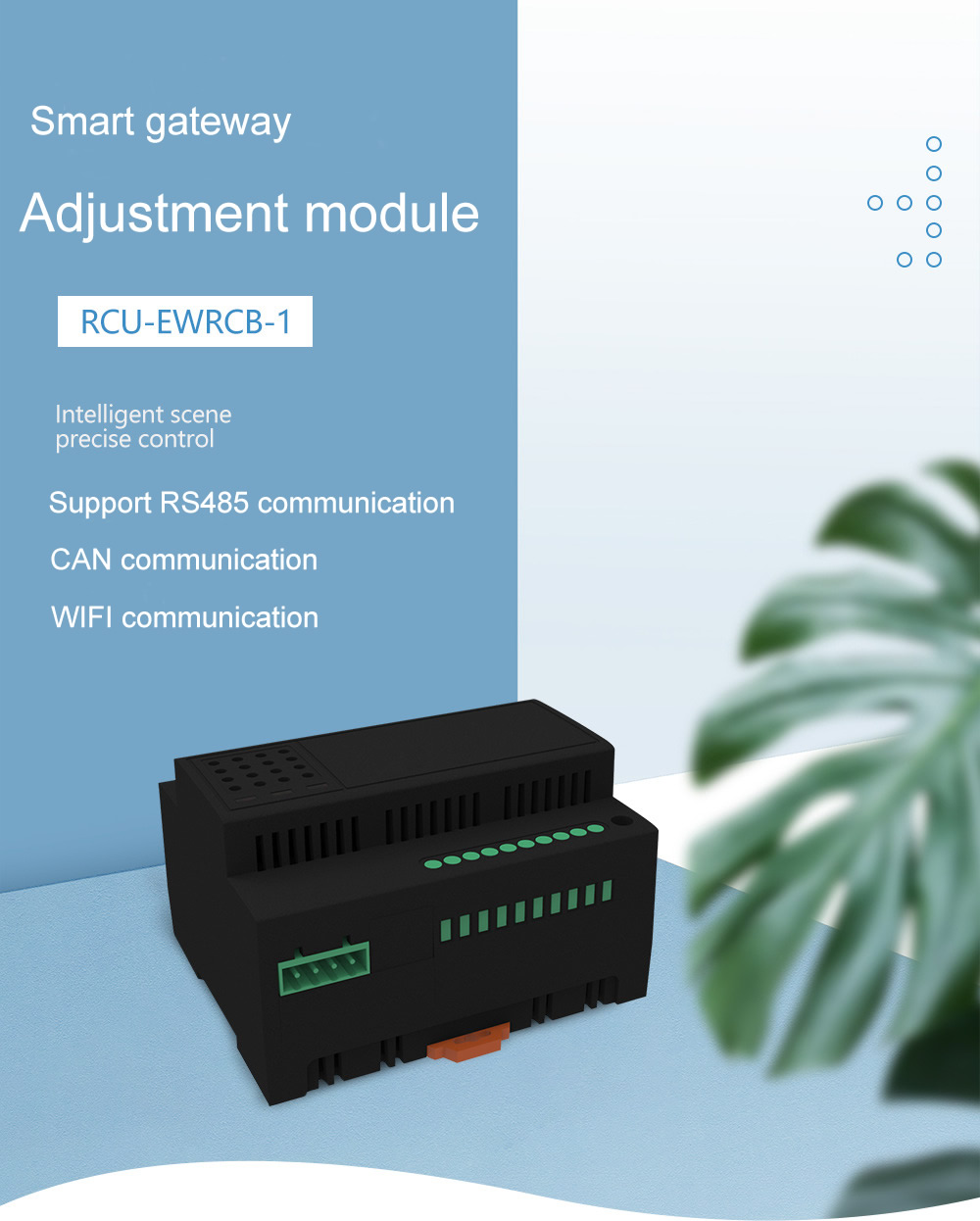

Ⅰ. Product Description

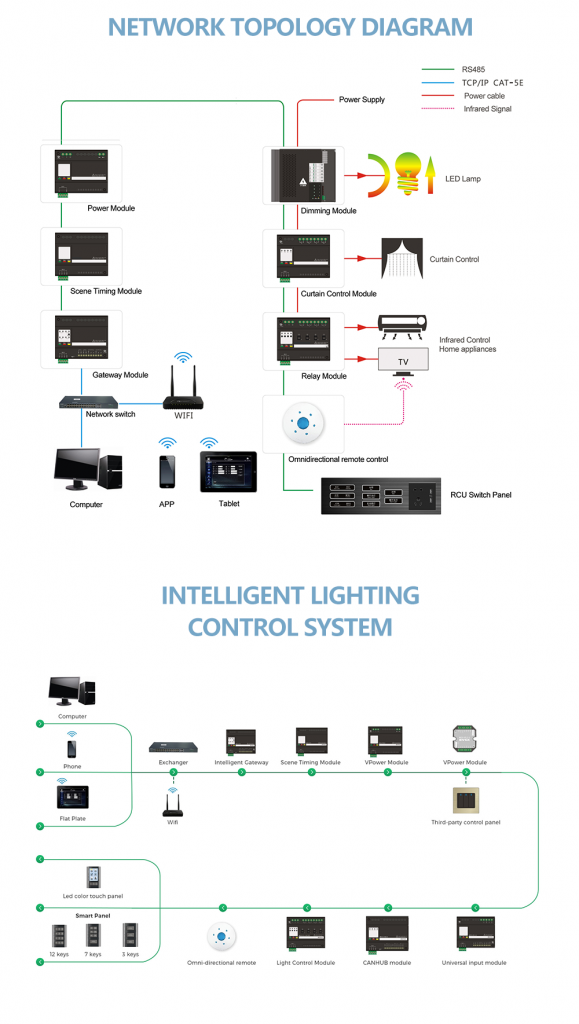

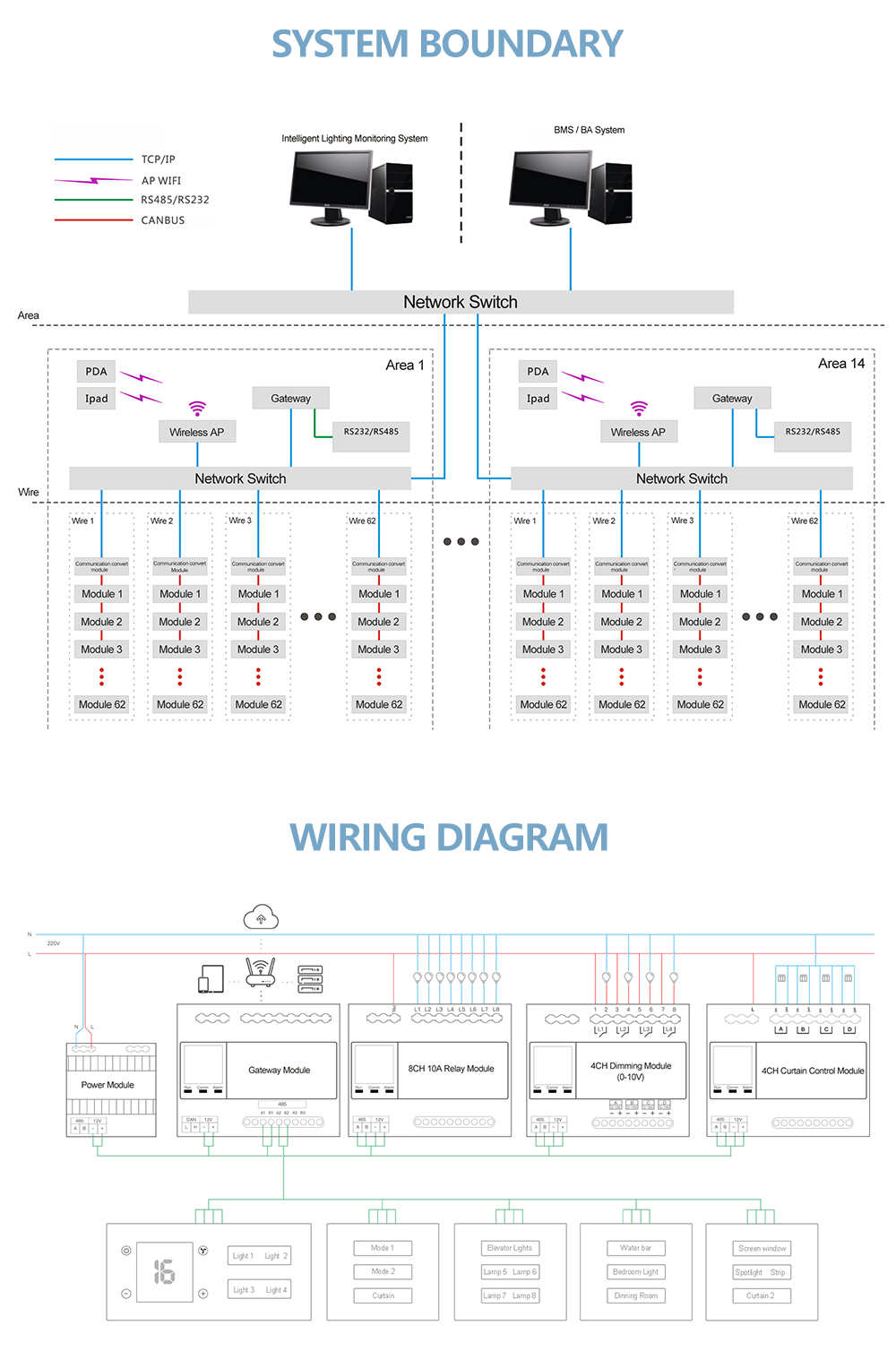

     Ezitown Gateway module is used for the communication and network management of the intelligent control system with 4 channels. It has the function of IP network, scene mode and timing, WIFI and processing RS232/485 data etc. It can communicate with the operation management platform through TCP/UDP. 4 channel modbus gateway module is generally used as main host for smart hotel and building automation control system, connecting with relay module/curtain module/dimming module to realize light control, curtain control and air conditioner control for smart home.



WiFi Smart Gateway Module

WiFi Smart Gateway Module

Ⅱ. Product Features – Modbus Gateway Module

● Scene Mode: support 32 Scene Definitions

● Timing:RTC real-time clock, support scene timing function.

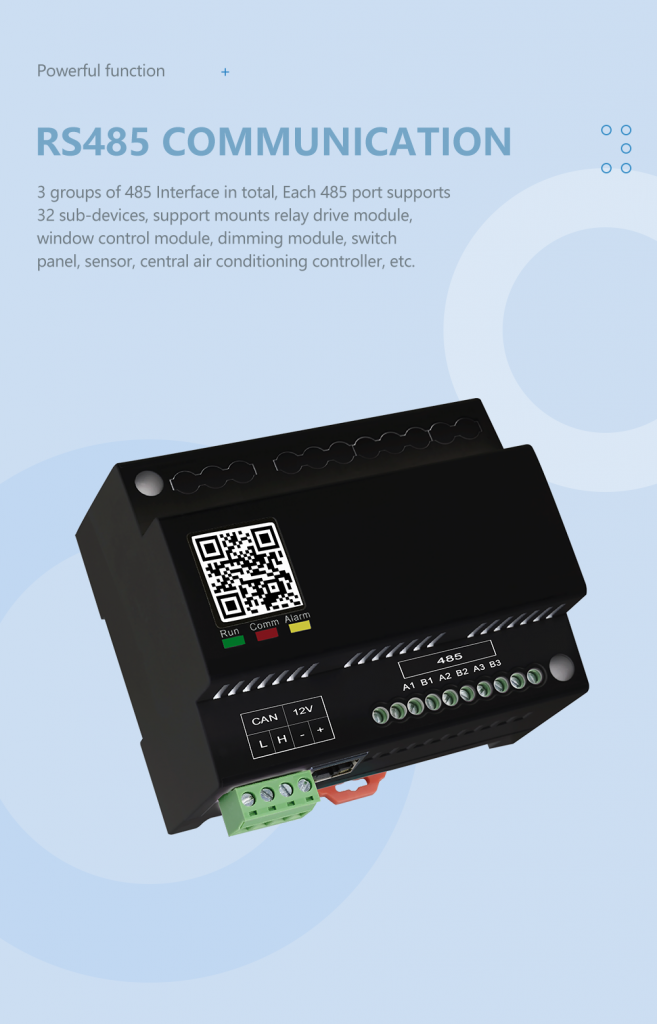

● RS485 communication: 3 groups of 485 Interface, each 485 port supports 32 sub-devices, support mounts relay drive module, window

 control module, dimming module, switch panel, sensor, central air conditioning controller, etc.

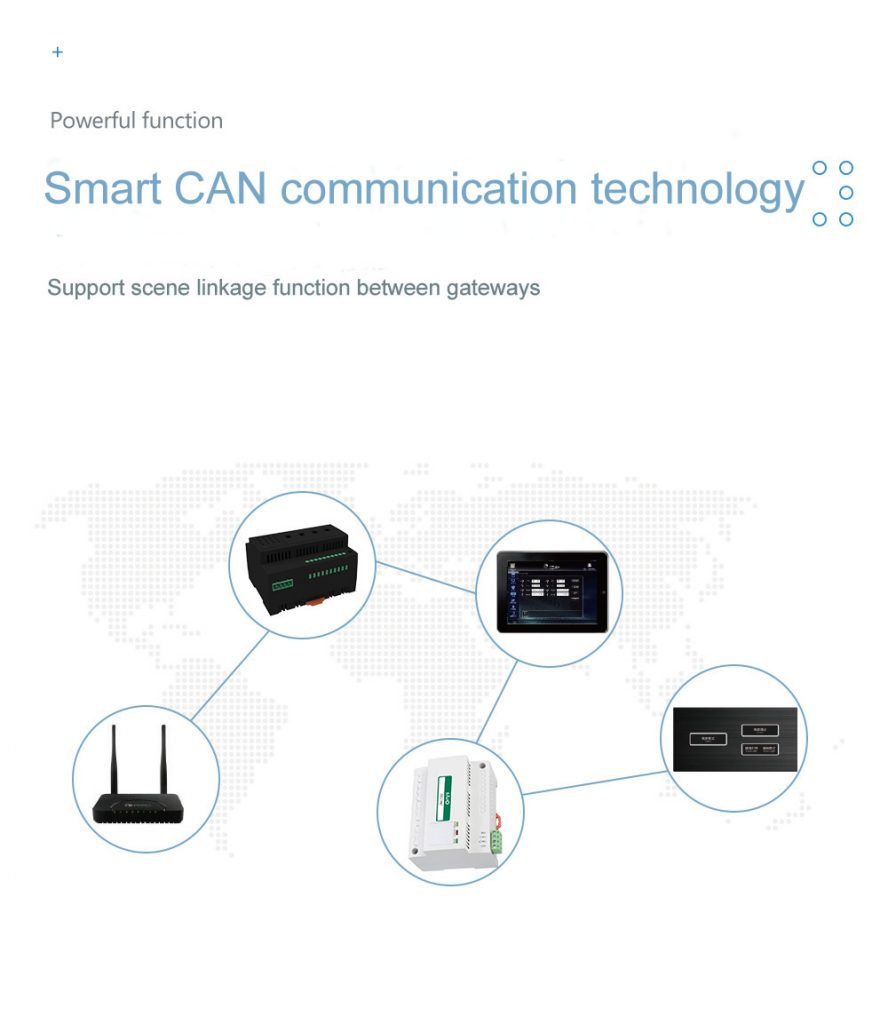

● CAN communication: support scene linkage function between gateways

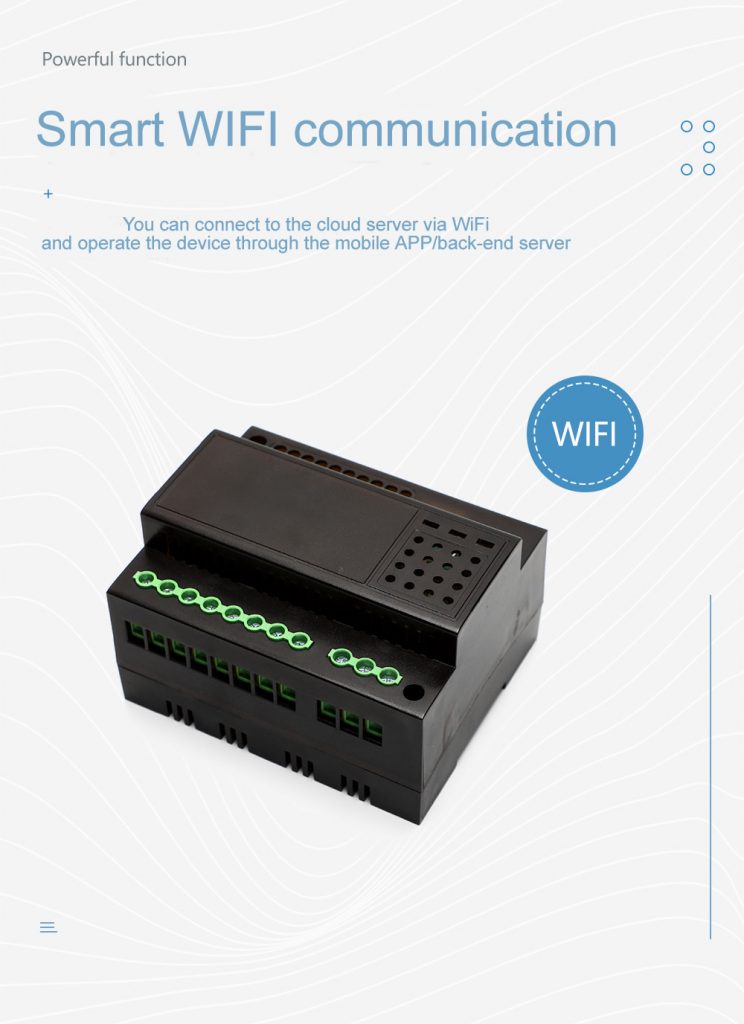

● WIFI communication: connect to the cloud server via wifi, and operate the device through the mobile app/backend server

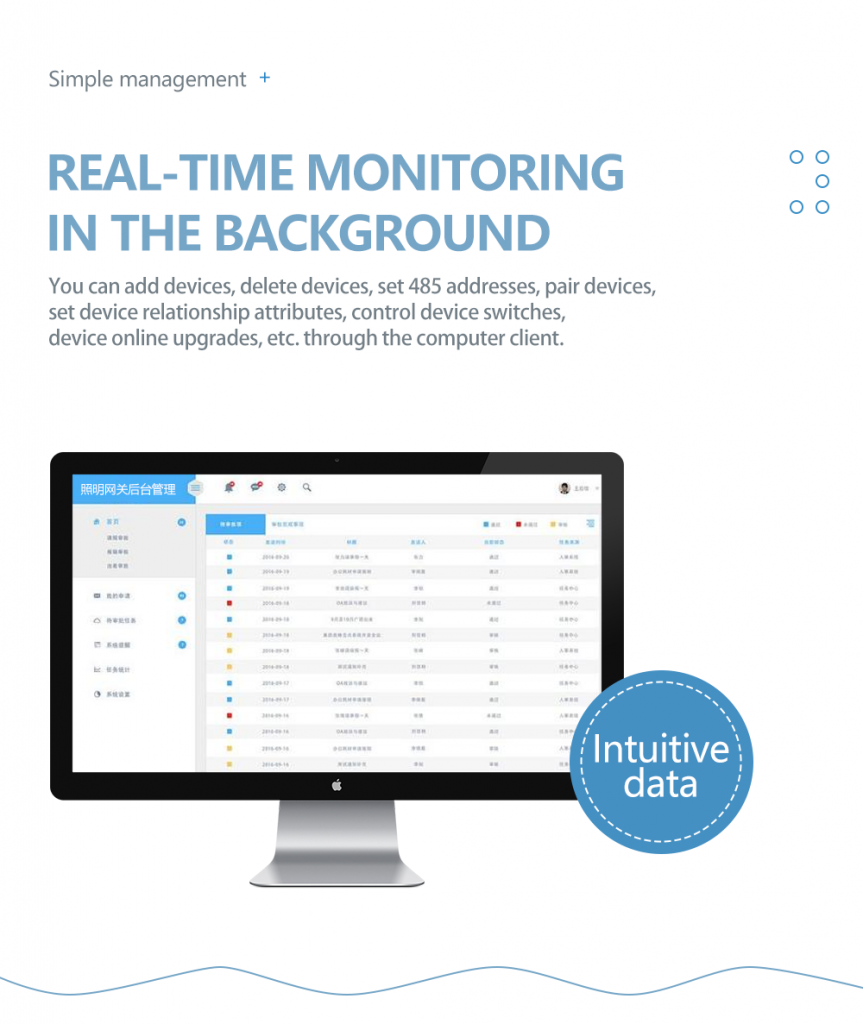

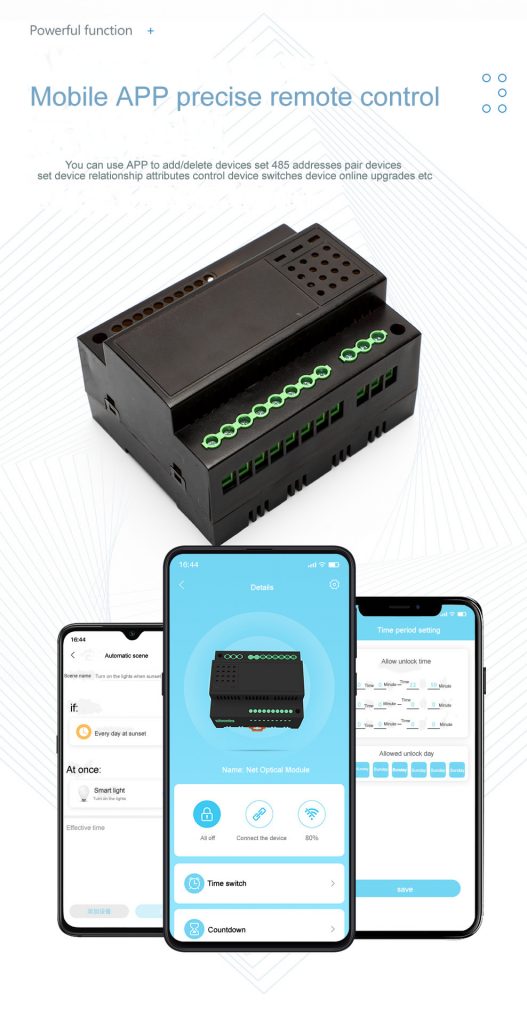

● Mobile APP: You can use APP to add/delete devices, set 485 addresses, device pairing, set device relationship attributes, control device

 switches, device online  upgrades, etc.

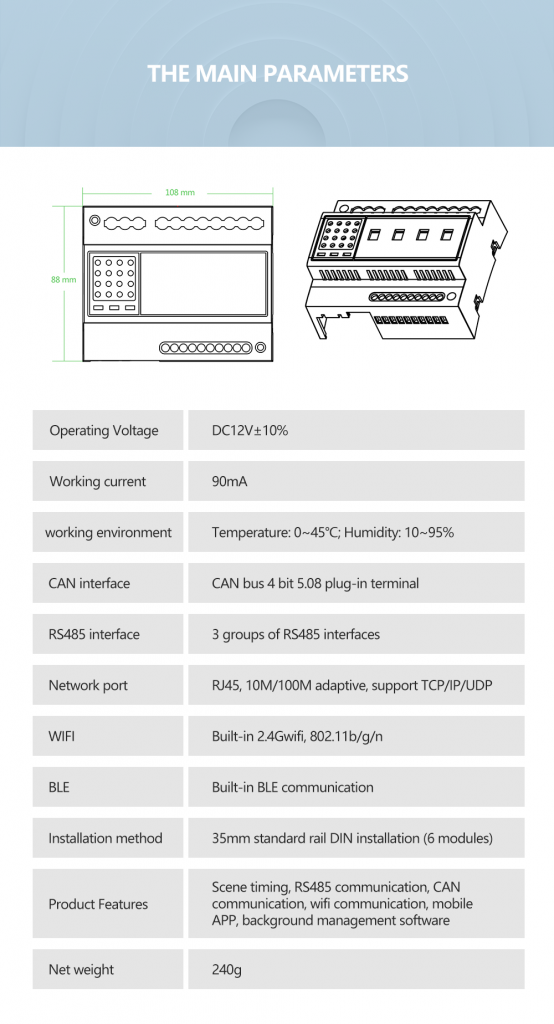

Size

108mm*88mm*66mm

Operating Voltage

12VDC±10%; 90mA

CAN interface

CAN bus 4 bit 5.08 plug-in Terminal

RS485 Interface

3 groups RS485 Interface

Network Port

RJ45, 10M/100M adaptive, support TCP/IP/UDP

Wifi

Build-in 2.4G wifi, 802.11 b/g/n

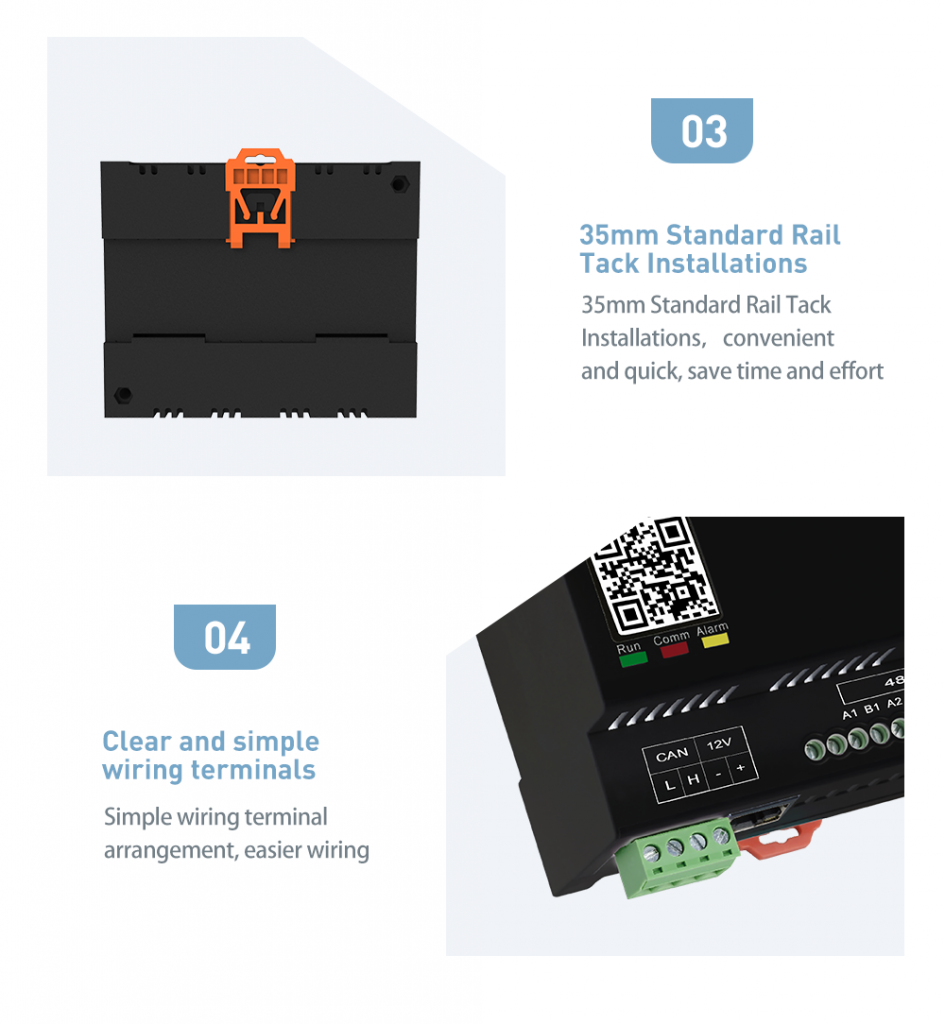

Installation method

35mm standard guide rail installation (6 modules)
