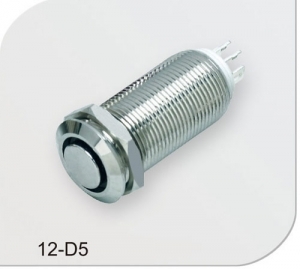

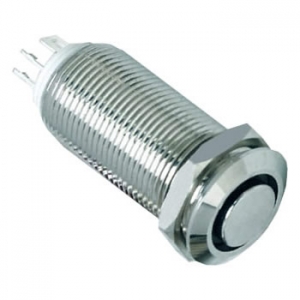

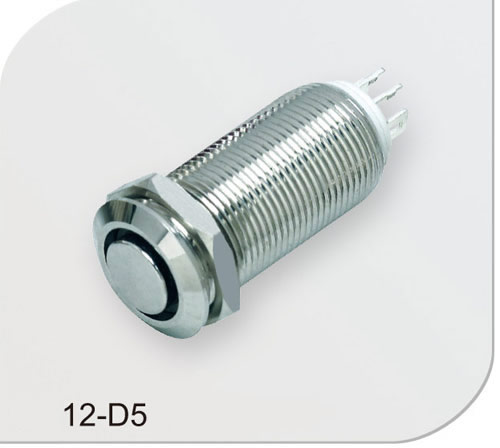

ring illuminated push button switch

Item : 12-D5



ring illuminated push button switch

Item : 12-D5

Details:

ROHS compliant

3 years Quality Guarantee

Usage:Bank,food factory,slaughter,bakery,washing factory,chemistry factory,mine

milland so on.

We produce our own brand metal switch, and also agent of eao switch

pushbutton switch,metal switch,anti vandal switch,vandal resistant switch

The screw thread we have M12X1 and M12X0.75  in option. please mention in order ,

otherwise we will give as ramdom .

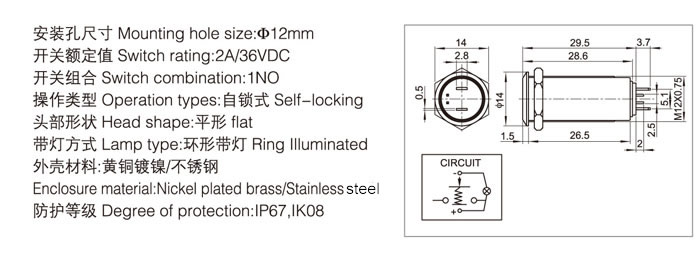

12-d5-button-push-switch-specification

Specifications12-D5
Tail configurationConnection terminal(2.8*0.5)
Switch specifications2A/36VDC
Contact resistance<50mΩ
Insulation resistance<1000MΩ
Dielectric intensity2000VAC
Ambient temperature-20℃~+55℃
Mechanical life500,000 cycles
Electrical life50,000 cycles
Panel thickness1~6mm
Nut torque5~14Nm
Operation pressureAbout 5N
Operation strokeAbout 2.0mm
Protection levelIP65,IK08
MaterialContactSilver alloy
ButtonNickel plated brass/stainless steel
EnclosureNickel plated brass/stainless steel
BasePA66
LED Parameter LED typeRing llluminated(LED)
Rated voltage6V/12V/24V/110V/220V
LED colorRed,Orange,Yellow,Green,Bule,White
LED life40000hours



Q:How to guarantee my order and payment:
A:Ezitown has Alibaba trade Assurance,100% refundable if any quality or delivery problem.

Q:How to return the goods if meet any problem

A:we have DHL and Fedex account for return goods.buyer no need to pay any shipping cost for returning. Can contact our salesman to operate.

Q:Why Ezitown price is competitive, and quality seems rather good ?

A:because we have been manufacturing more than 20 years, we know what price and Quality buyer can sell well in market.the wholeseller have suitable profits

Q:Can we order many items and make combine shipment.

A:we can combine many items,and deliver by courier/sea/land/air etc. pack well.

Q:Can I order the cabinet/enclosure/box and the wiring material from you or other supplier,you make wiring and assembly for us ?

A:we have egineering, wiring and assembly team for low voltage/medium voltage/high voltage/DC control .can make drawing and diagram to confirmation and proceed the assembly.we have unite nation project in regular assembly.

Q:How can I make our own brand for my order

A:we supply OEM service if order quantity meet the OEM MOQ , contact to know the exactly quantity for your item

Q:What is the delivery if I make payment

A:Almost all items we keep in stock.and we have many order every day , We need 1-3 working days to packing and make delivery.OEM packing will be longer time.

Q:Can we visit your factory or office ?A:we always welcome customer visit us, let me know the schedule, we will arrange.
